Heavy Duty V-Belt Drive Pulley

for 4L, A, Ax and 5L, B, BX Belts, 10.75" OD, for 1-1/8" Shaft

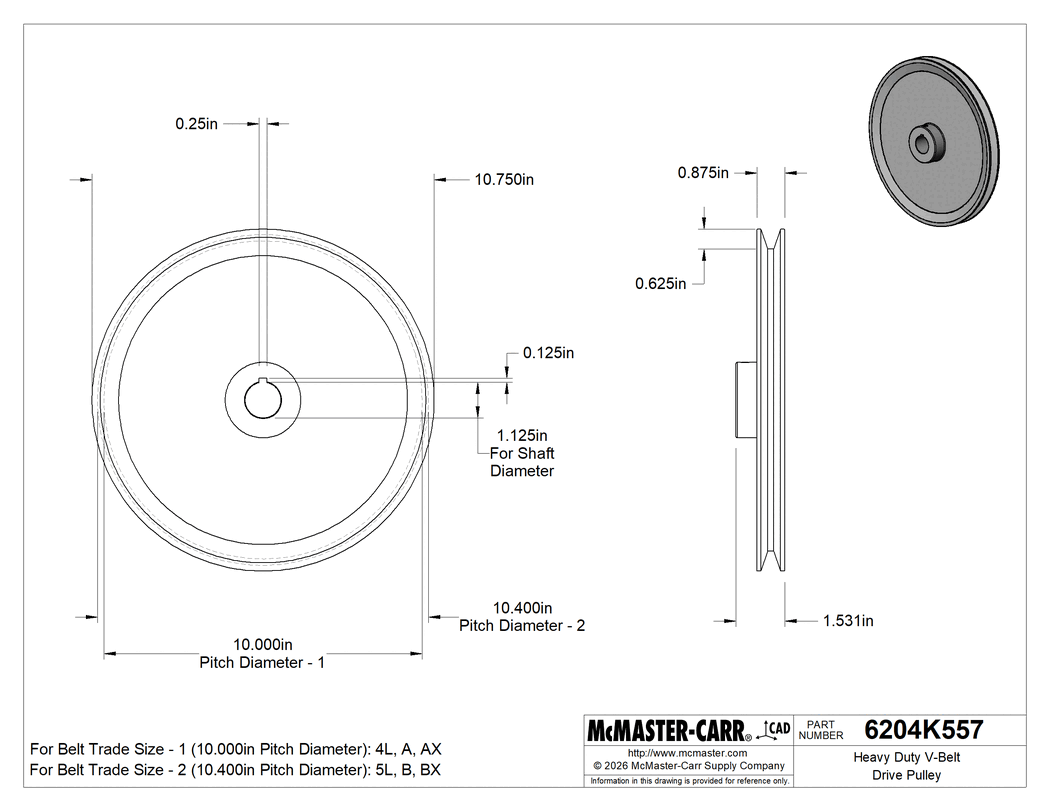

Technical Drawing of Heavy Duty V-Belt Drive Pulley, for 4L, A, Ax and 5L, B, BX Belts, 10.75" OD, for 1-1/8" Shaft.

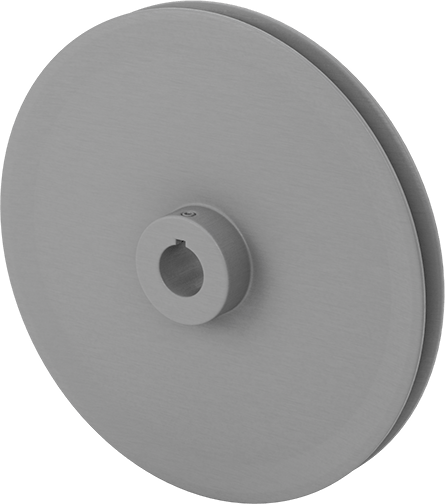

Image of Product. Back orientation. Heavy Duty V-Belt Drive Pulley, for 4L, A, Ax and 5L, B, BX Belts, 10.75" OD, for 1-1/8" Shaft.

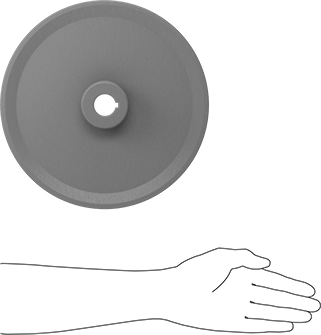

Image of Product. Side1 orientation. Contains SizingReference. Heavy Duty V-Belt Drive Pulley, for 4L, A, Ax and 5L, B, BX Belts, 10.75" OD, for 1-1/8" Shaft.

2-D PDF

000000 each

6204K557

In stock

6204K557

000000 each

QuantityEach

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

OD	10.75"
For Shaft Diameter	1 1/8"
Pitch Dia. (For Belt Trade Size)	10" (4L, A, AX), 10.4" (5L, B, BX)
Width	7/8"
Overall Width	1 17/32"
Groove Depth	5/8"
Keyway
Width	1/4"
Depth	1/8"
Material	Cast Iron
Body Type	Solid
Includes	One Set Screw
Bore Type	Finished
For Belt Type	V
For Shaft Type	Keyed
For V-Belt Type	Standard, Cogged
ID	1 1/8"
Number of Grooves	1
Pulley Type	Drive
Shaft Mount Type	Set Screw
Country of Origin	China
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848350.8030
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

Drive V-belts without slipping. These cast iron pulleys are compatible with standard 4L/A/AX or 5L/B/BX belt sections, so you can match them to your existing belt. Set screws lock each pulley to the shaft to prevent rotation under load.
