    Dry-Running MDS-Filled Nylon Sleeve Bearing

    for 1/2" Shaft and 5/8" Housing ID, 1/4" Long, 7/8" Flange OD

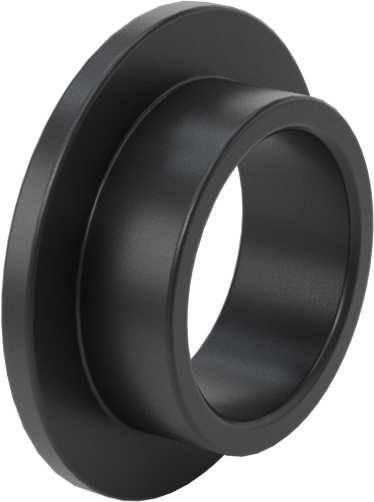

    Image of Product. Front orientation. Dry-Running MDS-Filled Nylon Sleeve Bearing, for 1/2" Shaft and 5/8" Housing ID, 1/4" Long, 7/8" Flange OD.

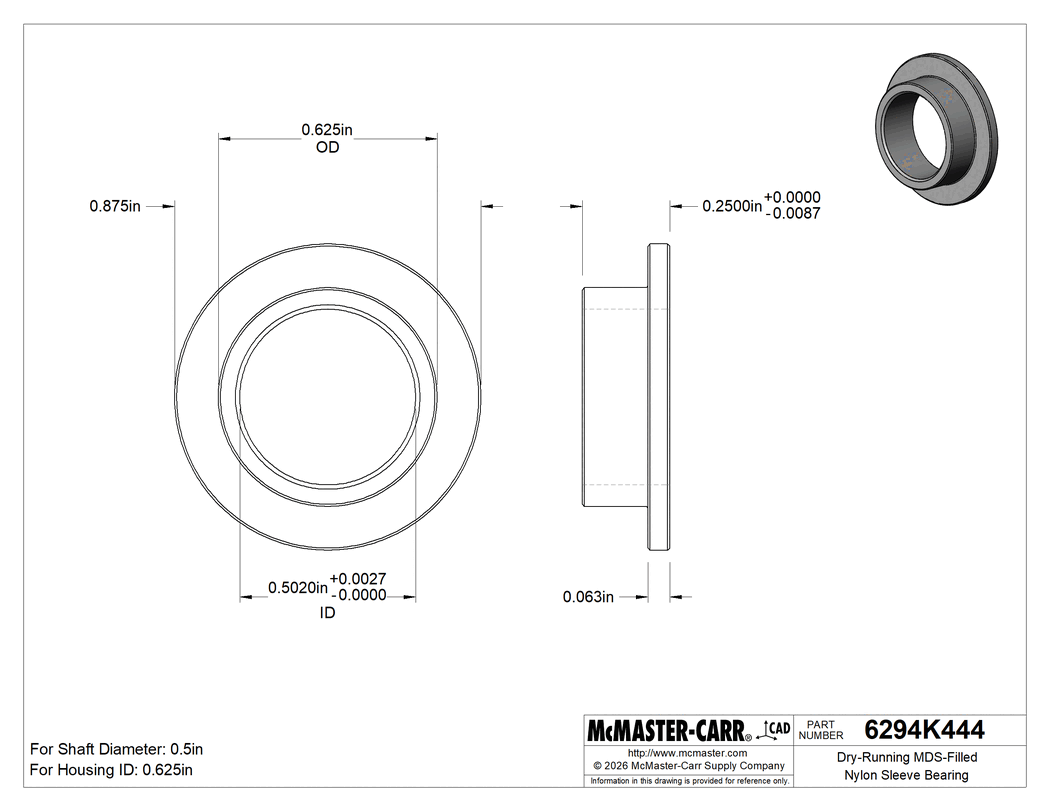

    Technical Drawing of Dry-Running MDS-Filled Nylon Sleeve Bearing, for 1/2" Shaft and 5/8" Housing ID, 1/4" Long, 7/8" Flange OD.
    Image of Product. Back orientation. Dry-Running MDS-Filled Nylon Sleeve Bearing, for 1/2" Shaft and 5/8" Housing ID, 1/4" Long, 7/8" Flange OD.
    Image of Product. Side1 orientation. Contains SizingReference. Dry-Running MDS-Filled Nylon Sleeve Bearing, for 1/2" Shaft and 5/8" Housing ID, 1/4" Long, 7/8" Flange OD.
    2-D PDF
    00000 each
    6294K444
    In stock
    6294K444
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Lubrication

    Not Required

    Performance

    Dry Running

    Filler Material

    Molybdenum Disulfide

    Material

    Nylon

    For Shaft Diameter

    1/2"

    For Housing ID

    5/8"

    Length

    1/4"

    Length Tolerance

    -0.0087" to 0"

    Flange OD

    7/8"

    Flange Thickness

    1/16"

    Dynamic Radial Load Capacity @ Speed

    27 lb. @ 120 rpm

    Dynamic Thrust Load Capacity @ Speed

    50 lb. @ 120 rpm

    Color

    Black

    Temperature Range

    -40° F to 170° F

    Bearing Type

    Plain

    For Load Direction

    Combined Radial and Thrust

    For Shaft Type

    Round

    ID

    0.502"

    ID Tolerance

    0" to 0.0027"

    OD

    0.625"

    OD Minimum Tolerance

    Not Rated

    OD Maximum Tolerance

    Not Rated

    P Max

    2,900 psi

    Plain Bearing Type

    Flanged Sleeve

    PV Max

    3,400

    Shaft Mount Type

    Slip Fit

    System of Measurement

    Inch

    V Max

    110 sfpm

    Country of Origin

    Germany

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848330.8090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Made of naturally slippery plastic so you’ll never have to add lubricant. They’re ideal for clean environments where you need to prevent oil drips or graphite flakes. Compared to metal bearings, they are lighter and will never rust.

    Flanged sleeve bearings combine a sleeve and thrust bearing in one. The flange supports thrust loads and prevents the bearing from being pushed out of place. The sleeve is the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.

    MDS-Filled Nylon—A step up from standard nylon bearings. Upgraded with fine particles of molybdenum disulfide (MDS), these bearings have extra lubricity and wear resistance. However, they’re still nylon, which will swell and weaken when exposed to moisture.
