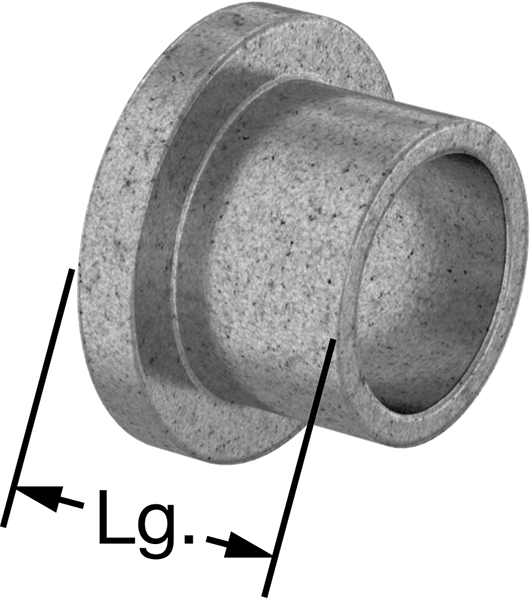

Oil-Embedded 841 Bronze Flanged Sleeve Bearing
for 1/2" Shaft Diameter and 5/8" Housing ID, 1/2" Long, 1/8" Flange
Lubrication | Lubricated |
Performance | Corrosion Resistant |
Material | 841 Bearing Bronze |
For Shaft Diameter | 1/2" |
For Housing ID | 5/8" |
Length | 1/2" |
Length Tolerance | -0.005" to 0.005" |
Flange OD | 7/8" |
Flange Thickness | 1/8" |
Flange Thickness Tolerance | -0.0025" to 0.0025" |
Dynamic Radial Load Capacity @ Speed | 500 lb. @ 120 rpm |
Dynamic Thrust Load Capacity @ Speed | 730 lb. @ 120 rpm |
Base Oil | Synthetic Oil |
Temperature Range | -35° F to 300° F |
Bearing Type | Plain |
For Load Direction | Combined Radial and Thrust |
For Shaft Type | Round |
ID | 0.501" |
ID Tolerance | 0" to 0.001" |
Lubricant | SAE 30 Oil |
Lubrication Method | Embedded |
OD | 0.627" |
OD Tolerance | 0" to 0.001" |
P Max | 2,000 psi |
Plain Bearing Type | Flanged Sleeve |
PV Max | 50,000 |
Shaft Mount Type | Slip Fit |
System of Measurement | Inch |
V Max | 1,200 sfpm |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848330.8090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Install and forget these self-lubricating bearings. All are made from porous metal and saturated with oil to reduce maintenance and downtime. A good all-around choice, they are used in everything from palm-sized fans in electronics to tire-sized pulleys. Although these bearings will work in most conditions, oil may drip away if temperatures get too high. Consider a graphite-lubricated bearing for higher temperatures or places where you can’t afford the mess. All are fabricated, lubricated, and inspected in the U.S.
Flanged sleeve bearings combine a sleeve and thrust bearing in one. The flange supports thrust loads and prevents the bearing from being pushed out of place. The sleeve is the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.
841 Bearing Bronze—A classic choice for a starter pick. Also known as SAE 841 bearings.
Synthetic Oil Base—A high-quality lubricant makes all the difference. Synthetic oil is less sensitive to temperature changes than mineral oil, so it won't get runny and leak away at higher temperatures.
Secure
Align and center
Reduce friction

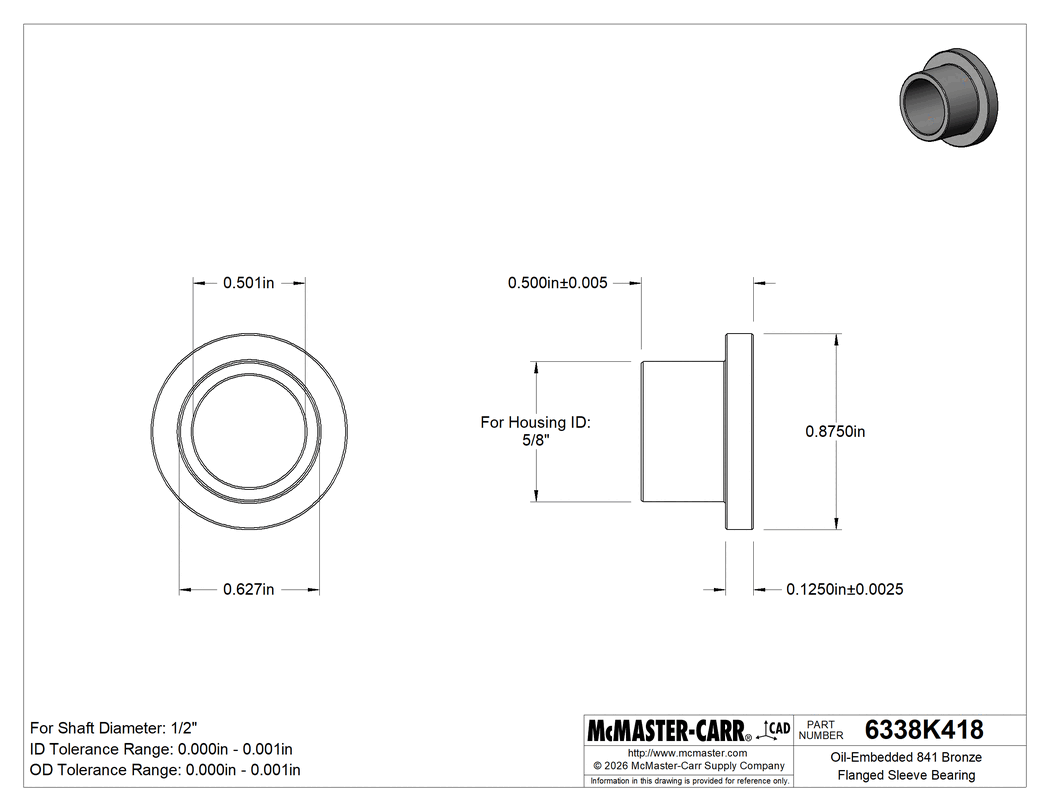

The information in this 3-D model is provided for reference only.
