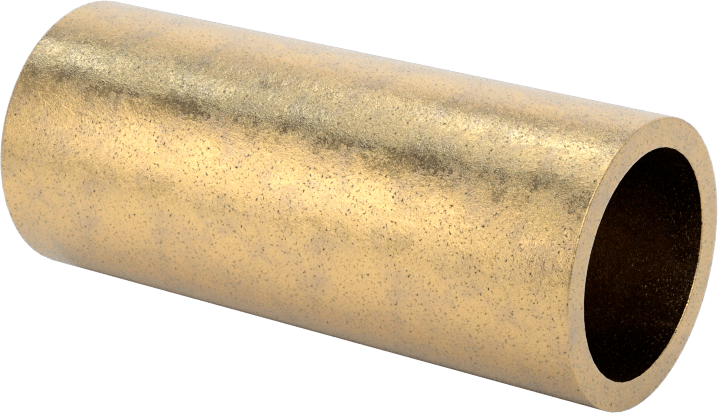

Oil-Embedded 841 Bronze Sleeve Bearing

for 1/2" Shaft Diameter and 5/8" Housing ID, 1-1/2" Long

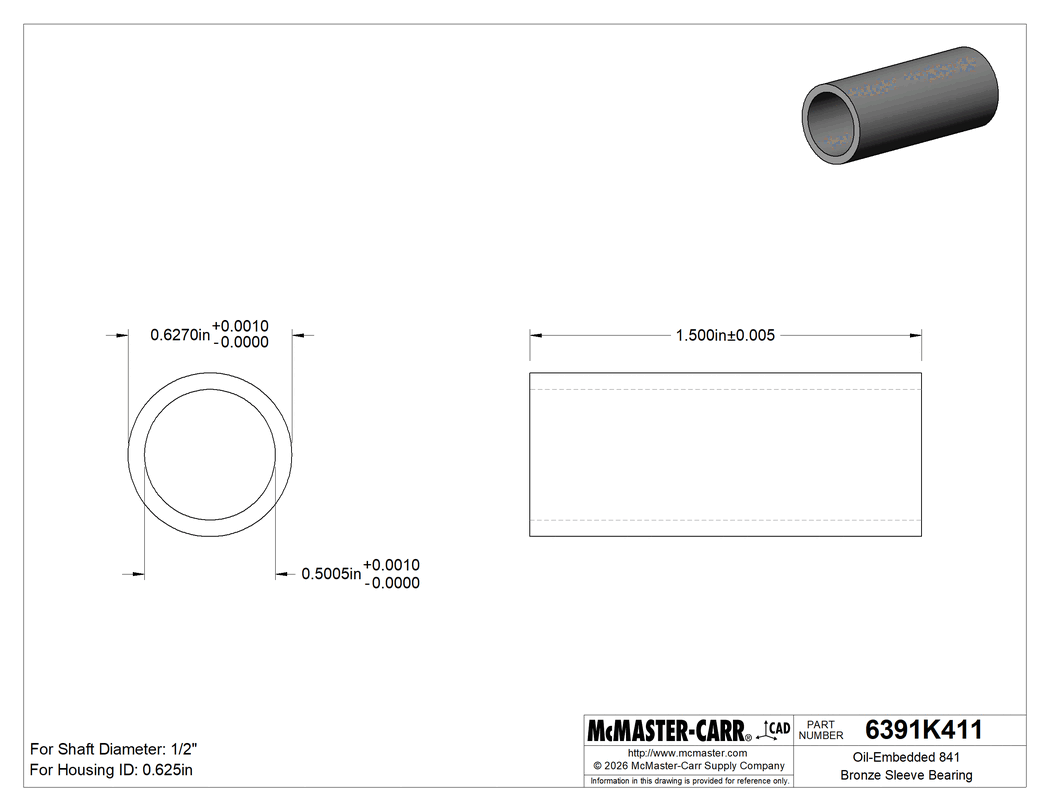

Technical Drawing of Oil-Embedded 841 Bronze Sleeve Bearing, for 1/2" Shaft Diameter and 5/8" Housing ID, 1-1/2" Long.

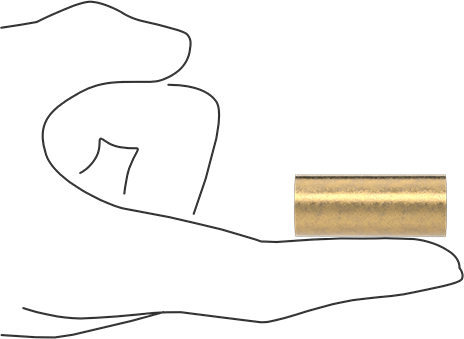

Image of Product. Side1 orientation. Contains SizingReference. Oil-Embedded 841 Bronze Sleeve Bearing, for 1/2" Shaft Diameter and 5/8" Housing ID, 1-1/2" Long.

2-D PDF

00000 each

6391K411

In stock

6391K411

00000 each

QuantityEach

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Lubrication	Lubricated
Performance	Corrosion Resistant
Material	841 Bearing Bronze
For Shaft Diameter	1/2"
For Housing ID	5/8"
Length	1 1/2"
Length Tolerance	-0.005" to 0.005"
Dynamic Radial Load Capacity @ Speed	1,500 lb. @ 120 rpm
Base Oil	Synthetic Oil
Temperature Range	-35° F to 300° F
Bearing Type	Plain
For Load Direction	Radial
For Shaft Type	Round
ID	0.5005"
ID Tolerance	0" to 0.001"
Lubricant	SAE 30 Oil
Lubrication Method	Embedded
OD	0.627"
OD Tolerance	0" to 0.001"
P Max	2,000 psi
Plain Bearing Type	Sleeve
PV Max	50,000
Shaft Mount Type	Slip Fit
System of Measurement	Inch
V Max	1,200 sfpm
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848330.8090
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Install and forget these self-lubricating bearings. All are made from porous metal and saturated with oil to reduce maintenance and downtime. A good all-around choice, they are used in everything from palm-sized fans in electronics to tire-sized pulleys. Although these bearings will work in most conditions, oil may drip away if temperatures get too high. Consider a graphite-lubricated bearing for higher temperatures or places where you can’t afford the mess. All are fabricated, lubricated, and inspected in the U.S.

With no moving parts, sleeve bearings are the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.

841 Bearing Bronze—A classic choice for a starter pick. Also known as SAE 841 bearings.

Synthetic Oil Base—A high-quality lubricant makes all the difference. Synthetic oil is less sensitive to temperature changes than mineral oil, so it won't get runny and leak away at higher temperatures.
