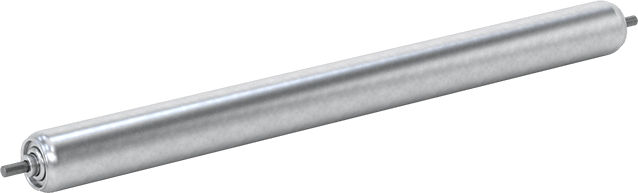

Small-Diameter Conveyor Roller
1-3/8" Diameter, Galvanized Steel, for 17" Between Frame Width

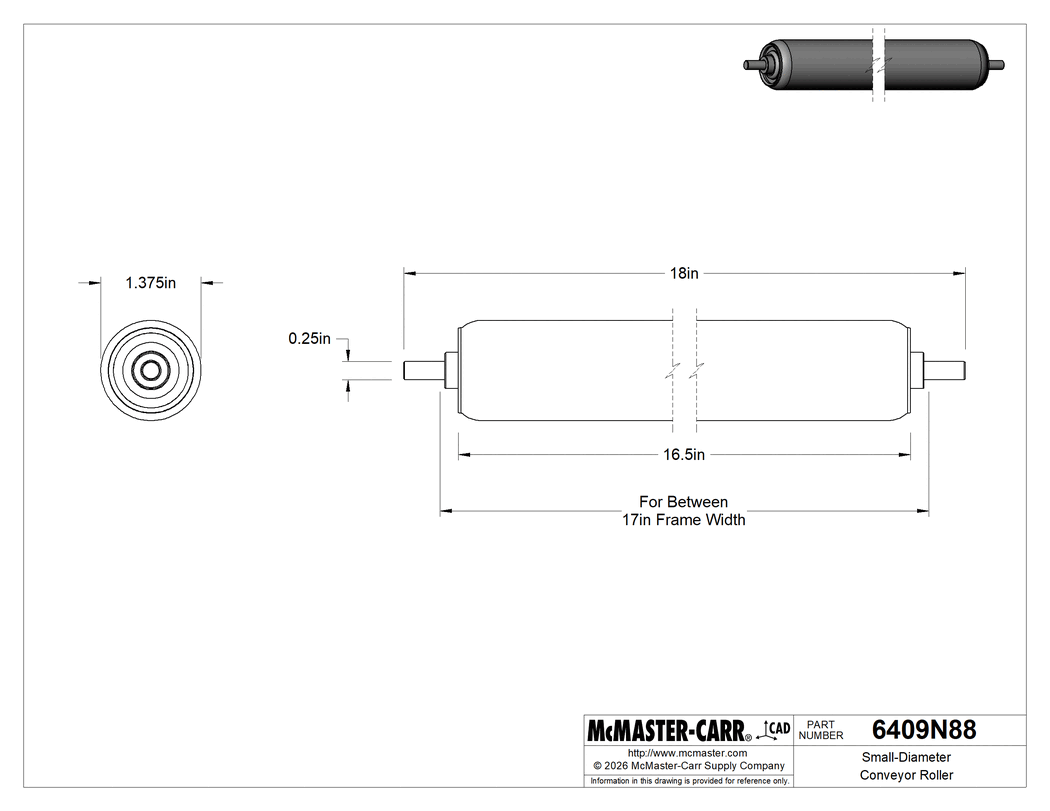

2-D PDF
000000 each
6409N88
In stock
6409N88
000000 each
Each
Select a compatible file type: Parasolid
Learn more about our Solidworks Add-In
Axle Diameter | 1/4" |
Axle Shape | Round |
Roller | |
Diameter | 1 3/8" |
Width | 16 1/2" |
Material | Galvanized Steel |
Gauge | 18 |
For Between Frame Width | 17" |
Weight Capacity | 50 lb. |
Overall Width | 18" |
Bearing | |
Type | Ball |
Material | Steel |
Temperature Range | -15° F to 220° F |
Axle Grip Type | Spring Loaded |
Ball Bearing Material | Steel |
Motorized | No |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 843139.0010 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Small-diameter rollers fit tight-clearance conveyor frames where standard rollers won't.
Galvanized Steel Rollers—Galvanized steel rollers are strong and have some corrosion resistance.
The information in this 3-D model is provided for reference only.
