    Gold-Painted Alloy Steel Hex L-Key

    9-Piece Set, Long Length, Metric Sizes

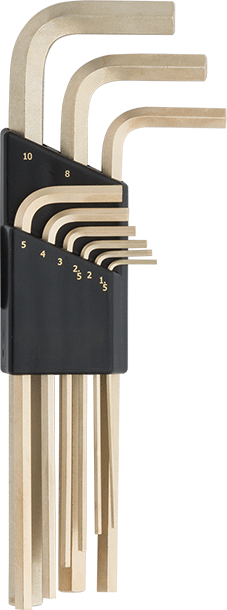

    Image of Product. Gold with Plastic Caddy. Front orientation. Gold-Painted Alloy Steel Hex L-Key, 9-Piece Set, Long Length, Metric Sizes.
    Gold with Plastic Caddy

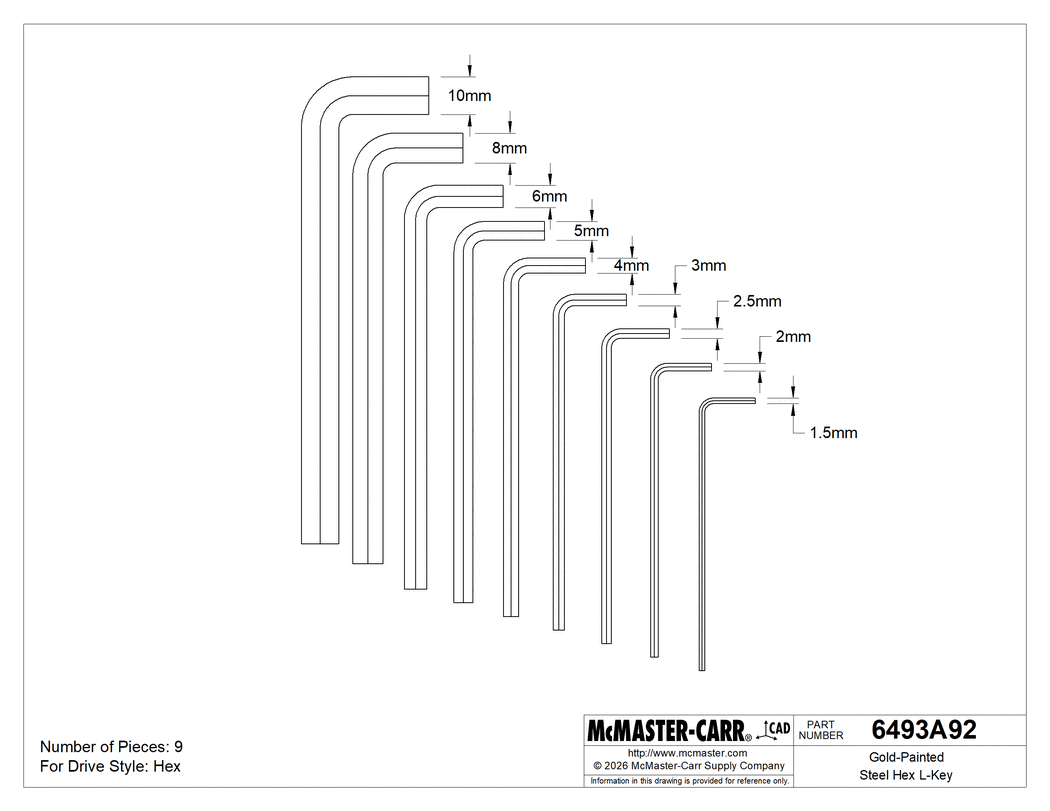

    Technical Drawing of Gold-Painted Alloy Steel Hex L-Key, 9-Piece Set, Long Length, Metric Sizes.
    Image of Attribute. Hex. Front orientation. Contains Annotated. Gold-Painted Alloy Steel Hex L-Key, 9-Piece Set, Long Length, Metric Sizes.
    Hex
    2-D PDF
    000000 each
    6493A92
    In stock
    6493A92
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Tip Style

    Straight

    Driver Style

    L-Key

    Material

    Alloy Steel

    Drive Style

    Hex

    Number of Pieces

    9

    Drive Size

    1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm

    Length

    Overall

    3 1/16" to 7 3/16"

    Relative

    Long

    Color

    Gold

    Finish

    Painted

    Container Type

    Plastic Caddy

    Includes

    1.5 mm Hex L-Key (3 1/16" O'all Lg.)
    2 mm Hex L-Key (3 3/8" O'all Lg.)
    2.5 mm Hex L-Key (3 5/8" O'all Lg.)
    3 mm Hex L-Key (4 1/16" O'all Lg.)
    4 mm Hex L-Key (4 1/2" O'all Lg.)
    5 mm Hex L-Key (5" O'all Lg.)
    6 mm Hex L-Key (6 1/4" O'all Lg.)
    8 mm Hex L-Key (6 3/8" O'all Lg.)
    10 mm Hex L-Key (7 3/16" O'all Lg.)

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820411.0060

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Keep the most common L-key sizes in one portable set so the right size is always ready. These L-keys are precision manufactured to tight tolerances for an exact fit.

    Alloy Steel—These L-keys handle high torque without bending or breaking, so they’ll last a lifetime.

    Long—The most common option, these L-keys have a balanced length for everyday reach and torque.

    The information in this 3-D model is provided for reference only.
