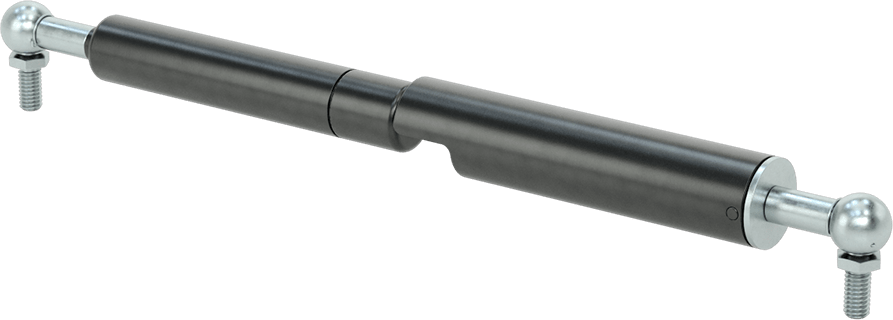

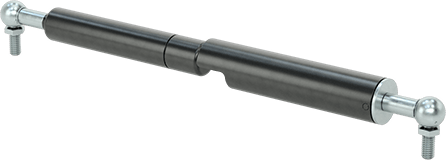

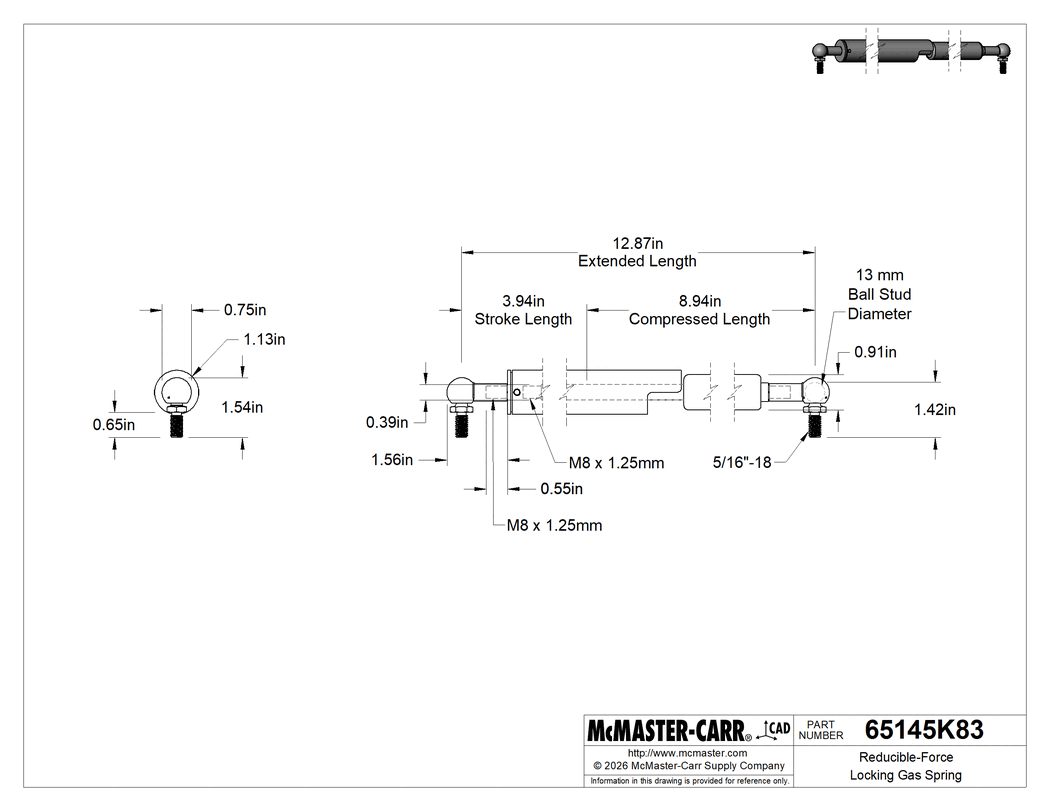

Adjustable-Force Locking Gas Spring
12.87" Extended Length
Body | |
Diameter | 0.91" |
Sleeve Diameter | 1.13" |
Material | Steel |
Rod | |
Diameter | 0.39" |
Thread Size | M8 |
Thread Pitch | 1.25 mm |
Material | Steel |
Extended Length | 12.87" |
Compressed Length | 8.94" |
Stroke Length | 3.94" |
Extension Force | 269 lbf |
Compression Force | 461 lbf |
Removable End Fittings | Yes |
End | |
Thread Size | M8 |
Thread Pitch | 1.25 mm |
Ball Stud | |
Length | 1.42" |
Thread Length | 0.65" |
Thread Size | 5/16"-18 |
Diameter | 13 mm |
Material | Zinc-Plated Steel |
Temperature Range | -40° F to 212° F |
Ball Socket | |
Length | 1.56" |
Width | 0.75" |
Thread Size | M8 |
Thread Pitch | 1.25 mm |
Thread Depth | 0.55" |
Material | Zinc-Plated Steel |
Force Mechanism | Compressed Nitrogen Gas |
Includes | Hex Key |
Lockable | Yes |
Maximum Cycles | Not Rated |
Maximum Cycles per Minute | Not Rated |
Mounting Position | Vertical with Rod Down |
Performance | Adjustable Force, Locking |
Refillable | No |
Seal Material | Rubber |
Country of Origin | United Kingdom |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848790.0080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Ensure you have the correct force for your application. These gas springs have a bleed valve so you can release gas to permanently reduce the force to meet your requirements. They're used to protect material and equipment underneath heavy loads—gas springs lock automatically when fully extended, ensuring they can't be closed until it's safe to do so. Press on the overlapping sleeve to unlock, allowing the gas spring to compress in a controlled manner.
Gas springs come charged to their maximum force. Use the included tool to open the valve and bleed off the gas—there's no disassembly required. Release gas in very small increments and then test your application. Once gas is released, the force is permanently reduced. Gas springs have a ball socket end fitting and ball stud on each end for mounting. Ball socket end fittings rotate in any direction on the ball stud to compensate for misalignment.
Note: When using two gas springs together in a locking application, use one locking spring and one nonlocking spring.
The information in this 3-D model is provided for reference only.
