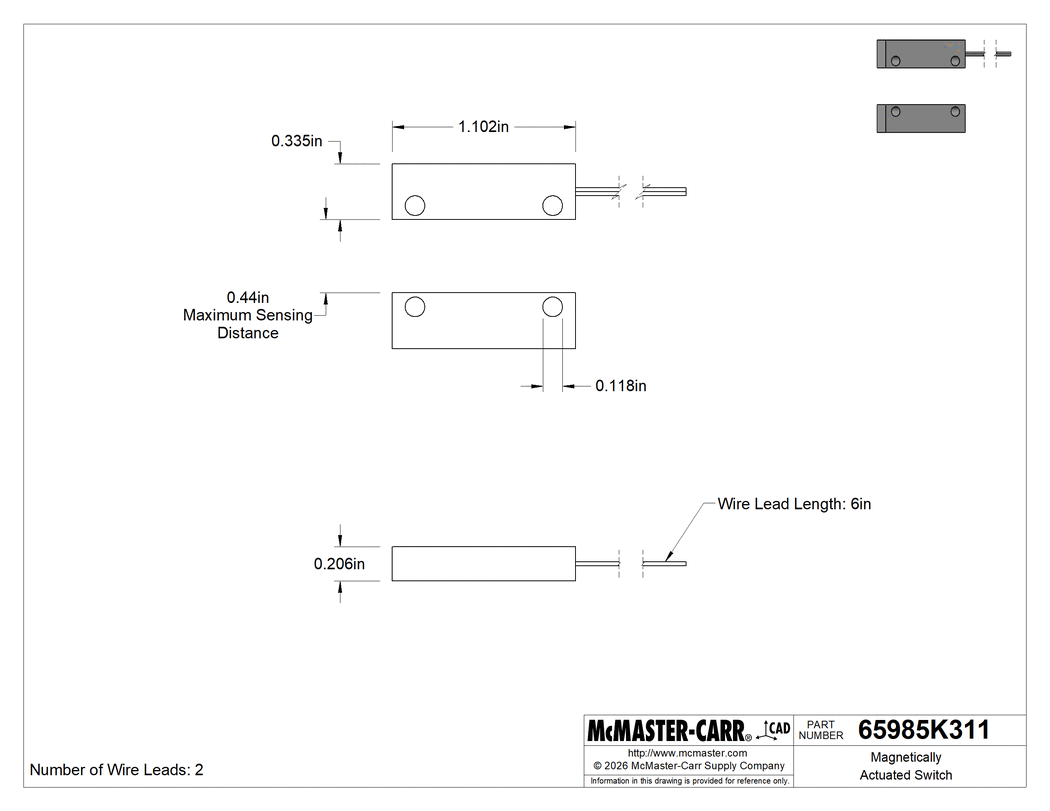

Magnetically Actuated Switch
Wire Leads, Plastic, SPST-NO, 200V DC,.44" Maximum Sensing
2-D PDF
000000 each
65985K311
In stock
65985K311
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Housing Material | Plastic |
Wire Connection | Wire Leads |
Style | A |
Number of Circuits Controlled | 1 |
Switch Starting Position | 1 Off |
Switch Designation | SPST-NO |
Switching Current @ Voltage | 1 amp @ 24V DC |
Maximum Voltage | 200V DC |
Maximum Sensing Distance | 0.44" |
Wire Leads | |
Number of | 2 |
Length | 1/2 ft. |
Length | 1.1" |
Width | 0.33" |
Height | 0.21" |
Certification | UL Recognized Component, C-UL Recognized Component |
Electrical Connection Type | Hardwire |
Includes | Magnet |
Mounting | |
Fasteners Included | No |
Number of Holes | 2 |
Hole Diameter | 0.12" |
Sensor Type | Magnetic |
Switch Type | Noncontact |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 853650.9065 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |

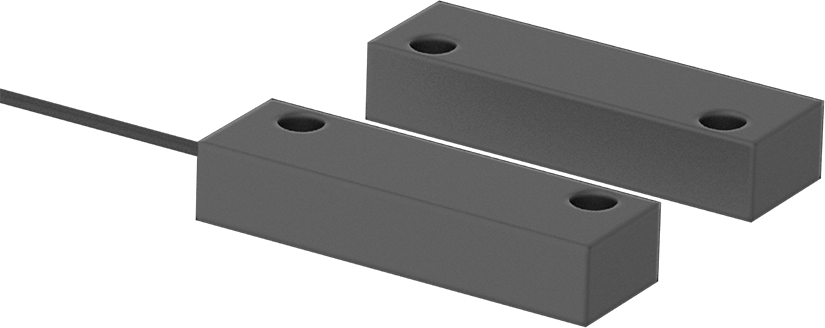

These switches actuate when a magnet comes within sensing distance, and reset when the magnet moves away. They’re often used to detect when a door or window opens. Mount the switch in a stationary position, such as a door frame, and mount the magnet to a movable object, such as the door. They do not include a safety relay and cannot be used with safety-guard doors found on machinery.
The information in this 3-D model is provided for reference only.
