    Heavy Duty 0.39" ID Eyelet Mounting Bracket for Corrosion-Resistant Gas Spring

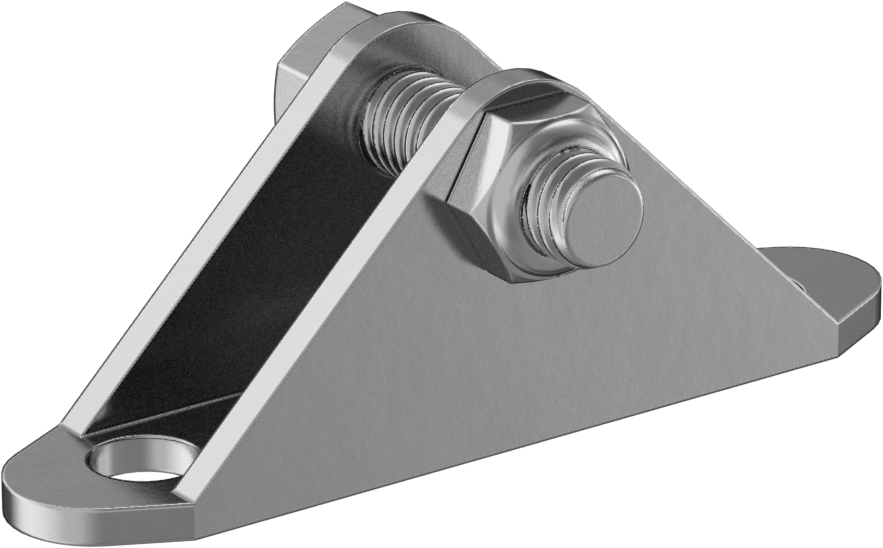

    Image of Product. Front orientation. Heavy Duty 0.39" ID Eyelet Mounting Bracket for Corrosion-Resistant Gas Spring.

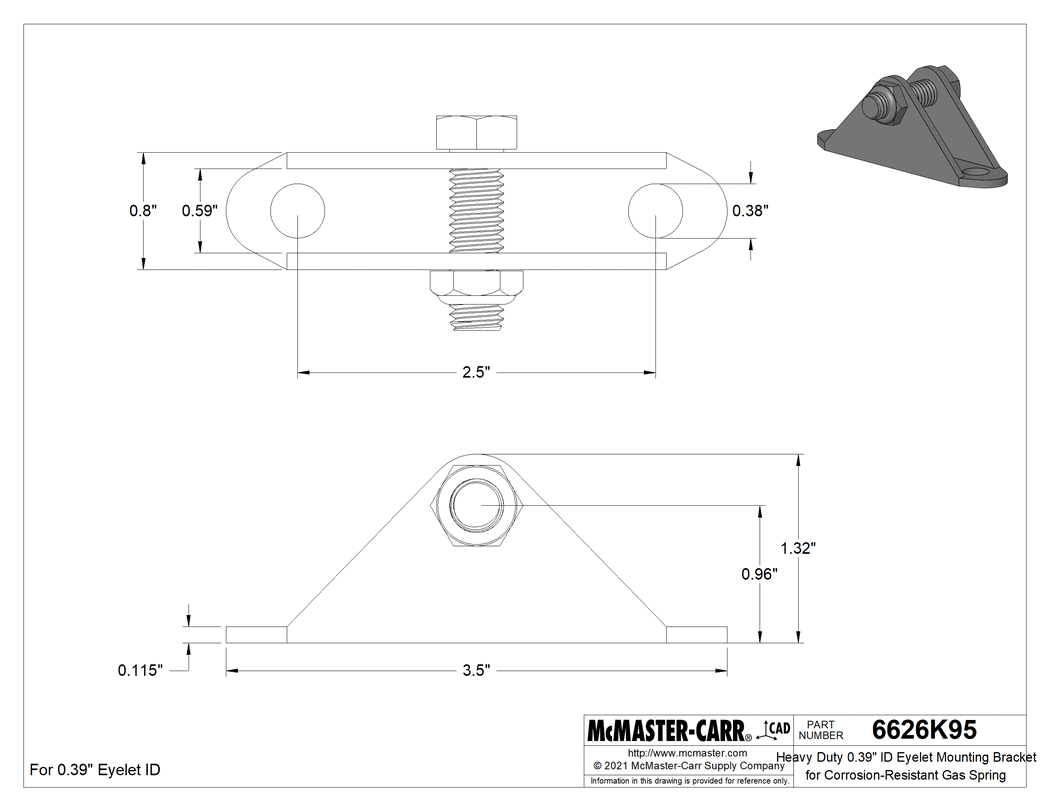

    Technical Drawing of Heavy Duty 0.39" ID Eyelet Mounting Bracket for Corrosion-Resistant Gas Spring.

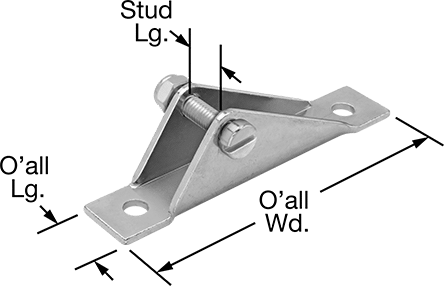

    Image of Attribute. Front orientation. Contains Annotated. Heavy Duty 0.39" ID Eyelet Mounting Bracket for Corrosion-Resistant Gas Spring.
    2-D PDF
    000000 each
    6626K95
    In stock
    6626K95
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Style

    2

    For Eyelet ID

    0.39"

    Stud Length

    0.59"

    Overall

    Length

    0.8"

    Width

    3.5"

    Thickness

    0.115"

    Material

    304 Stainless Steel

    Mounting Fasteners Included

    No

    Mounting Holes

    Number of

    2

    Diameter

    0.38"

    Mounting Hole Center-to-Center Width

    2.5"

    Performance

    Corrosion Resistant

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    732690.8695

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Made from stainless steel for excellent corrosion resistance in damp environments. These brackets secure eyelet end fittings (sold separately) from both sides to provide a strong hold on gas springs that get bumped or jostled. Mount on any panel, lid, or door.
