    Long-Reach Impact Hex Bit Socket

    1/4" Square Drive, 4 mm Drive Size, 4" Overall Length

    Image of Product. Bottom orientation. Long-Reach Impact Hex Bit Socket, 1/4" Square Drive, 4 mm Drive Size, 4" Overall Length.

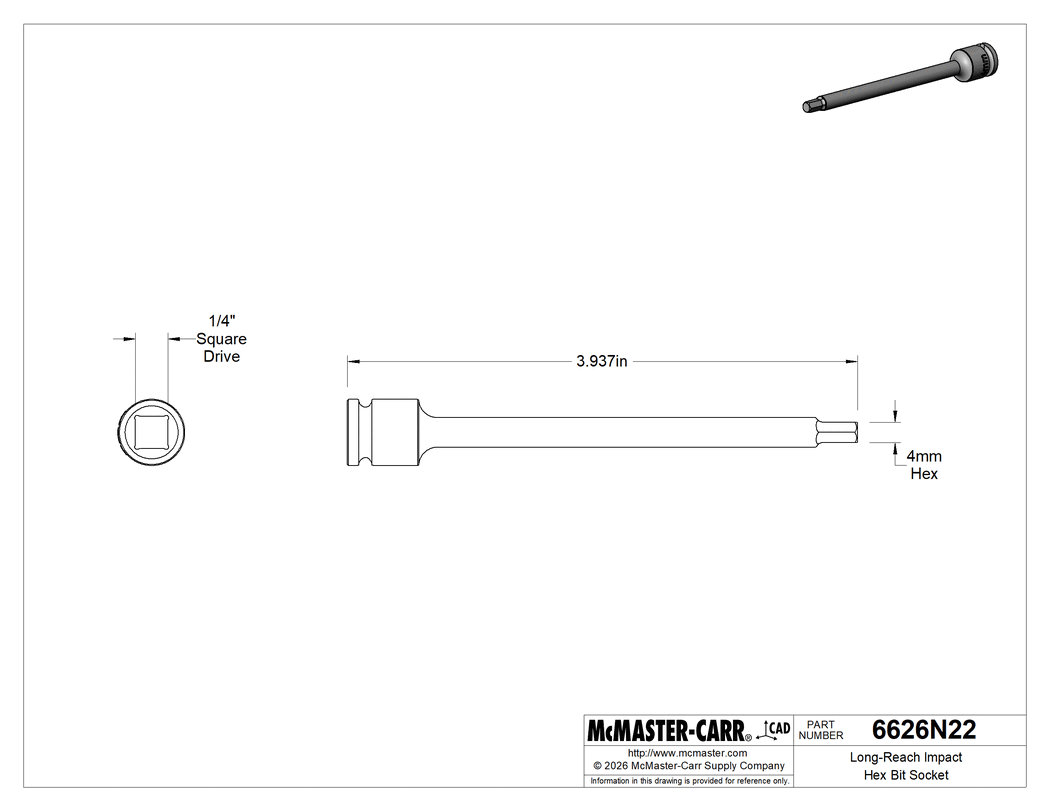

    Technical Drawing of Long-Reach Impact Hex Bit Socket, 1/4" Square Drive, 4 mm Drive Size, 4" Overall Length.
    Image of Product. Bottom orientation. Long-Reach Impact Hex Bit Socket, 1/4" Square Drive, 4 mm Drive Size, 4" Overall Length.
    Image of Product. Side1 orientation. Contains SizingReference. Long-Reach Impact Hex Bit Socket, 1/4" Square Drive, 4 mm Drive Size, 4" Overall Length.
    2-D PDF
    000000 each
    6626N22
    In stock
    6626N22
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Square Drive Size

    1/4"

    Drive Size

    4 mm

    Overall Length

    4"

    Material

    Black Oil-Coated Steel

    Bit Replaceable

    No

    For Drive Style

    Hex

    Drive Type

    Impact

    Performance

    Long Reach

    Socket Style

    Bit

    Socket Type

    Socket

    Sold As

    Individual

    System of Measurement

    Metric

    Tip Style

    Straight

    Country of Origin

    Taiwan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    820790.7570

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Extra-long bits help you access hard-to-reach fasteners. These sockets are sturdier and have more give than manual-drive sockets, so they'll withstand the high torque and force of impact tools.

    Compatible Products for This Bit Socket
    Adapt

    Socket Adapters

    3 products

    Extend

    Socket Extensions

    2 products

    The information in this 3-D model is provided for reference only.
