Thrust Ball Bearing
Stainless Steel, for 7 mm Shaft Diameter
Bearing Type | Ball |
Lubrication | Required |
Ball Material | 440C Stainless Steel |
Washer Material | 410 Stainless Steel |
For Shaft Diameter | 7 mm |
OD | 17 mm |
OD Tolerance | -0.2 mm to -0.03 mm |
Thickness | 4.92 mm |
Thickness Tolerance | -0.1 mm to 0.1 mm |
Cage Material | Nylon |
Dynamic Thrust Load Capacity | 95 lb. |
Maximum Rotation Speed | 5,000 rpm |
Temperature Range | -40° F to 220° F |
Includes | Two Washers |
Ball Bearing Profile | Standard |
Bearing Seal Type | Open |
For Load Direction | Thrust |
For Shaft Type | Round |
ID | 7.076 mm |
ID Tolerance | 0 mm to 0.124 mm |
Performance | Ultra Low Friction, Corrosion Resistant |
Static Thrust Load Capacity | 95 lb. |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 1C999 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848210.5008 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
For silky-smooth motion, the balls inside these bearings roll nearly friction-free. You'll often find them at the end of a shaft or between a stationary and rotating surface, such as on a propeller or rotary table.

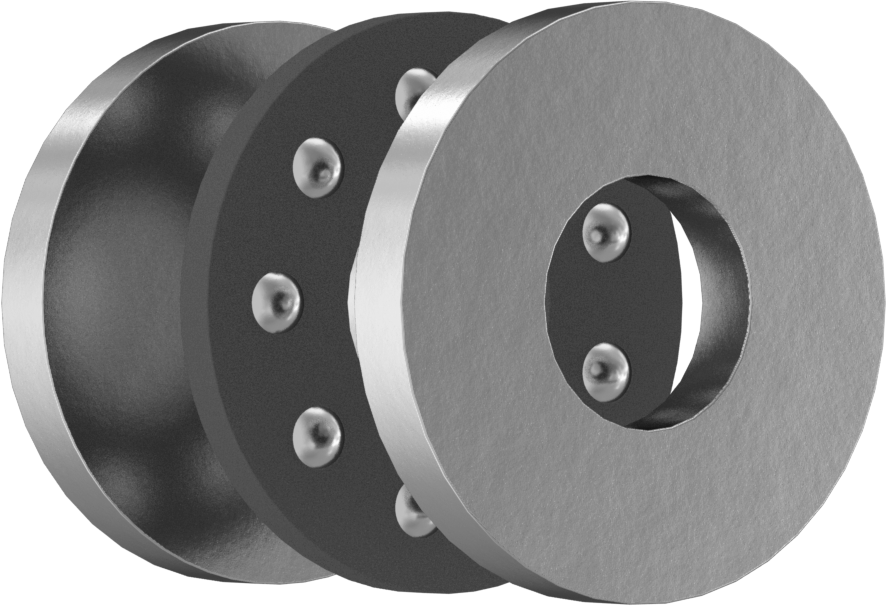

These bearings come as three separate pieces—one cage and two washers. The cage holds the balls in place, while the washers create a surface for the balls to roll on. This design is easy to lubricate, but the oil will attract dust and grime since it's exposed.
Stainless Steel—These bearings won't degrade from water or mild chemicals, such as the ammonia in cleaning solutions. However, they're not as strong as steel bearings.
Open—With no rubber seal to block airflow, these bearings dissipate heat quickly, extending the life of the lubricant and reducing friction over time.
Secure
Support load

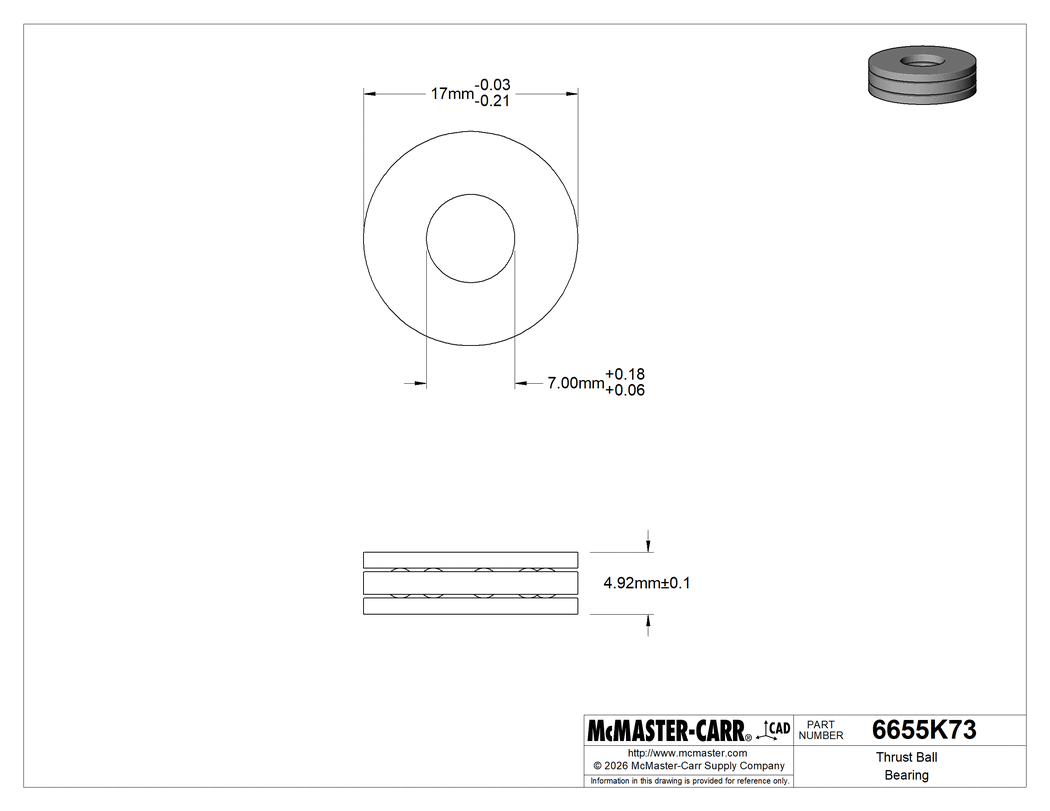

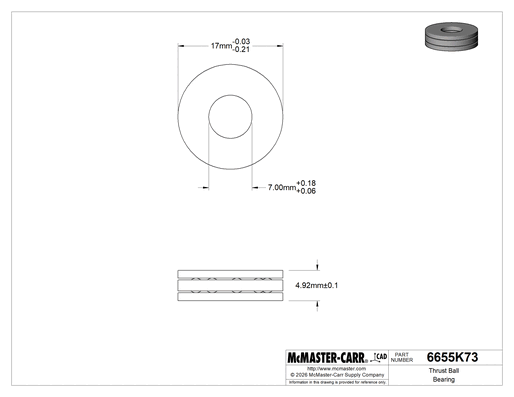

The information in this 3-D model is provided for reference only.
