Air-Powered Tool for Blind Rivets
3055 lbs. Pull Capacity
Style | C |
Pull Capacity | 3,055 lbf |
Stroke Length | 0.562" |
Nose | |
Diameter | 1" |
Length | 3 1/2" |
Length | 11" |
Height | 12" |
Operating Air Pressure | 85 psi to 95 psi |
Average Air Consumption | 5 ft³/min |
Air Inlet | |
Pipe Size | 1/4 |
Thread Type | NPT |
Gender | Female |
Air Hose Included | No |

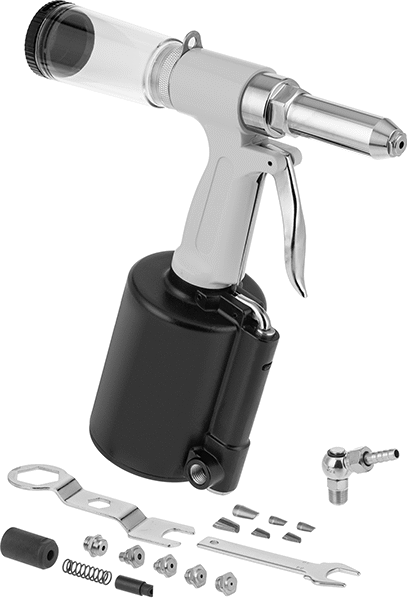

Includes | Five nosepieces (3/32", 1/8", 5/32", 3/16", and 1/4") |
For Rivet Type | Blind |
Power Source | Air |

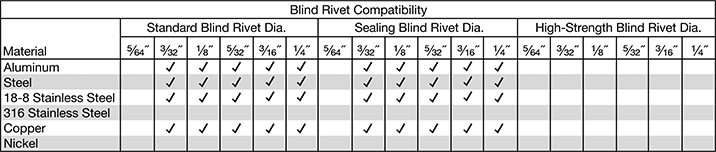

Rivet Compatibility (Type, Material, Diameter) | Standard, Aluminum, 3/32", 1/8", 5/32", 3/16", 1/4" |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 846719.5090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Products | |
Built for assembly lines and frequent maintenance, these tools install blind rivets faster than battery-powered tools. They’re powered by compressed air, so you can work continuously without stopping to charge the tool or swap batteries. A mandrel collector catches spent mandrels to keep them off the floor. These tools have changeable nosepieces—use the nosepiece that matches your rivet's diameter.
To install a rivet, insert the mandrel into the nosepiece of the tool. Place the rivet in the material and pull the trigger. The tool pulls the mandrel through the rivet's body, creating a secure hold on both sides of the material, and breaks off the excess mandrel.
