    High-Pressure Steel Unthreaded Pipe Flange

    Cap, 300 Class, 3 Pipe Size

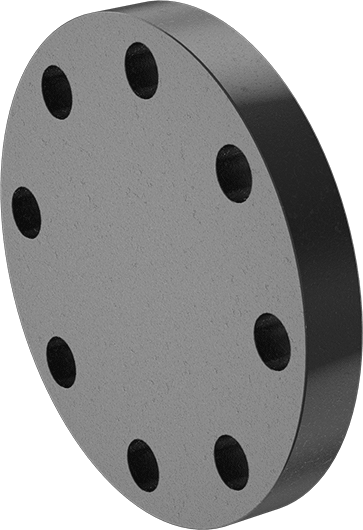

    Image of Product. Front. Front orientation. High-Pressure Steel Unthreaded Pipe Flange, Cap, 300 Class, 3 Pipe Size.
    Front

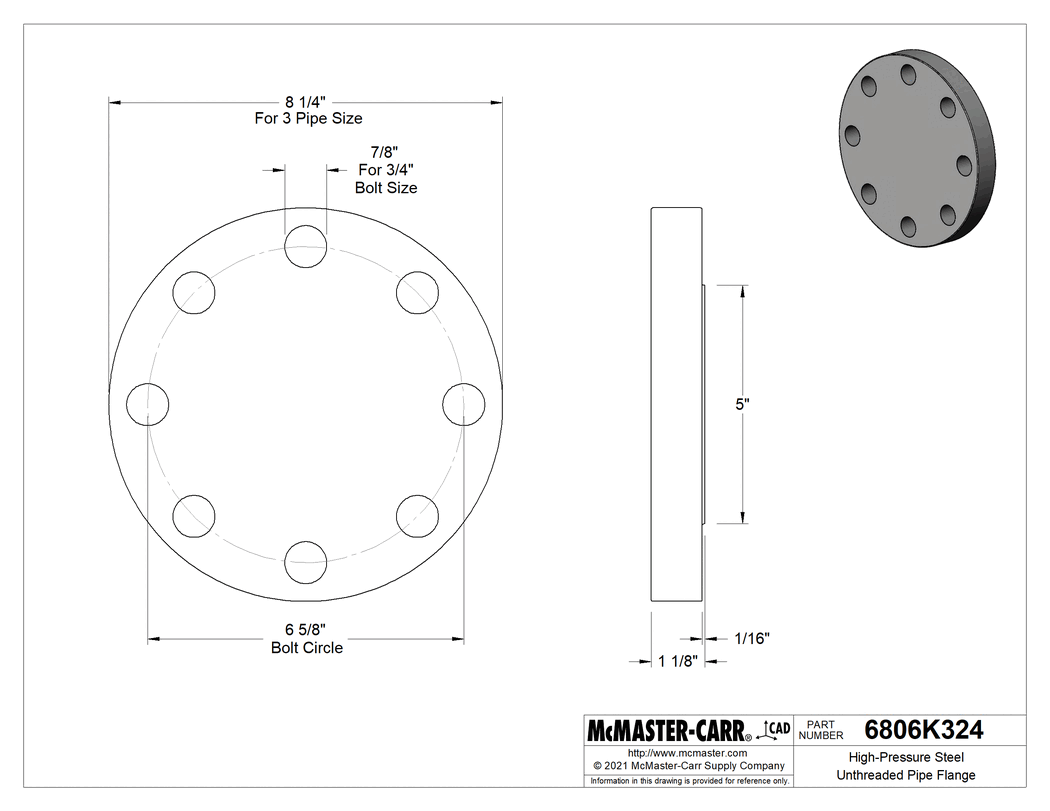

    Technical Drawing of High-Pressure Steel Unthreaded Pipe Flange, Cap, 300 Class, 3 Pipe Size.

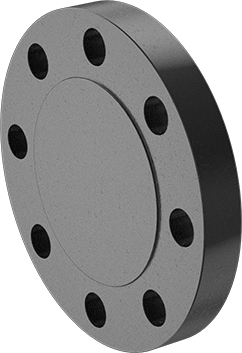

    Image of Product. Back. Back orientation. High-Pressure Steel Unthreaded Pipe Flange, Cap, 300 Class, 3 Pipe Size.
    Back
    2-D PDF
    000000 each
    6806K324
    In stock
    6806K324
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Pressure Rating

    High Pressure

    Fabrication

    Forged

    Shape

    Cap and Plug

    Fitting Type

    Cap, Flange

    Fitting Connection

    Flanged

    Pipe Size

    3

    Dash Size

    48

    Flanged Connection Surface

    Raised

    Flange OD

    8 1/4"

    For Bolt Diameter

    3/4"

    Bolt Hole

    Diameter

    7/8"

    Number Of

    8

    Bolt Circle Diameter

    6 5/8"

    Pressure Class

    300

    Material

    Steel

    Maximum Pressure @ Temperature

    600 psi @ 72° F

    Maximum Steam Pressure @ Temperature

    300 psi @ 300° F

    Certificate Form

    Paper

    Certificate Type

    Material Certificate with Traceable Lot Number and Test Report

    Connects To

    Pipe

    Flange Construction

    One Piece

    Flange Type

    Blind

    For Fitting Material

    Steel

    For Fitting Schedule

    80

    For Pipe Material

    Steel

    For Pipe Schedule

    80

    For Fitting Pressure Class

    3000

    For Use With

    Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water

    Specifications Met

    ASME B16.5, ASTM A105

    Threading

    Unthreaded

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    730791.2000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Forged for extra strength, these heavy duty flanges can withstand high-pressure applications. Bolt two flat-surface flanges or two raised-surface flanges of the same size together with a gasket (sold separately) to create an access point in a pipe line.

    Forged—Forged flanges have better strength than cast flanges.
