    Test Lead Set

    with Notched Probe Tip

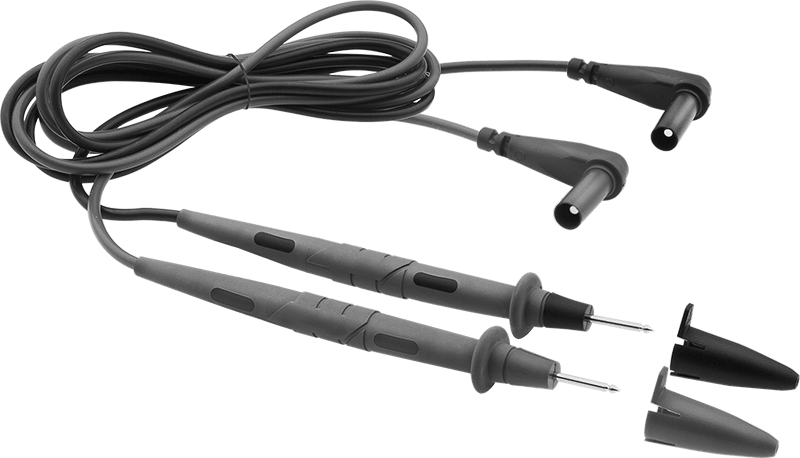

    Image of Product. Front orientation. Exploded view. Test Lead Set, with Notched Probe Tip.
    000000 per pair
    6929K29
    In stock
    6929K29
    000000 per pair
    Pair
    In stock
    Sold As

    Set

    Style

    E

    Test End

    Notched Probe Tip

    Connection End

    Sheathed Standard Banana Plug

    AC Voltage

    1,000V AC

    DC Voltage

    1,000V DC

    Current

    10 amp

    Electrical Safety Rating

    CAT II, 1,000V

    Number of Cords

    2

    Cord Length

    48"

    Color

    Black, Red

    Test End Material

    Nickel-Plated Brass

    American Wire Gauge (AWG)

    18

    Banana Connection Style

    Single

    Connection End Shape

    90° Angle

    Connection End Size

    4 mm

    Insulation Material

    Test End

    Polypropylene

    Cord

    Silicone Rubber

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(a), 6(b), 6(c)

    Schedule B Number

    903090.8020

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Ready to connect to a multimeter or other electrical test equipment, these red and black test leads come as a pair. The connection end is a standard 4 mm banana plug that fits most multimeters.
