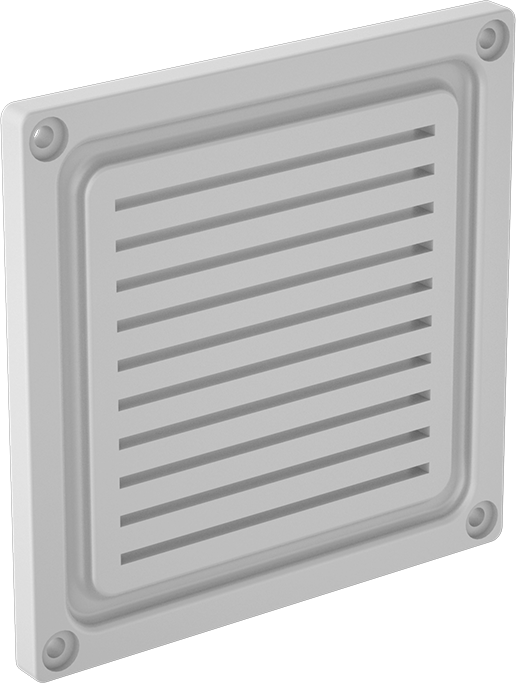

Wet Environment Breather Vent
White, 5-3/8" Long x 5-3/8" Wide x 5/16" Overall
Material | Polycarbonate |
Overall | |
Length | 5 3/8" |
Width | 5 3/8" |
Depth | 5/16" |
Environment | Corrosive, Dusty, Oily, Outdoor, Washdown, Wet |
Enclosure Rating | IP65 |
Mounting Fasteners Included | Yes |
Color | White |
Features | PTFE Seal |
Mounting Holes | |
Number of | 4 |
Diameter | 3/16" |
Mounting Location | Enclosure |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These vents maintain air pressure inside enclosures that may be exposed to indoor and outdoor temperature changes while keeping dust and water out. They have a PTFE seal that stands up to oil and corrosion and allows airflow in, reducing the risk of the seal failing due to changes in air pressure. They also minimize condensation that may rust internal electronic components. Made of polycarbonate, these vents withstand corrosion and UV rays.

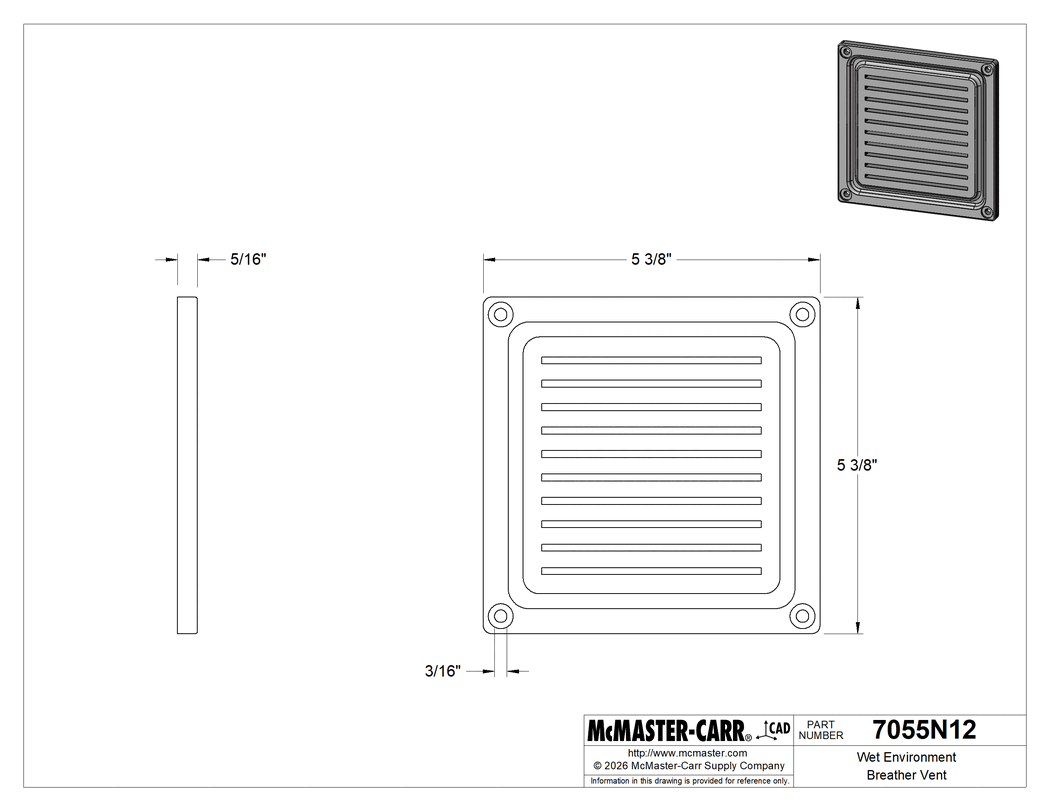

The information in this 3-D model is provided for reference only.
