    Battery Terminal Connector

    3/8" Antirotational Lug, 2 Wire Gauge

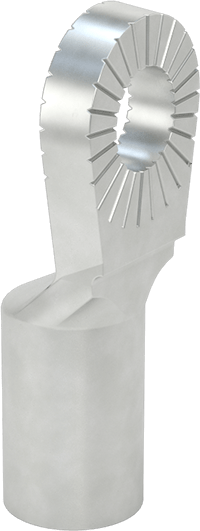

    Image of Product. Bottom orientation. Battery Terminal Connector, 3/8" Antirotational Lug, 2 Wire Gauge.

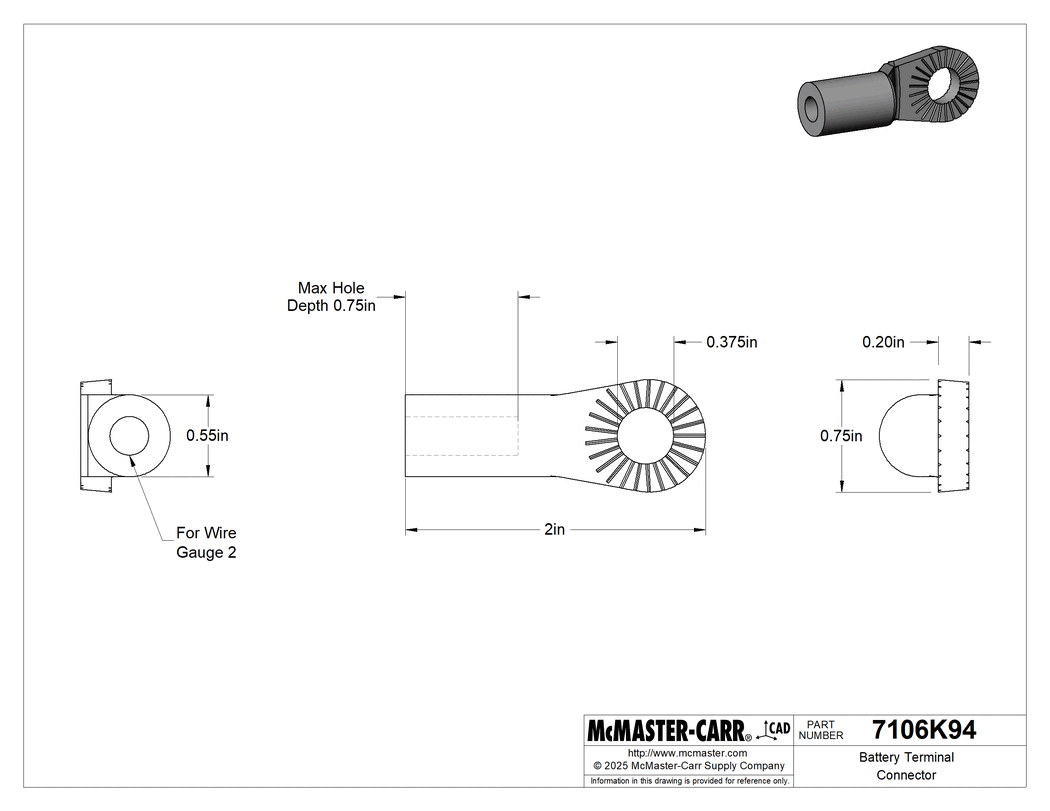

    Technical Drawing of Battery Terminal Connector, 3/8" Antirotational Lug, 2 Wire Gauge.
    Image of Product. Top orientation. Battery Terminal Connector, 3/8" Antirotational Lug, 2 Wire Gauge.

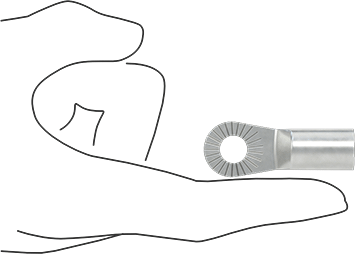

    Image of Product. Side1 orientation. Contains SizingReference. Battery Terminal Connector, 3/8" Antirotational Lug, 2 Wire Gauge.
    2-D PDF
    00000 each
    7106K94
    In stock
    7106K94
    00000 each
    Each
    In stock
    Learn more about our Solidworks Add-In
    For Wire Gauge

    2

    Maximum Current

    170 amp

    Lug ID

    3/8"

    Terminal Material

    Tin-Plated Copper

    Polarity

    Universal

    Certification

    UL Listed

    Battery Terminal Type

    Lug

    Component

    Battery Terminal

    Features

    Serrated Edge

    Performance

    Strong Grip

    Signal Type

    Power

    Wire Connection Method

    Crimp On, Solder

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    853690.4000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Serrations on both sides lock these lugs in place. Typically used on threaded terminals, they secure to the terminal with a nut (not included). Connect to cable with a crimping tool or by soldering. All have universal polarity, so they fit both negative and positive terminals.

    Note: Products only meet the certification when crimped to install.
