    Analog Electrical Panel Meter

    Measures Current, Acrylic Window, 0-100 Amps AC, 3.25" High

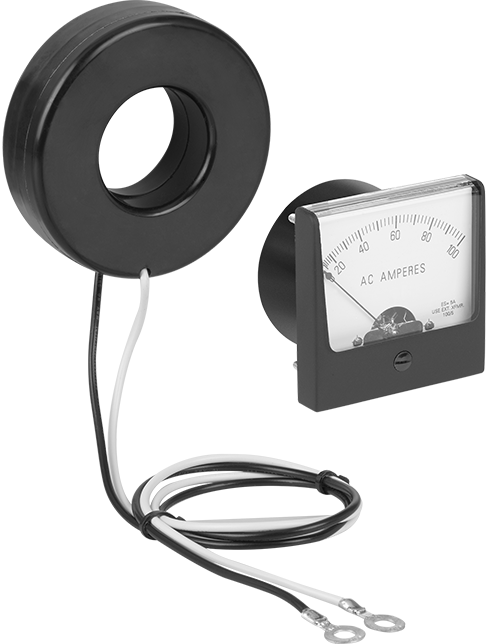

    Image of Product. Front orientation. Analog Electrical Panel Meter, Measures Current, Acrylic Window, 0-100 Amps AC, 3.25" High.
    0000000 each
    7107K7
    In stock
    7107K7
    0000000 each
    Each
    In stock
    Display Type

    Analog

    Measures

    AC Current

    Window Material

    Acrylic Plastic

    AC Current

    0 amp to 100 amp

    Accuracy

    ±2%

    Height

    3.25"

    Width

    3.25"

    Depth

    2.54"

    Includes

    100:5 Current Transformer

    For Panel Cutout

    Diameter

    2.79"

    Depth

    1.92"

    Wire Connection

    Screw Terminal

    Input

    Frequency

    25 Hz to 125 Hz

    Frequency Calibration

    60 Hz

    Resistance

    0.008 ohm

    Certification

    UL Recognized Component

    Mount Type

    Threaded Stud

    Mounting Stud Thread Size

    4-40

    Number of Mounting Studs

    4

    Pointer Color

    Black

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    3A992

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    903033.0040

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Observe rapidly changing electrical values in equipment such as motors and generators with an analog display that shows the magnitude and rate of change more easily than a digital display.
