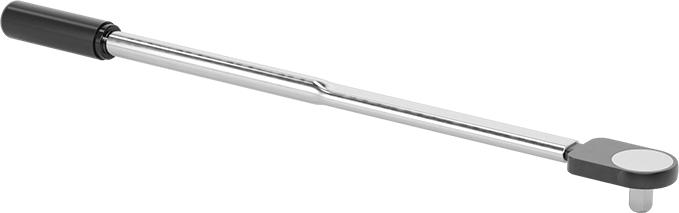

Click-Style Factory-Set Torque Wrench
1/2" Square Drive, 75 ft.-lbs. Torque, 22-7/8" Long
Performance | Ratcheting |
Unit of Measure | ft·lbf |
Ratcheting | Ratcheting |
Torque-Limiting Direction | Clockwise |
Square Drive Size | 1/2" |
Torque Setting | 75 ft·lbf |
Clockwise Accuracy | ±4% |
Overall Length | 22 7/8" |
Grip Material | Plastic |
Certificate | |
Type | Calibration Certificate with Test Data Traceable to NIST |
Form | Paper |
Material | Chrome-Plated Steel |
For Use With | Screws and Nuts |
Head Style | Standard |
Power Source | Manual |
Sold As | Individual |
Torque Adjustability | Fixed |
Torque Wrench Type | Torque Limiting |
Torque-Limiting Mechanism | Click |
Wrench Style | Square Drive |
Wrench Type | Torque |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 846610.0175 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Products | |
Reach the same torque every time with factory-set wrenches that indicate with an audible click and an impulse in the grip when set torque is reached. These wrenches come with a calibration certificate, which includes test measurements that confirm accuracy.
Keys—Change the torque of these wrenches with keys (sold separately).
Repair Kits—Include the components needed to replace a damaged ratcheting mechanism.

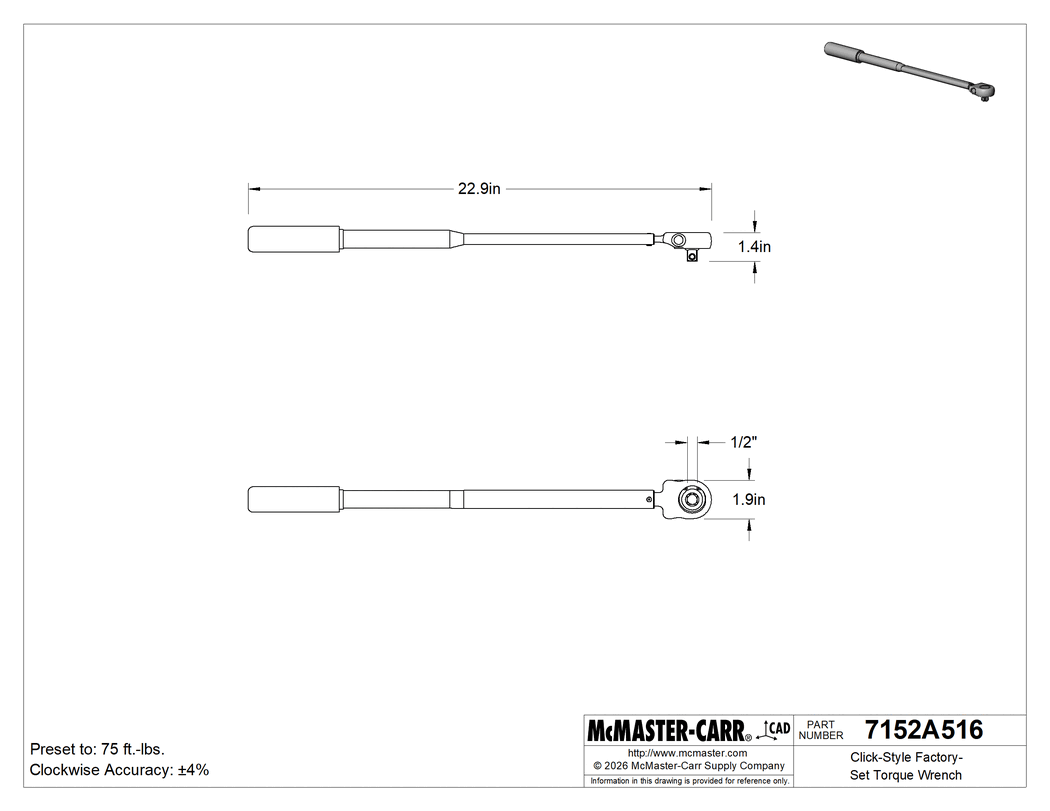

The information in this 3-D model is provided for reference only.
