    Squeeze-and-Strip Electrical Wire Stripper

    for 22 to 10 Gauge Solid and Stranded Wire

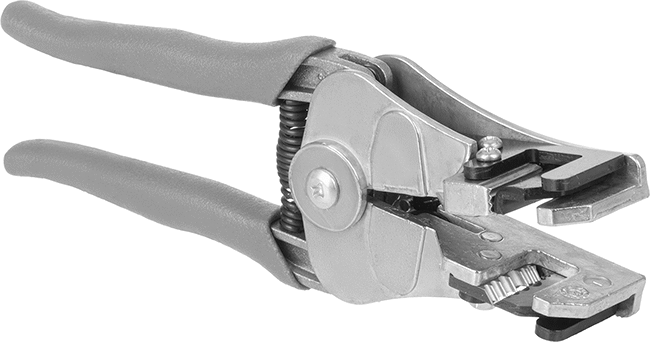

    Image of Product. Front orientation. Squeeze-and-Strip Electrical Wire Stripper, for 22 to 10 Gauge Solid and Stranded Wire.

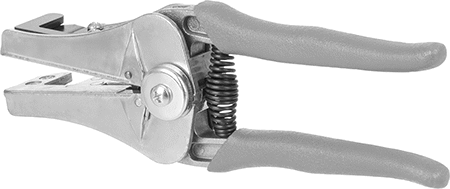

    Image of Product. Back orientation. Squeeze-and-Strip Electrical Wire Stripper, for 22 to 10 Gauge Solid and Stranded Wire.

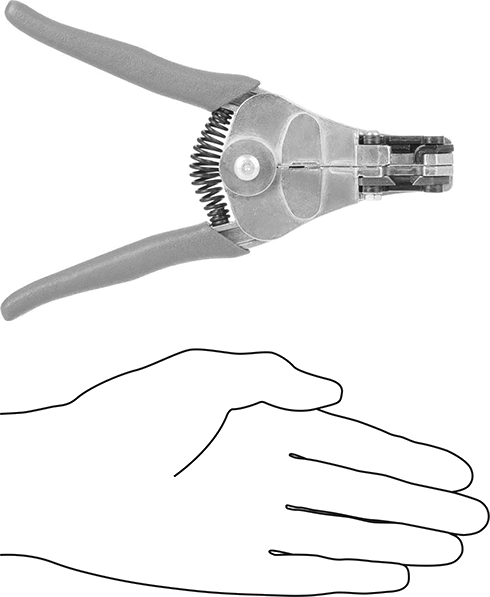

    Image of Product. Side1 orientation. Contains SizingReference. Squeeze-and-Strip Electrical Wire Stripper, for 22 to 10 Gauge Solid and Stranded Wire.
    000000 each
    7292K42
    In stock
    7292K42
    000000 each
    Each
    In stock
    Material

    Zinc Alloy

    For Wire Gauge

    Solid

    22-10

    Stranded

    22-10

    For Wire Construction

    Solid
    Stranded

    Maximum Strip Length

    0.88"

    For Wire/Cable Type

    Power

    Length

    7 1/2"

    Grip Material

    PVC

    Function

    Stripper

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    820320.6060

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Products

    Replacement Blades

    Replacement Springs

    Replacement Moving Grippers

    One squeeze strips insulation and pulls it off the wire.

    Replacement Blades—Replacement blades include both the upper and lower blades.
