    12-Point Standard Socket

    Chrome-Plated Steel, 3/4" Square Drive, 41 mm Size

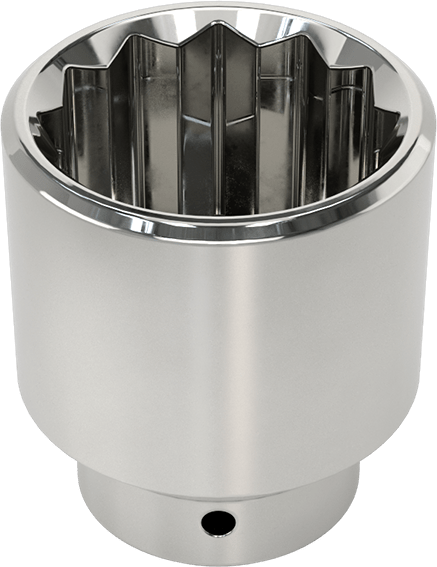

    Image of Product. Bottom orientation. 12-Point Standard Socket, Chrome-Plated Steel, 3/4" Square Drive, 41 mm Size.

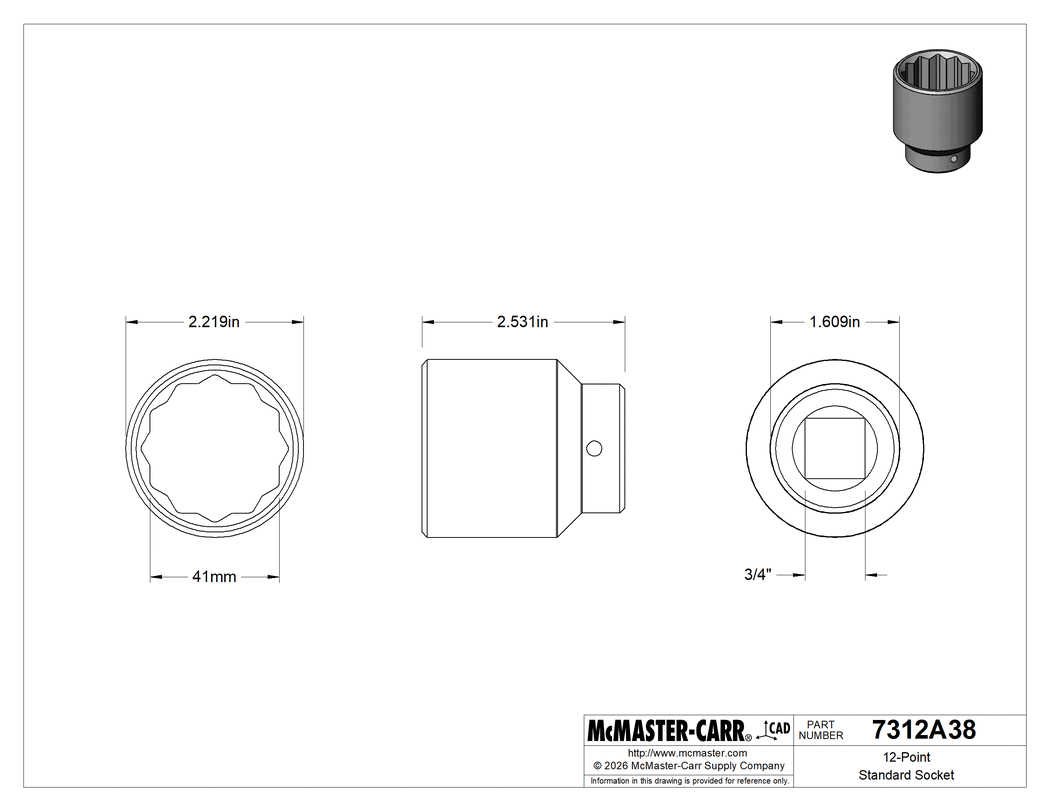

    Technical Drawing of 12-Point Standard Socket, Chrome-Plated Steel, 3/4" Square Drive, 41 mm Size.
    Image of Product. Bottom orientation. 12-Point Standard Socket, Chrome-Plated Steel, 3/4" Square Drive, 41 mm Size.
    Image of Product. Side1 orientation. Contains SizingReference. 12-Point Standard Socket, Chrome-Plated Steel, 3/4" Square Drive, 41 mm Size.
    2-D PDF
    000000 each
    7312A38
    In stock
    7312A38
    000000 each
    Each
    In stock
    Learn more about our Solidworks Add-In
    Material

    Chrome-Plated Steel

    Square Drive Size

    3/4"

    Bolt Clearance Type

    Standard

    Drive Size

    41 mm

    Overall Length

    2 9/16"

    OD

    2 7/32"

    Socket Shape

    12-Point

    For Drive Style

    External 12-Point, External Hex

    Drive Type

    Nonimpact

    Socket Style

    Standard

    Socket Type

    Socket

    Sold As

    Individual

    System of Measurement

    Metric

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820420.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    The 12-point shape quickly positions on hex fasteners. These sockets are for hand-driven use only.

    The information in this 3-D model is provided for reference only.
