    7 Piece Hex Bit Set

    Metric Sizes

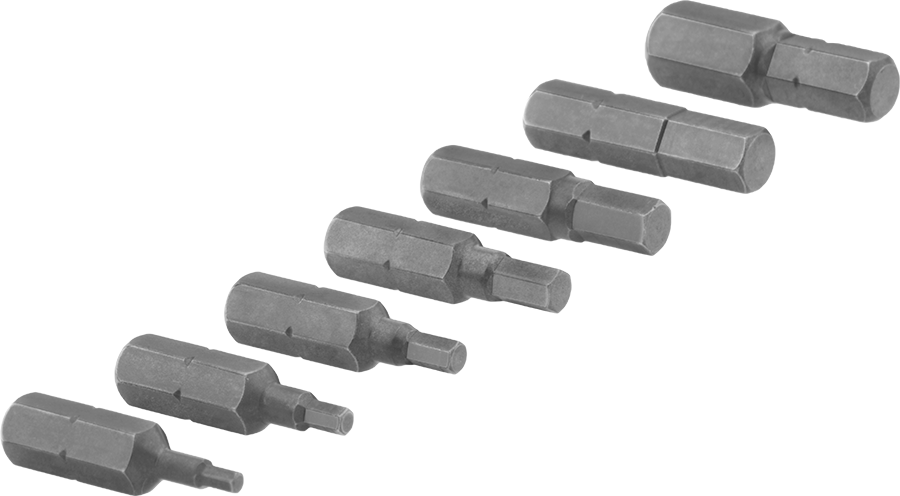

    Image of Product. Front orientation. 7 Piece Hex Bit Set, Metric Sizes.

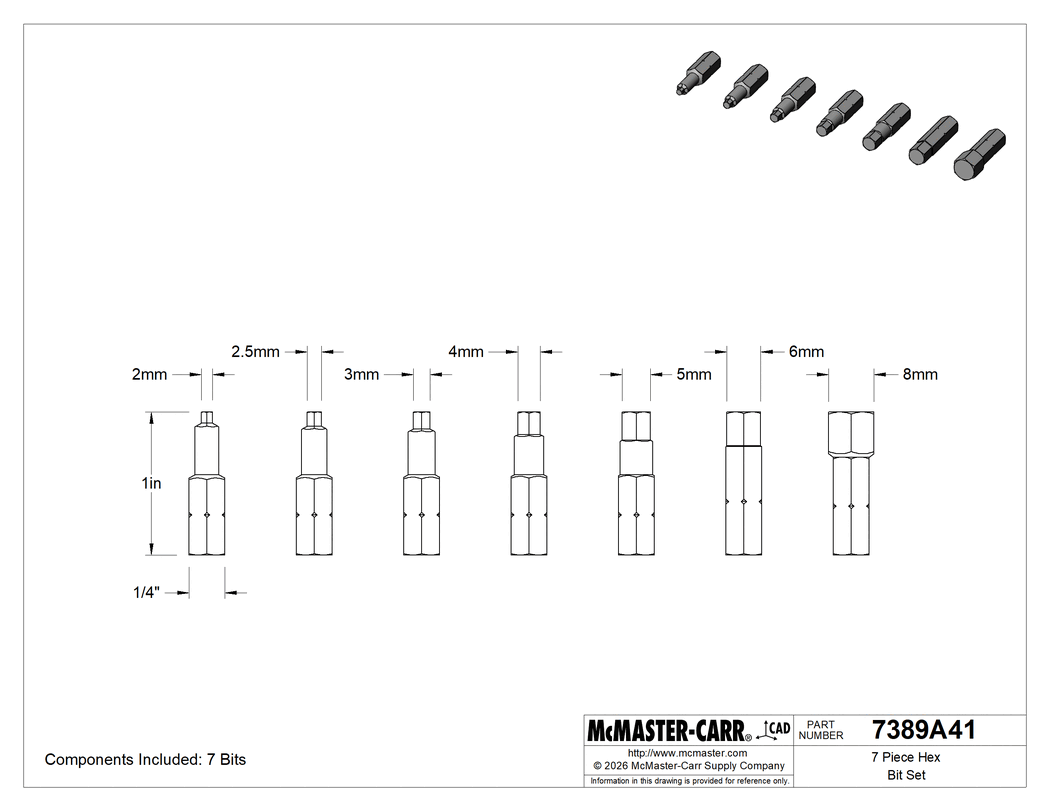

    Technical Drawing of 7 Piece Hex Bit Set, Metric Sizes.
    Image of Attribute. Front orientation. Contains Annotated. 7 Piece Hex Bit Set, Metric Sizes.
    2-D PDF
    000000 each
    7389A41
    In stock
    7389A41
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Driver Style

    Bit

    For Tool Type

    Hand Tools

    Hex Shank Size

    1/4"

    Shank Type

    Hex

    Components Included

    7 Bits

    Bits Included

    Hex: 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm (1" O'all Lg.)

    Material

    Steel

    Drive Size

    2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm

    For Drive Style

    Hex

    Overall Length

    1"

    Tip Style

    Straight

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820790.7570

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Keep a selection of hex bits on hand to turn multiple screw sizes. With six contact points, hex bits handle more torque than slotted and Phillips bits without slipping and stripping the drive.

    Hex Shank—Also known as insert bits, these snap into hand tools. If you want to use them with power tools, attach a bit adapter (not included).

    Steel—Best for dry environments, since moisture will cause these bits to rust.

    The information in this 3-D model is provided for reference only.
