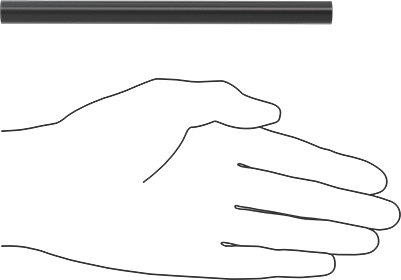

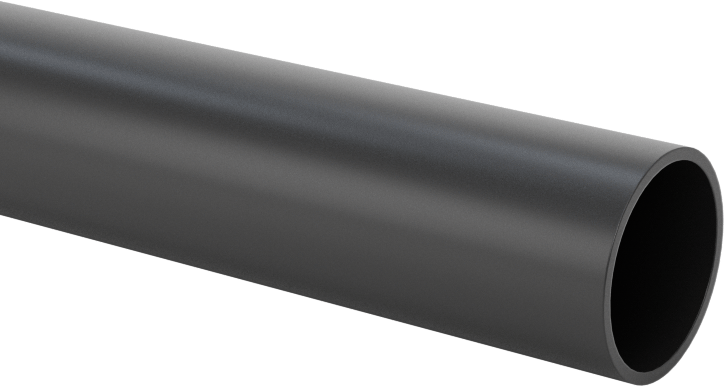

Moisture-Seal Heat-Shrink Tubing
2:1 Shrink Ratio, 0.38" ID Before Shrink, 1/2 Foot Long
Shrink Ratio | 2:1 |
Material | Polyolefin |
Flexibility | Flexible |
Length | 1/2 ft. |
ID | |
Before Shrinking | 0.38" |
Minimum After Shrinking | 0.19" |
Minimum Wall Thickness After Shrinking | 0.03" |
Shrink Temperature | 230° F |
Temperature Range | -65° F to 230° F |
Dielectric Strength | 400 V/mil |
Certification | UL Recognized Component |
Color | Black |
Clarity | Opaque |
CSA File Number | 033298_0_000 |
Heat-Shrink Tubing Type | Tubing |
Liner Material | Adhesive |
Performance | Moisture Resistant |
UL File Number | E75077 |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.9988 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Create a water-resistant seal—this tubing has an adhesive lining that melts when the tubing is heated and bonds to the underlying surface. Choose tubing with a larger shrink ratio to cover irregularly shaped objects or cable assemblies that have a large size difference between the cable and connector.
Flexible—Use flexible tubing in applications where wire and cable need to bend around curves and corners.
Dielectric Strength—Dielectric strength is the maximum voltage a material can handle before it starts to breakdown. The higher the dielectric strength of a material, the better it is for preventing electricity, heat, or signal from dissipating from wire and cable.

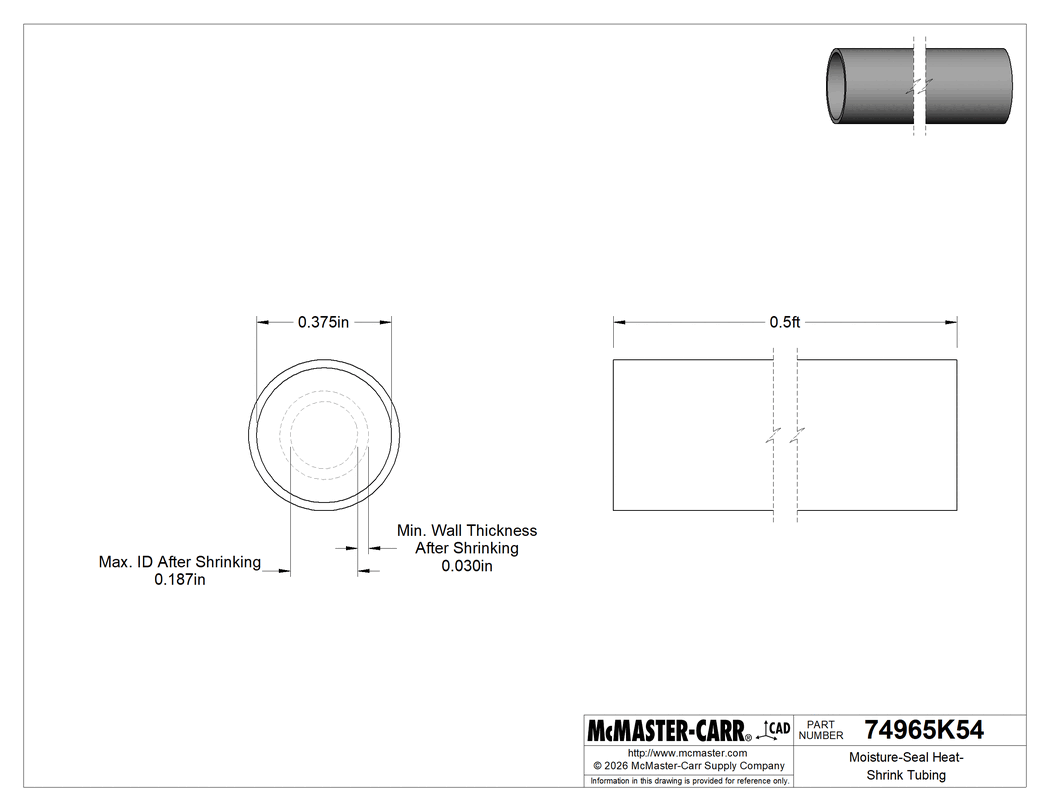

The information in this 3-D model is provided for reference only.
