    Pipe Flashing

    for Corrugated-Metal Roofs, 7 to 13" OD, Silicone Cap

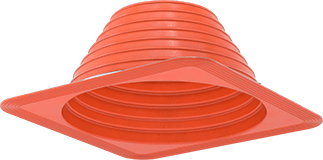

    Image of Product. Bottom orientation. Pipe Flashing, for Corrugated-Metal Roofs, 7 to 13" OD, Silicone Cap.

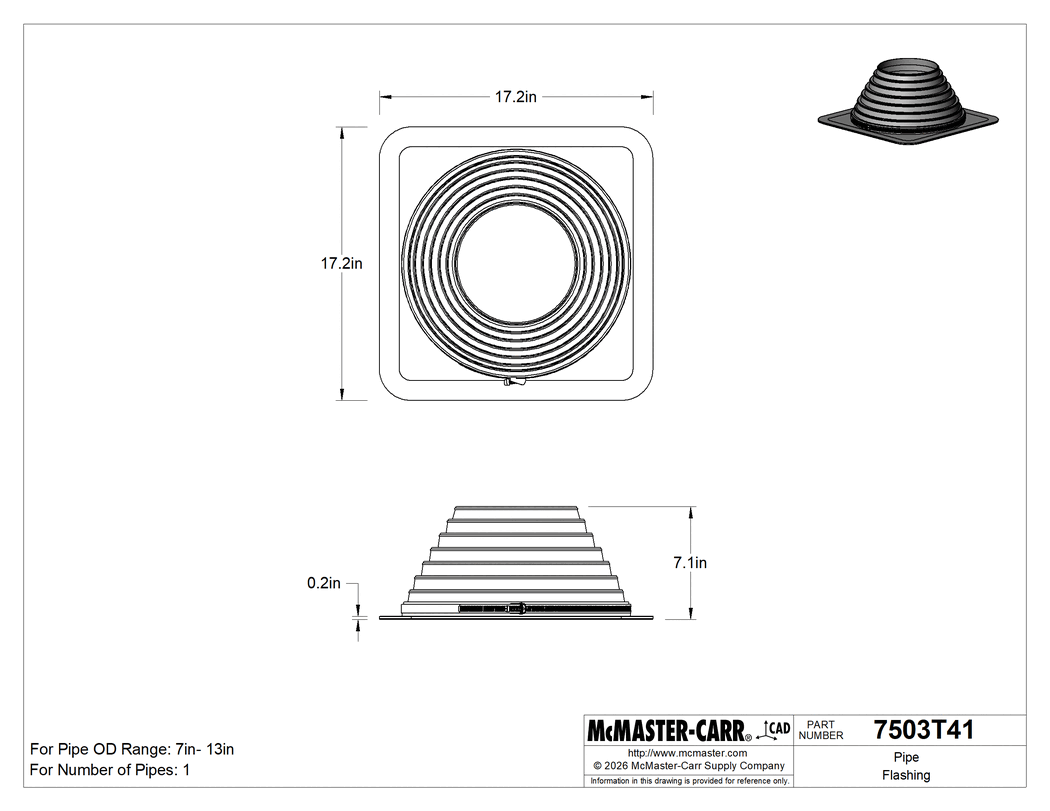

    Technical Drawing of Pipe Flashing, for Corrugated-Metal Roofs, 7 to 13" OD, Silicone Cap.
    Image of Product. Bottom orientation. Pipe Flashing, for Corrugated-Metal Roofs, 7 to 13" OD, Silicone Cap.

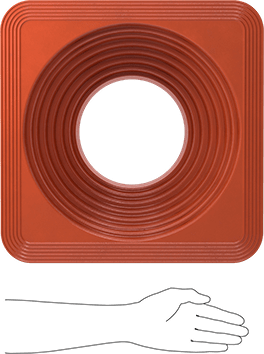

    Image of Product. Side1 orientation. Contains SizingReference. Pipe Flashing, for Corrugated-Metal Roofs, 7 to 13" OD, Silicone Cap.
    2-D PDF
    0000000 each
    7503T41
    In stock
    7503T41
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Roof Construction

    Corrugated

    For Material

    Metal

    Cap Material

    Silicone Rubber

    For Number of Pipes

    1

    For Pipe OD

    7" to 13"

    Flange

    Length

    17 1/4"

    Width

    17 1/4"

    Overall Height

    7 1/8"

    Temperature Range

    -100° F to 500° F

    Base Material

    Aluminum

    Cap Color

    Orange

    Includes

    Stainless Steel Clamps

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    401699.6000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    These flashings allow pipes that penetrate your roof to expand, contract, and vibrate without disturbing the watertight seal. Trim the rubber cap to fit a range of pipe sizes. All caps resist water, sunlight, and ozone.

    Silicone Rubber Cap—Silicone rubber caps withstand higher temperatures than EPDM caps. They’re often used with gas vents and hot roof pipes for heaters and stoves.
