    1 lb. Solder

    0.032" Diameter

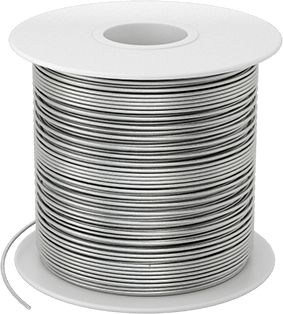

    Image of Product. Front orientation. 1 lb. Solder, 0.032" Diameter.

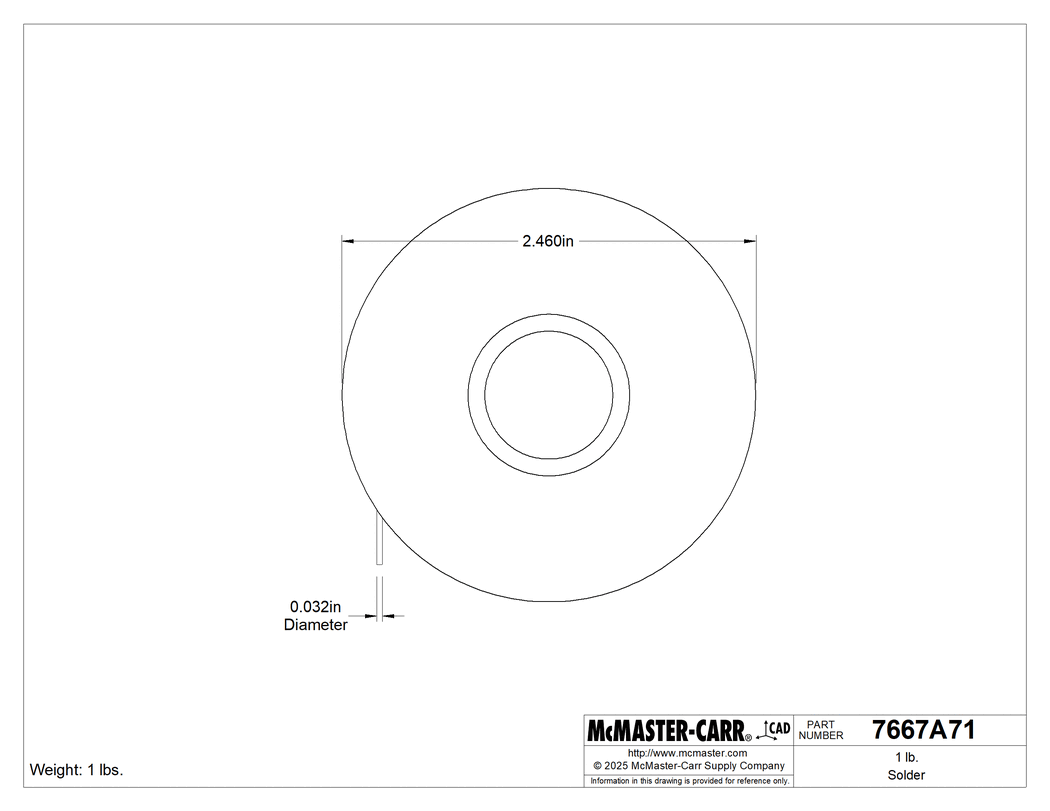

    Technical Drawing of 1 lb. Solder, 0.032" Diameter.
    2-D PDF
    000000 each
    7667A71
    In stock
    7667A71
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Solder Type

    Leaded, Flux Required

    For Joining

    Brass, Bronze, Copper, Nickel, Stainless Steel, Steel

    Weight

    1 lb.

    Solder Alloy

    Sn50Pb50

    Material Composition

    Tin

    50%

    Lead

    50%

    Diameter

    0.032"

    Melting Temperature

    420° F

    Shape

    Wire

    Specifications Met

    IPC J-STD-006

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    831130.3000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Additional Specifications

    SDS

    Use this solder for general purpose applications. It does not have a flux core, so you can choose the flux that works best for your application.
