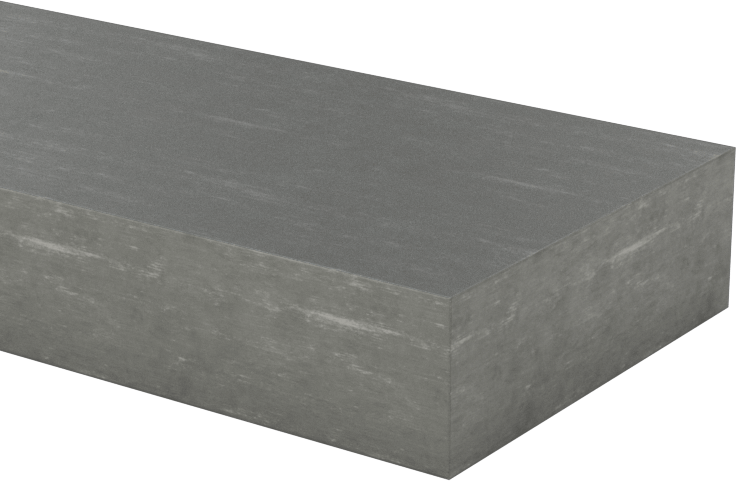

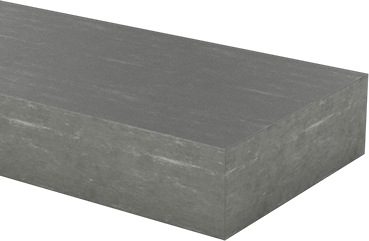

Low-Carbon Steel Bar
1/2" Thick, 1-1/2" Wide
Thickness | 1/2" |
Thickness Tolerance | -0.004" to 0.004" |
Width | 1 1/2" |
Width Tolerance | 0" to 0.003" |
Fabrication | Cold Drawn |
Yield Strength | 45,000 psi |
Hardness | Not Rated |
Hardness Rating | Not Rated |
Specifications Met | ASTM A108 |
Appearance | Plain |
Application | Multipurpose |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Coefficient of Thermal Expansion | Not Rated |
Elongation | 36% |
Heat Treatable | No |
Length Tolerance Type | Plus |
Material | Low-Carbon Steel |
Material Composition | |
Carbon | 0.15% to 0.20% |
Iron | Remainder |
Manganese | 0.60% to 0.90% |
Phosphorus | 0.04% Max. |
Sulfur | 0.50% Max. |
Maximum Temperature | Not Rated |
Minimum Temperature | Not Rated |
Performance | High Strength, Formable, Machinable, Ultra Weldable, Made-to-Order |
Shape | Bar |
Steel Grade | 1018 Low-Carbon Steel |
Straightness Tolerance | Not Rated |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 721114.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
When an off-the-shelf size won't do, we'll get you the exact dimensions you need.
Also known as mild steel, low-carbon steel is easy to machine, form, and weld. It's widely fabricated into parts that don’t require high strength, such as fixture clamps and mounting plates.

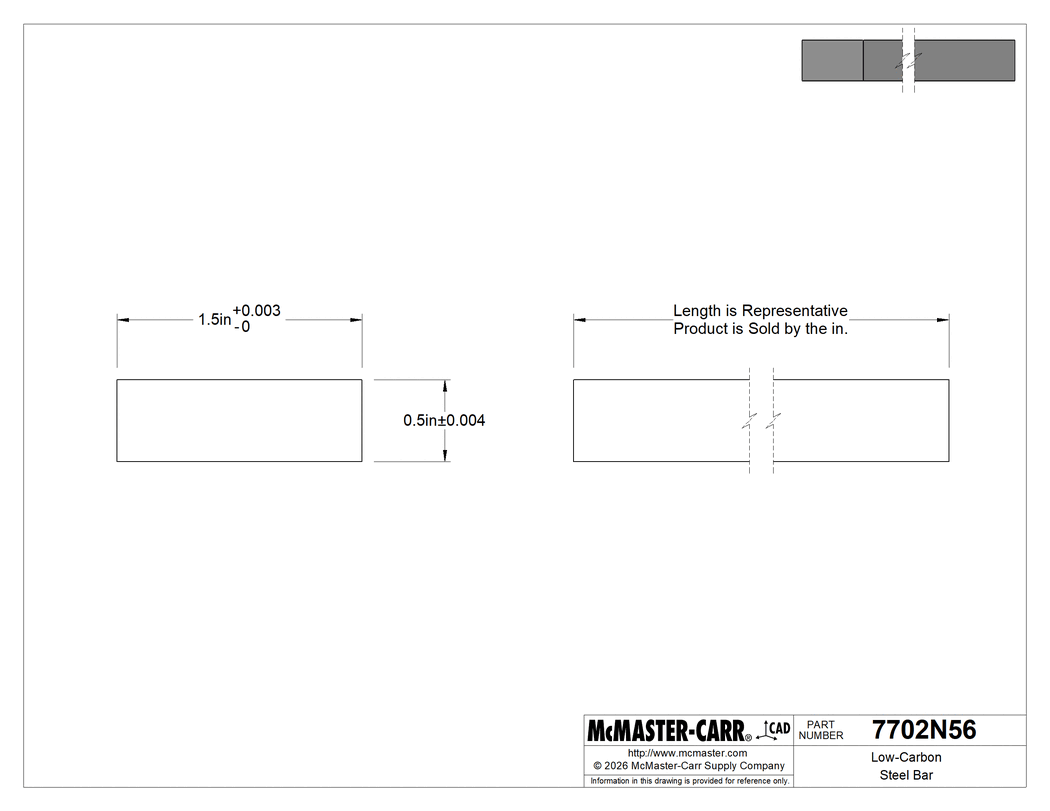

The information in this 3-D model is provided for reference only.
