    High-Temperature Silicone Rubber Hollow Tapered Plugs

    for 2-1/2 Pipe Size, for 2.765" to 2.94" ID

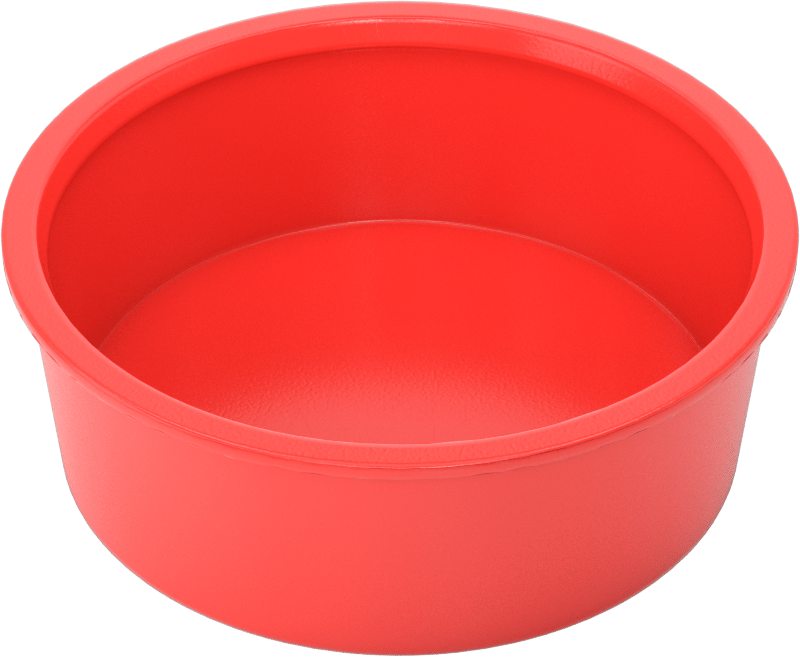

    Image of Product. Top orientation. High-Temperature Silicone Rubber Hollow Tapered Plugs, for 2-1/2 Pipe Size, for 2.765" to 2.94" ID.

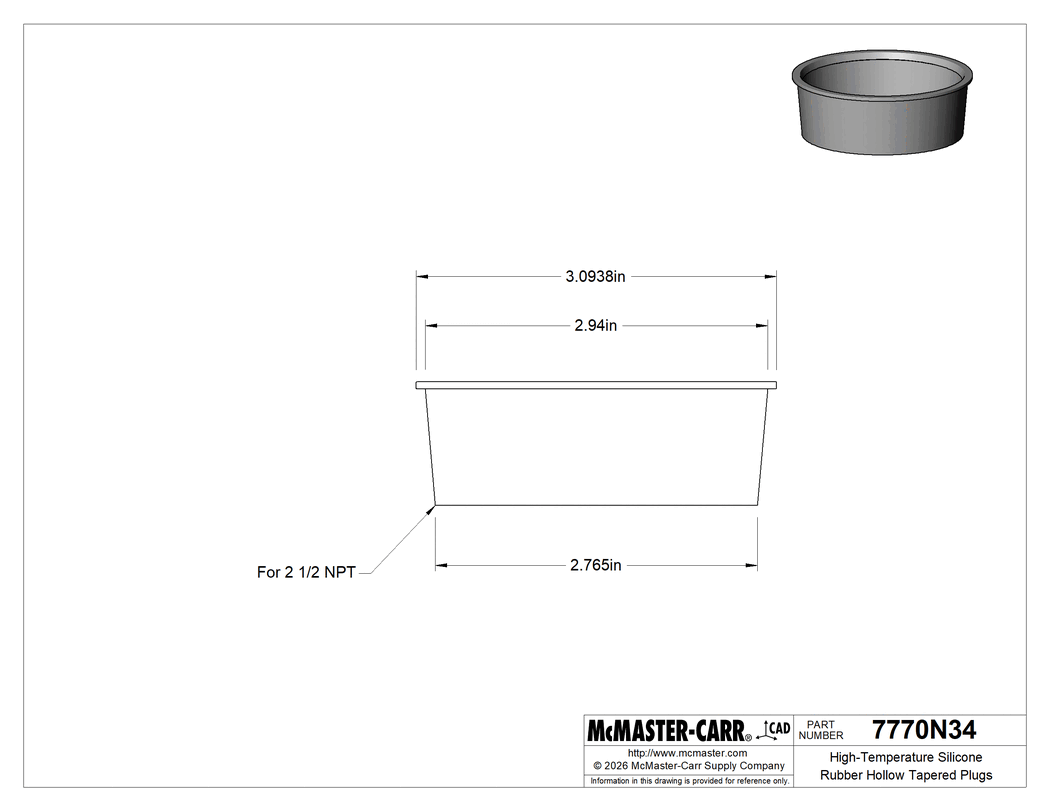

    Technical Drawing of High-Temperature Silicone Rubber Hollow Tapered Plugs, for 2-1/2 Pipe Size, for 2.765" to 2.94" ID.

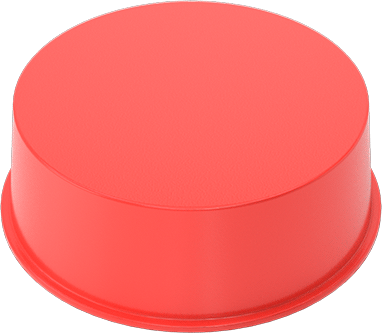

    Image of Product. Bottom orientation. High-Temperature Silicone Rubber Hollow Tapered Plugs, for 2-1/2 Pipe Size, for 2.765" to 2.94" ID.
    Image of Product. Side1 orientation. Contains SizingReference. High-Temperature Silicone Rubber Hollow Tapered Plugs, for 2-1/2 Pipe Size, for 2.765" to 2.94" ID.
    2-D PDF
    000000 per pack of 2
    7770N34
    In stock
    7770N34
    000000 per pack of 2
    Pack of 2
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Attachment Type

    Push In

    For Shape

    Round

    Material

    Silicone Rubber

    For ID

    2.765" to 2.94"

    For Pipe Size

    2 1/2

    Height

    1"

    Maximum Temperature

    450° F

    Color

    Red

    Flange Diameter

    3 3/32"

    Compatible Connection

    Tapered-Thread Pipe Fittings

    Construction

    Hollow

    For Hole Type

    Threaded, Unthreaded

    For Thread Type

    NPT

    For Use With

    Pipe, Tubing

    Hardness

    Durometer 70A

    Performance

    Chemical Resistant, High Temperature

    Profile Shape

    Taper, Flanged

    System of Measurement

    Inch

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392350.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    A hollow construction makes these plugs extra flexible, so they compress for easy installation and a snug fit. The tapered profile fits a range of hole diameters. If you flip the plug over, it can be used as a cap.

    High-Temperature Silicone Rubber—Withstand multiple passes when paint baking, powder coating, and electroplating.
