RFID Tag
Adhesive Ready, High Frequency, 8 mm Diameter
Performance | Adhesive Ready |
Relative RFID Frequency | High Frequency |
Frequency | 13.56 MHz |
Memory Size | 112 B |
For Use On | Nonmetal, Metal |
Shape | Round |
Diameter | 8 mm |
Thickness | 4.5 mm |
Temperature | |
Minimum | -10° F |
Maximum | 130° F @ 50 yr. |
Enclosure Rating | IP67 |
Material | Plastic |
Certification | CE Marked |
Color | Gray |
Environment | Dusty, Submersible |
Number of Cycles | |
Read | Unlimited |
Write | 100,000 |
RFID Type | Passive |
Specifications Met | ISO/IEC 15693-1 |
Country of Origin | Singapore |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 847160.9050 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Track inventory and other items in your facility with these tags, which store and share loads of information. Capable of both read and write functions, their memory can be repeatedly rewritten and reused. Use their data to provide reliable feedback to automated tracking systems and devices, such as programmable logic controllers (PLCs). These tags are easier to scan than bar codes because they don’t require line of sight. They’re also more durable because bar codes can get scuffed, smudged, and wear out over time.
Adhesive Ready—Adhesive-ready tags can be glued onto a surface or embedded within it.
High Frequency—High-frequency tags are good for short-range scanning, approximately 4 in. away from an RFID reader/writer. They’re often used for tracking bins passing a checkpoint on a conveyor belt.
IP67 Enclosure Rating—IP67 tags withstand dust and temporary submersion.

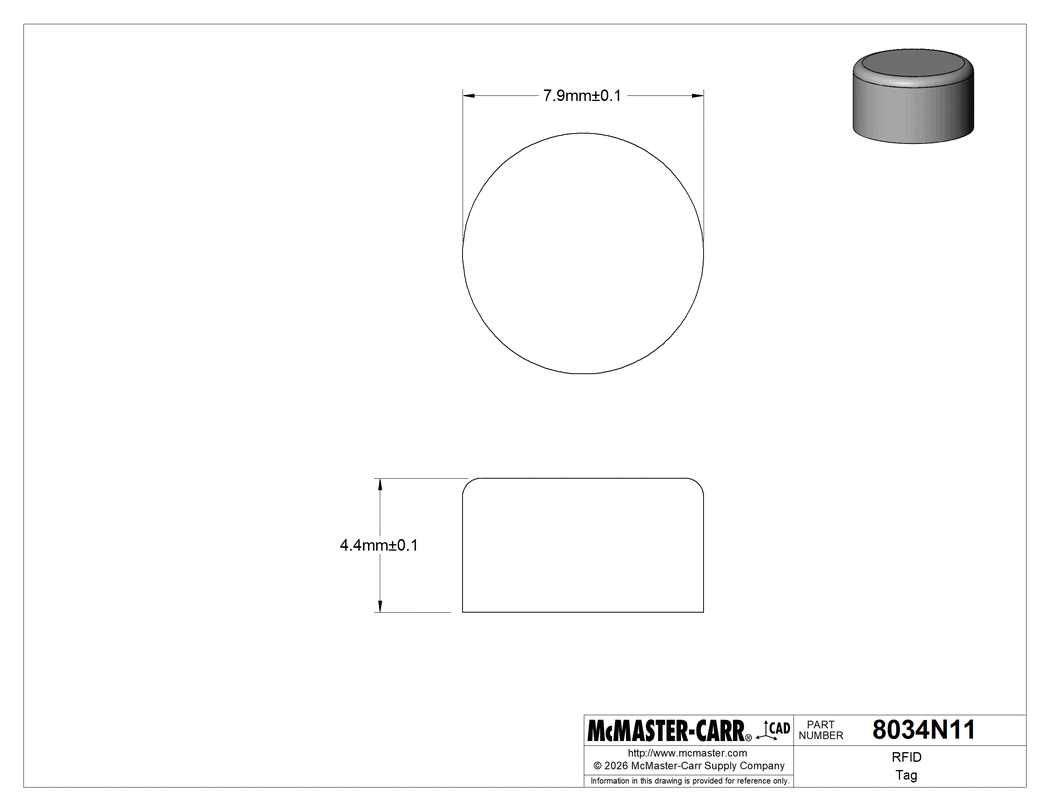

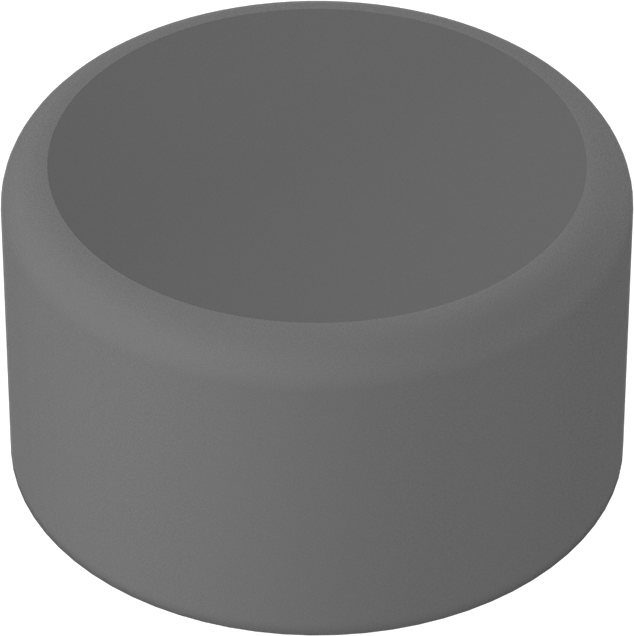

The information in this 3-D model is provided for reference only.
