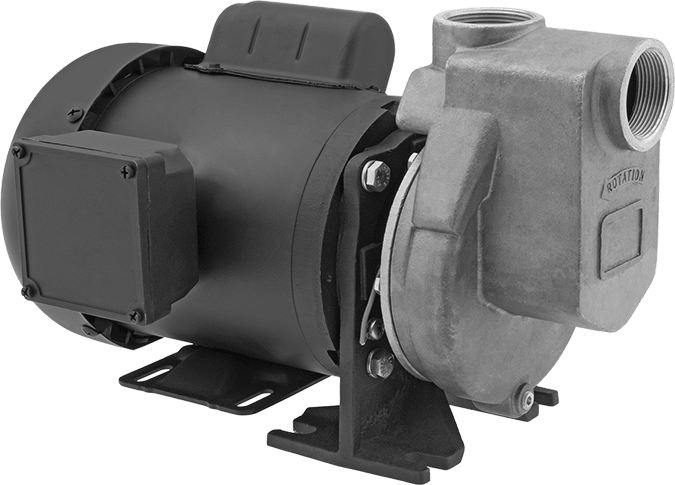

Circulation Pump for Water and Oil
Harsh-Environment, 120/208-240V AC, 1-1/2 hp
Voltage | 120V AC/208V AC to 240V AC |
Electrical Phase | Single |
Thermal Protection | With Thermal Overload Protection |
Electrical Connection Type | Hardwire |
Maximum Viscosity | 20 cP |
Maximum Flow Rate | 100 gpm |
Flow Rate | |
@ 10 Feet of Head | 91 gpm |
@ 20 Feet of Head | 79 gpm |
@ 30 Feet of Head | 66 gpm |
@ 40 Feet of Head | 48 gpm |
@ 50 Feet of Head | 7 gpm |
Maximum Feet of Head | 52 ft. |
Maximum Pressure | 75 psi |
Temperature | |
Minimum | 40° F |
Maximum | 200° F |
Power | 1 1/2 hp |
Current | 16.6 amp/8.3 amp to 9 amp |
Intake | |
Location | Front |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 1 1/2 Female NPT |
Discharge | |
Location | Top |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 1 1/2 Female NPT |
Overall | |
Length | 16 1/2" |
Width | 8 7/8" |
Height | 9 1/2" |
Chemical Resistance | |
Excellent | Hydraulic Oil, Motor Oil, Water |
Moderate | Ethylene Glycol, Salt Water, Isopropyl Alcohol (100% Concentration) |
Poor | Acetone, Deionized Water, Diesel Fuel, Ethanol, Gasoline, Kerosene, Lacquer Thinner, Methanol (Methyl Alcohol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Mineral Spirits, Paint, Sodium Hypochlorite (Bleach), Xylene, Ammonium Hydroxide (100% Concentration), Hydrochloric Acid (20% Concentration), Hydrochloric Acid (37% Concentration), Hydrochloric Acid (100% Concentration), Nitric Acid (20% Concentration), Nitric Acid (50% Concentration), Nitric Acid (100% Concentration), Phosphoric Acid (<40% Concentration), Phosphoric Acid (≥40% Concentration), Sodium Hydroxide (Caustic Soda) (20% Concentration), Sodium Hydroxide (Caustic Soda) (50% Concentration), Sodium Hydroxide (Caustic Soda) (80% Concentration), Sulfuric Acid (<10% Concentration), Sulfuric Acid (10-75% Concentration), Sulfuric Acid (>75% Concentration) |
Duty Cycle | Continuous |
Environment | Harsh |
For Use With | Hydraulic Oil, Motor Oil, Water |
Frequency | 60 Hz |
Housing Material | Bronze |
Hydraulic Oil Maximum Viscosity | 20 cP |
Impeller Material | 300 Series Stainless Steel |
Maximum Self-Priming Height | 6 ft. |
Maximum Solids Diameter | 1/8" |
Motor Enclosure Type | Totally Enclosed Fan-Cooled (TEFC) |
Number of Mounting Holes | 4 |
Power Source | Electric |
Priming Type | Initial Fill |
Pump Style | Circulating |
Pump Type | Centrifugal |
Runs Dry | No |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Wetted Parts Material | Bronze, Carbon, Ceramic, Stainless Steel, Viton® Fluoroelastomer |
Wire Connection | Wire Leads |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 841370.2005 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
The motor is totally enclosed fan-cooled (TEFC) for use in dusty, dirty, and damp environments. Use these pumps to move water and lubricating oil in boiler feed systems, cooling towers, and heat exchangers. The housing rotates for vertical or horizontal discharge. Pumps are self-priming after you fill the pump chamber with liquid. As liquid in the chamber is expelled, a suction force is created, which allows the pump to draw liquid upward.
Note: Pumps must be filled with liquid before use. They need a constant flow of liquid and cannot run dry. If flow control is needed, place valves or reducers on the discharge side; never restrict the inlet of a pump with a valve or reducer.
