    Hard Viton® Fluoroelastomer O-Ring

    Chemical-Resistant, 3/32 Fractional Width, Dash Number 153

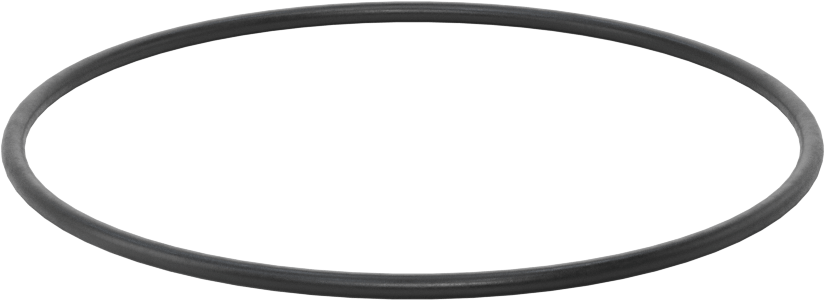

    Image of Product. Bottom orientation. Hard Viton® Fluoroelastomer O-Ring, Chemical-Resistant, 3/32 Fractional Width, Dash Number 153.

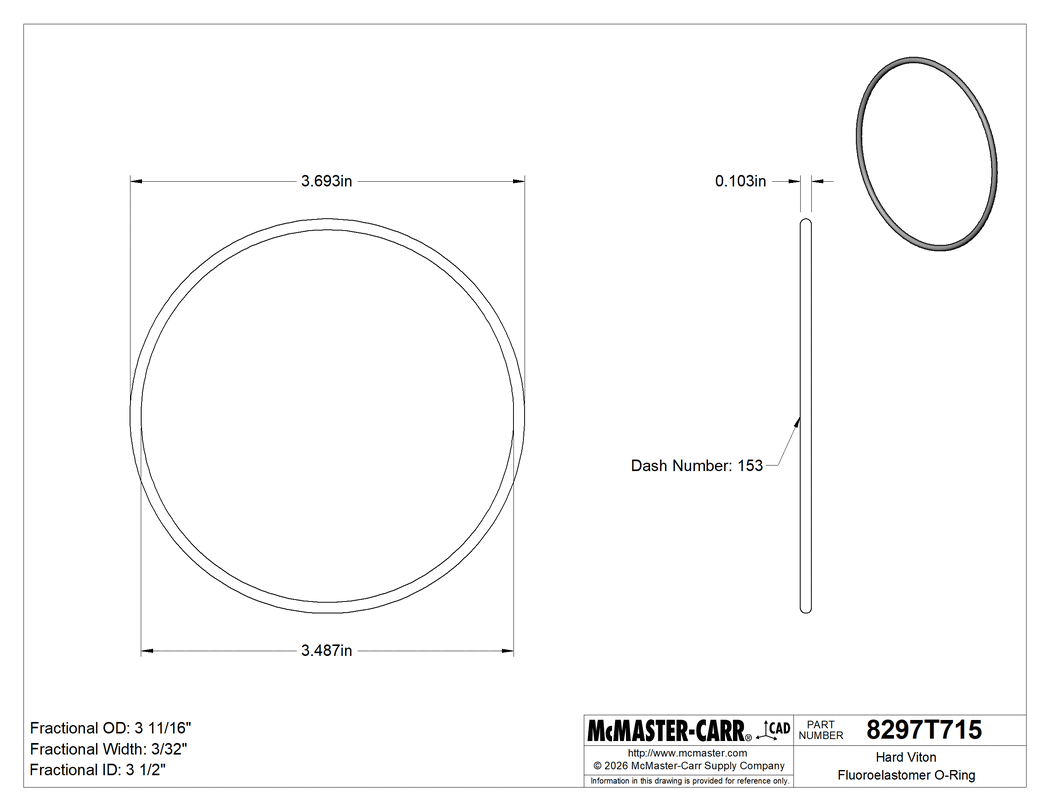

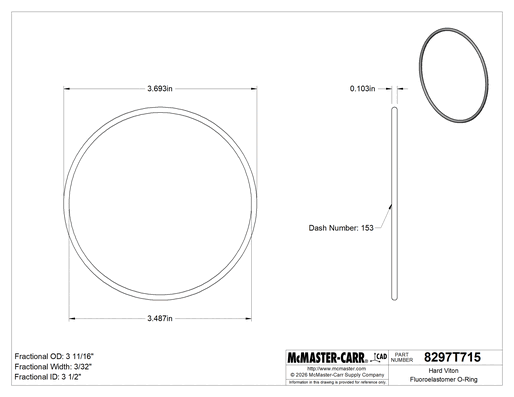

    Technical Drawing of Hard Viton® Fluoroelastomer O-Ring, Chemical-Resistant, 3/32 Fractional Width, Dash Number 153.
    Image of Product. Side1 orientation. Contains SizingReference. Hard Viton® Fluoroelastomer O-Ring, Chemical-Resistant, 3/32 Fractional Width, Dash Number 153.
    2-D PDF
    00000 per pack of 5
    8297T715
    In stock
    8297T715
    1-9 packs00000
    10 or more00000
    Pack of 5
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Fractional

    Width

    3/32

    ID

    3 1/2

    OD

    3 11/16

    Width

    0.103"

    Dash Number

    153

    ID

    3.487"

    OD

    3.693"

    Hardness

    Durometer 90A (Hard)

    Specifications Met

    ASTM D2000, SAE AS568, SAE J200

    Temperature Range

    0° F to 400° F

    Color

    Black

    Cross Section Shape

    Round

    Material

    Viton® Fluoroelastomer

    For Use With

    Transmission Fluid
    Animal Oil
    Benzene
    Boric Acid
    Butyl Alcohol
    Calcium Hydroxide
    Citric Acid
    Ethylene Glycol
    Glycerin
    Isopropyl Alcohol
    Mineral Oil
    Sodium Bicarbonate (Baking Soda)
    Vegetable Oil
    Water

    Performance

    Chemical Resistant

    System of Measurement

    Inch

    Country of Origin

    Thailand

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392690.4500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    With a 90A durometer, these O-rings are harder and more wear-resistant than standard Viton® fluoroelastomer O-rings. They hold up to the high pressures in fuel injectors and heavy duty hydraulic cylinders. They resist a wide range of chemicals, including benzene, butyl alcohol, and ethylene glycol. All have shelf life, a cure date, and a traceable lot number printed on the bag.
