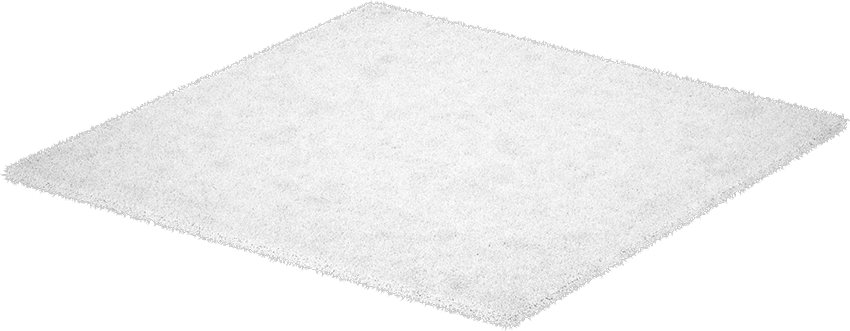

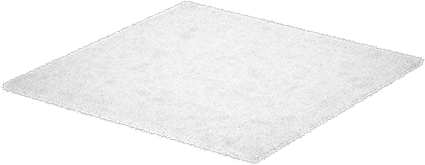

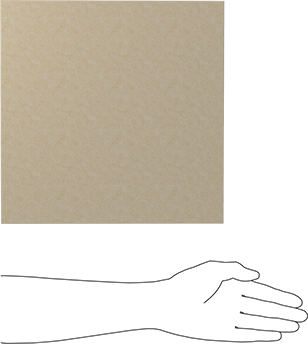

F1 Felt Sheet
Medium, Adhesive Backing, 12" X12", 1/8" Thick
2-D PDF
000000 each
8334K11
In stock
8334K11
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Wool Felt Grade | F1 |
Backing Type | Adhesive |
Width | 12" |
Length | 12" |
Thickness | 1/8" |
Wool Fiber Content | 95% |
Fabric Weight | 2.00 lb/yd² |
Hardness | Durometer 35A |
Pressure to Compress 10% | 21 psi |
Temperature Range | -80° F to 200° F |
Color | Off-White |
Adhesive Material | Rubber |
Adhesive Temperature Range | 0° F to 180° F |
Tensile Strength | 500 psi |
Hardness Maximum Tolerance | 5 |
Hardness Minimum Tolerance | -5 |
Hardness Rating | Medium |
Hardness Tolerance | -5 to 5 |
Material | Wool Felt |
Shape | Sheet, Strip |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 560221.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
This medium felt provides wear resistance when used for polishing, wicking, cushioning, wiping, and gasketing.
The higher the wool fiber content, the better the vibration absorption and abrasion resistance.

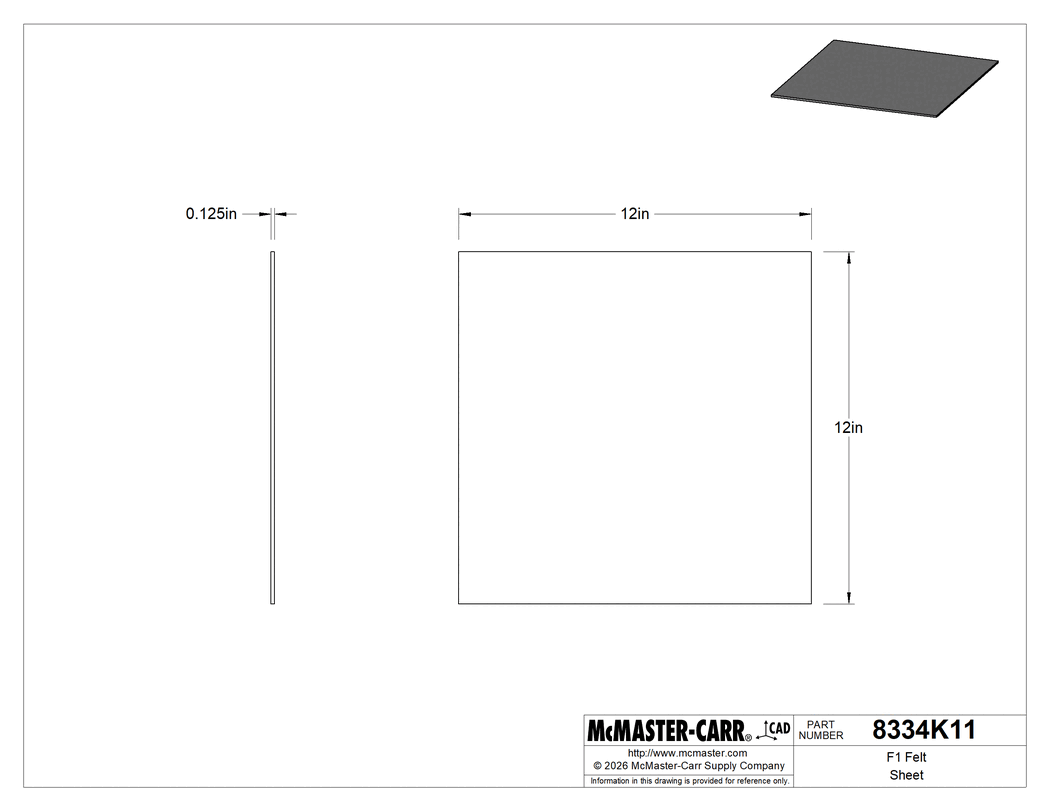

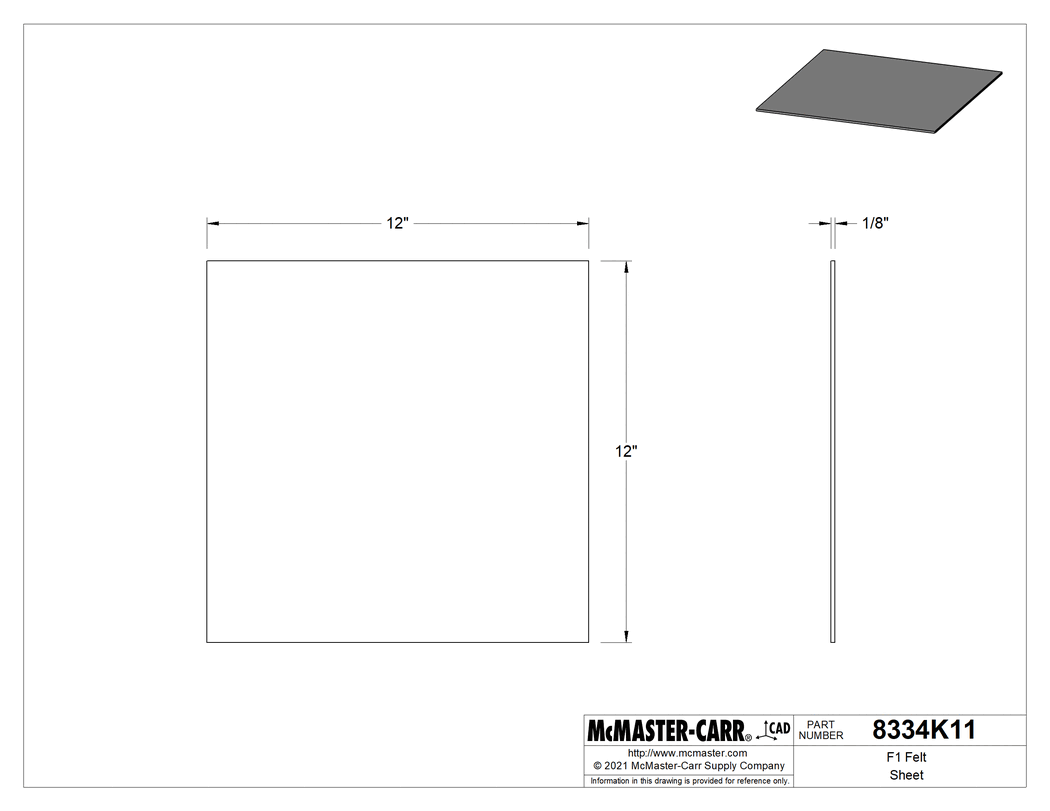

The information in this 3-D model is provided for reference only.
