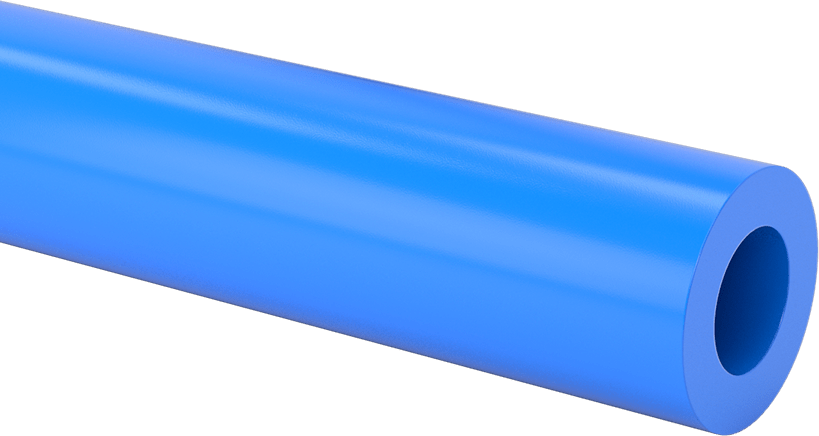

Heat-Stabilized Wear-Resistant Cast Nylon Tube
Easy-to-Machine, 1/2" Wall Thickness, 2-1/4" OD, 1 Foot Long
Tolerance Rating | Oversized |
Wall Thickness | 1/2" |
Length | 1 ft. |
Length Minimum Tolerance | Not Rated |
Length Maximum Tolerance | Not Rated |
OD | 2 1/4" |
OD Minimum Tolerance | Not Rated |
OD Maximum Tolerance | Not Rated |
ID | 1 1/4" |
ID Minimum Tolerance | Not Rated |
ID Maximum Tolerance | Not Rated |
Fabrication | Cast |
Minimum Temperature | Not Rated |
Maximum Temperature | 250° F |
Tensile Strength | 10,000 psi to 13,500 psi |
Impact Strength | 1 ft·lbf/in to 2.5 ft·lbf/in |
Color | Blue |
Chemical Resistance | |
Excellent | Acetone, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Water |
Not Recommended | Acetic Acid (White Vinegar), Chlorine, Hydrochloric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil |
Clarity | Opaque |
Coefficient of Friction | 0.26 |
Coefficient of Thermal Expansion | 5× 10^-5 /°F |
Comparable To | Nycast, Nylatron |
Dielectric Strength | 500 V/mil to 600 V/mil |
Environment | Outdoor |
Flexibility | Semi-Rigid |
Flexural Modulus | 420,000 psi to 500,000 psi |
For Use Outdoors | Yes |
For Use With | Acetone, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Hydraulic Fluid, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Water |
Hardness | Rockwell R110 to Rockwell R120 |
Hardness Rating | Hard |
Material | Nylon |
Material Grade | Nylon 6 |
Performance | Chemical Resistant, Extra High Strength, High Temperature, Machinable, Thermally Stable, Ultra Electrically Insulating, Ultra Low Friction, Wear Resistant |
Density | 0.041 lb/in³ to 0.043 lb/in³ |
Shape | Round Tube |
Texture | Smooth |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.5% to 0.6% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 391690.6000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
A good choice for making sprockets and pulleys, these cast nylon 6 tubes withstand higher temperatures and are easier to machine than standard nylon 6/6 tubes. This material is comparable to Nylatron and Nycast.
Oversized Tolerance—Oversized tubes have an oversized OD and an undersized ID for finishing to the sizes listed.

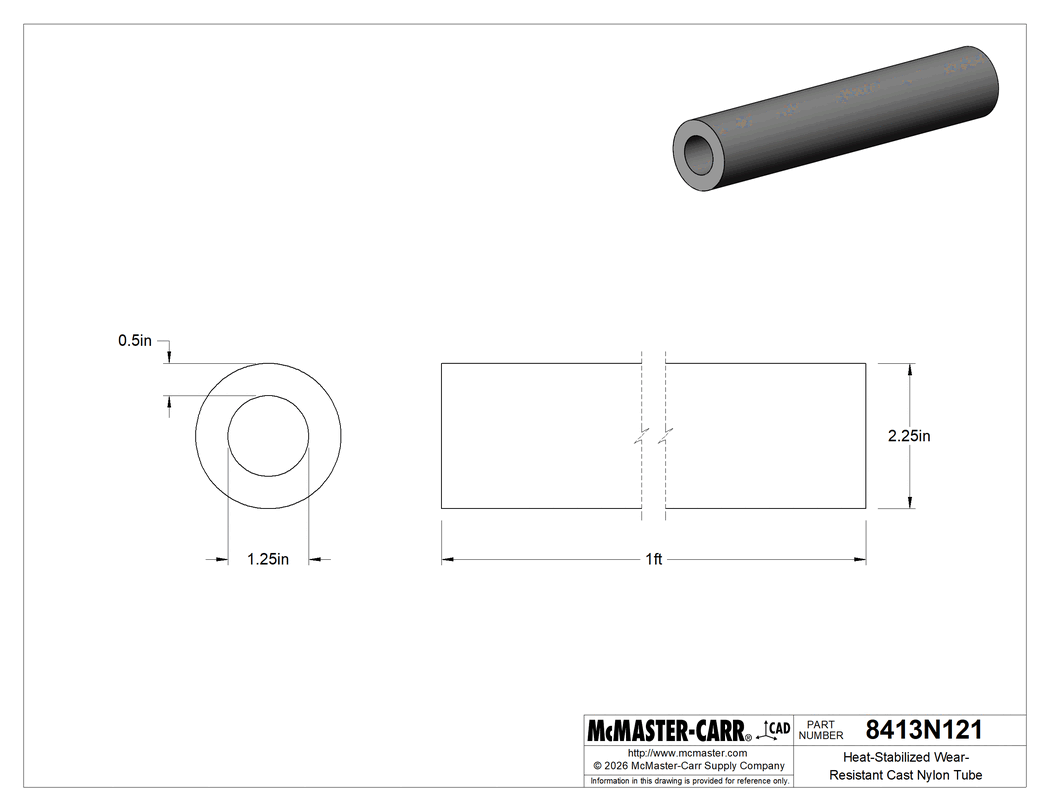

The information in this 3-D model is provided for reference only.
