    Carbon Steel Turnbuckle-Style Connecting Rod

    M8 x 1.25 mm Thread Size, 305 mm Overall Length

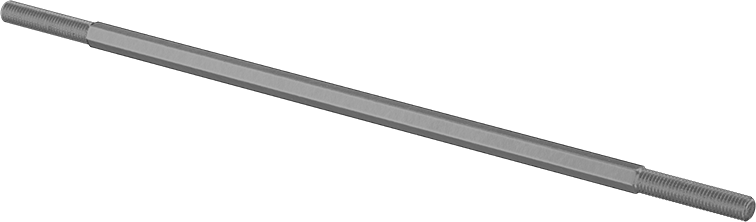

    Image of Product. Front orientation. Carbon Steel Turnbuckle-Style Connecting Rod, M8 x 1.25 mm Thread Size, 305 mm Overall Length.

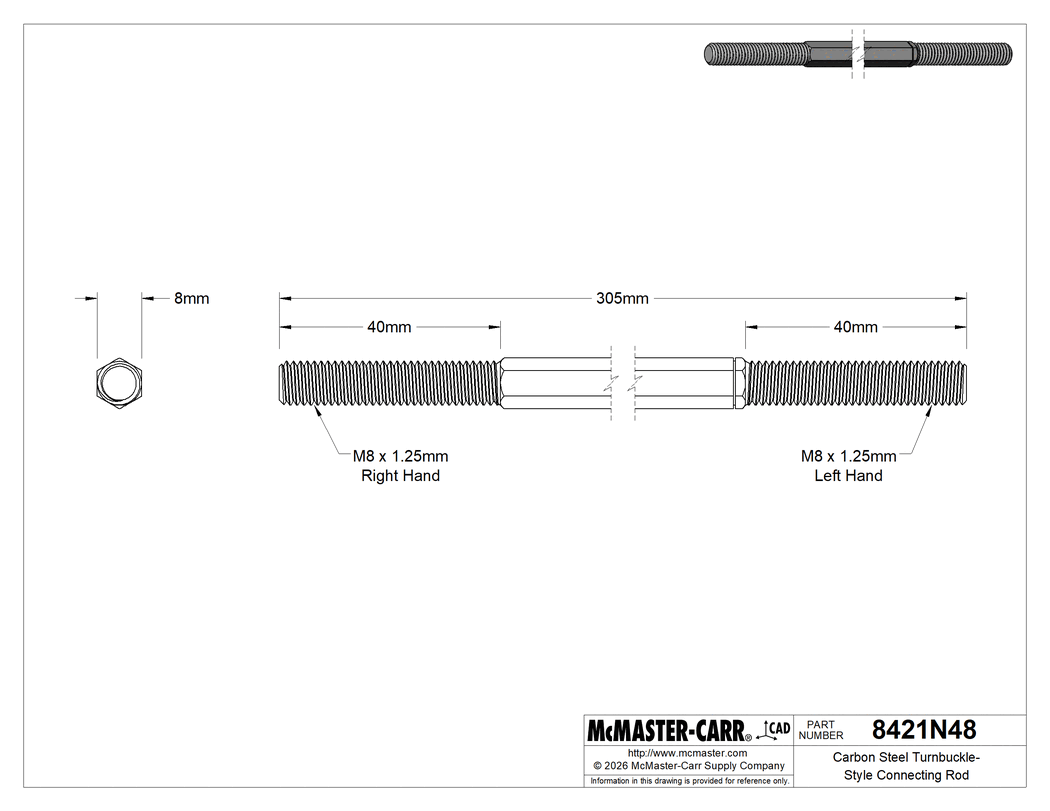

    Technical Drawing of Carbon Steel Turnbuckle-Style Connecting Rod, M8 x 1.25 mm Thread Size, 305 mm Overall Length.
    Image of System. Front orientation. Contains Annotated. Carbon Steel Turnbuckle-Style Connecting Rod, M8 x 1.25 mm Thread Size, 305 mm Overall Length.
    2-D PDF
    000000 each
    8421N48
    In stock
    8421N48
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Overall Length

    305 mm

    Material

    Carbon Steel

    Thread Size

    M8 × 1.25 mm

    Thread Length

    40 mm

    Hex Size

    8 mm

    Gender

    Male

    Rod Shape

    Hex

    System of Measurement

    Metric

    Thread Direction

    Right Hand and Left Hand

    Threading

    Threaded on Both Ends

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(a)

    Schedule B Number

    731815.5000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Similar to turnbuckles, these rods have right-hand threads on one end and left-hand threads on the other so you can make a linkage that adjusts for tension. Add right- and left-hand threaded rod ends to build your linkages. Rods have a hex-shaped body so you can adjust them with a wrench.

    Note: The end with the left-hand threads is marked with a groove.

    Carbon Steel—Carbon steel rods handle higher loads than aluminum and 18-8 stainless steel rods.
