    L-Handle Weld-on Retractable Spring Plunger

    with 0.24" Diameter Steel Nose

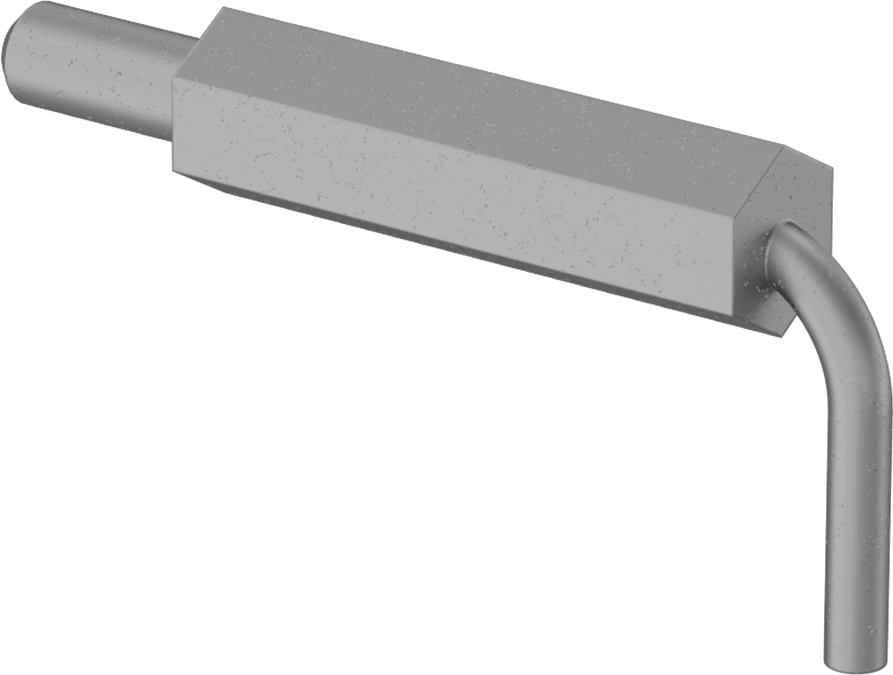

    Image of Product. Front orientation. L-Handle Weld-on Retractable Spring Plunger, with 0.24" Diameter Steel Nose.

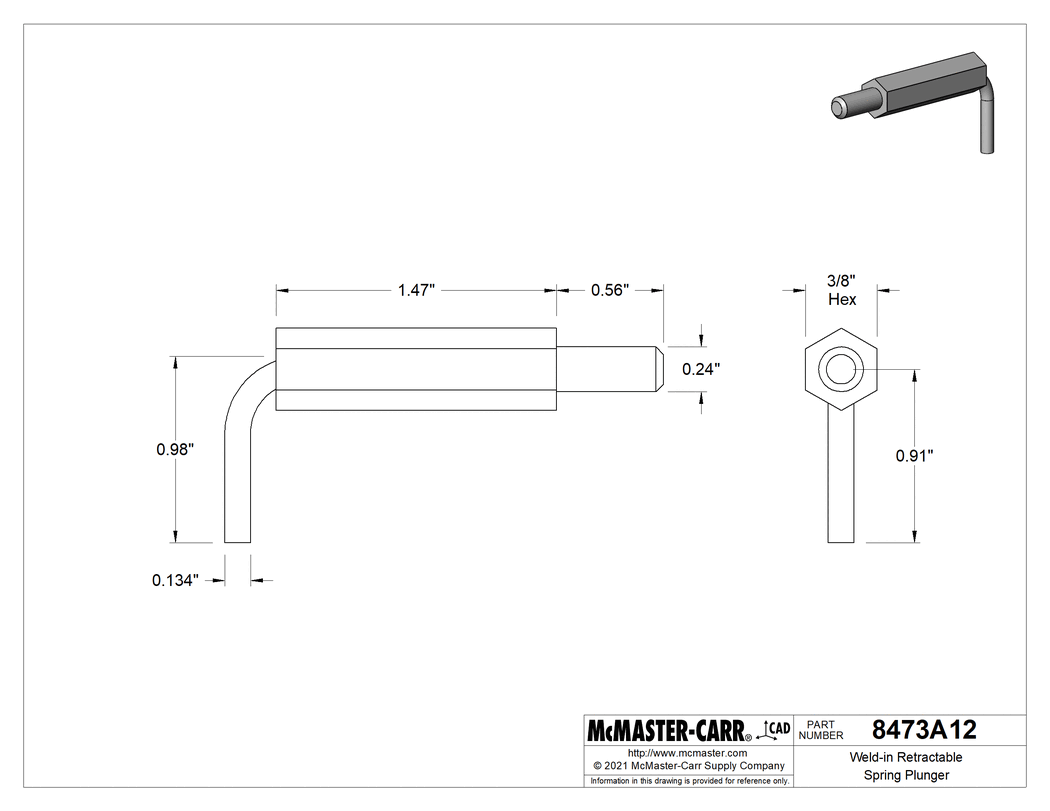

    Technical Drawing of L-Handle Weld-on Retractable Spring Plunger, with 0.24" Diameter Steel Nose.
    Image of Product. Front orientation. Contains Annotated. L-Handle Weld-on Retractable Spring Plunger, with 0.24" Diameter Steel Nose.
    2-D PDF
    000000 each
    8473A12
    In stock
    8473A12
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Fastener Head Type

    L-Handle

    Nose

    Extended Length

    0.56"

    Diameter

    0.24"

    Material

    Steel

    Type

    Long

    Nose Diameter Minimum Tolerance

    Not Rated

    Nose Diameter Maximum Tolerance

    Not Rated

    Plunger Locking Type

    Nonlocking

    Nose Force

    Extended

    0.8 lbf

    Compressed

    3.8 lbf

    Body

    Length

    1.47"

    Width

    0.375"

    Material

    Steel

    Handle

    Length

    1"

    Material

    Steel

    Locking Type

    Without Threadlocker

    Mount Type

    Weld On

    Performance

    Retractable

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    732690.8695

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Product

    The L-handle takes up less space than a T-handle and swivels to avoid obstacles. Give it a tug to manually retract the nose and make controlled adjustments. Since they weld in place, these spring plungers have the strongest hold for aligning, securing, and positioning components on heavy machinery. They can do everything from locking attachments on forklifts to holding dies in place on industrial presses.

    Steel NoseThe strongest, most wear-resistant noses, these won't deform from stress and vibration. Steel is best for dry environments, however, since moisture will cause it to rust.

    Compatible Products for This Spring Plunger

    The information in this 3-D model is provided for reference only.
