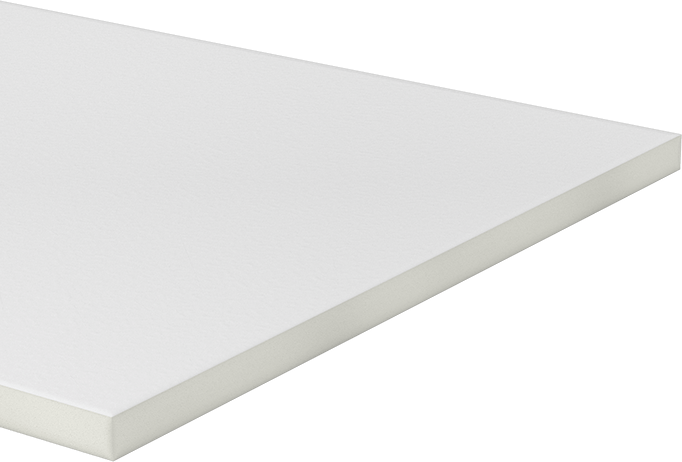

Lightweight PVC Foam
24" x 36" x 1", White
Texture | Smooth |
Thickness | 1" |
Thickness Tolerance | -0.065" to 0.033" |
Width | 24" |
Width Tolerance | -1/4" to 1/4" |
Length | 36" |
Length Tolerance | -1/4" to 1/4" |
Minimum Temperature | 15° F |
Maximum Temperature | 130° F |
Tensile Strength | 2,300 psi |
Impact Strength | 0.54 ft·lbf/in |
Color | White |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Coolant, Diesel Fuel, Gasoline, Hydrochloric Acid, Hydrogen Peroxide, Kerosene, Methanol (Methyl Alcohol), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Vegetable Oil, Water |
Moderate | Acetic Acid (White Vinegar), Sulfuric Acid |
Not Rated | Fuel Oil, Heating Oil, Hydraulic Fluid, Synthetic Oil |
Not Recommended | Acetone, Chlorine, Isopropyl Alcohol, Lacquer Solvents, Methyl Ethyl Ketone (MEK) |
Clarity | Opaque |
Coefficient of Friction | Not Rated |
Coefficient of Thermal Expansion | 3.7 × 10^-5 /°F |
Density | 0.023 lb/in³ |
Dielectric Strength | 180 V/mil |
Fabrication | Extruded |
Flammability Rating | UL 94 V-0 |
Flexibility | Flexible |
Flexural Modulus | 130,000 psi |
For Use Outdoors | No |
For Use With | Acetic Acid (White Vinegar), Coolant, Diesel Fuel, Gasoline, Hydrochloric Acid, Hydrogen Peroxide, Kerosene, Methanol (Methyl Alcohol), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Vegetable Oil, Water |
Hardness | Durometer 40D |
Hardness Rating | Medium Soft |
Material | PVC Foam |
Performance | Chemical Resistant, Easy Thermoform, Flame Retardant, Lightweight, Thermally Stable |
Shape | Sheet |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.5% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392112.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
Create signs and partitions with this easy to cut PVC foam. This material stands up to chemicals, including acids and alkalies.

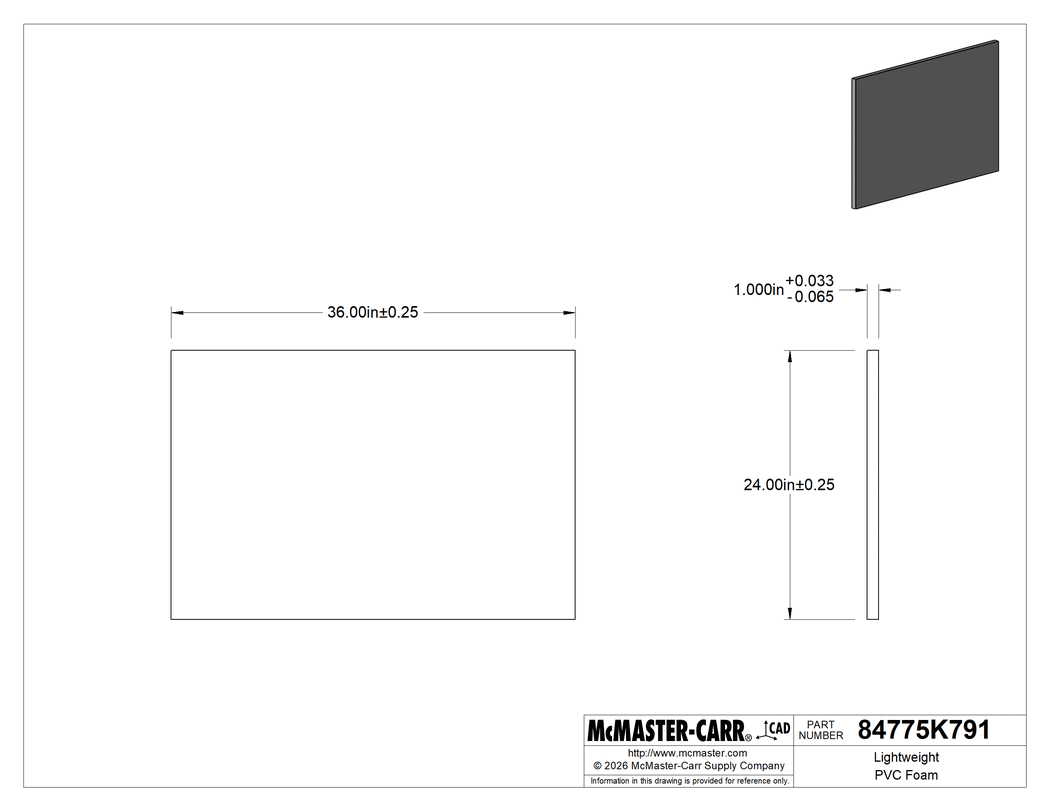

The information in this 3-D model is provided for reference only.
