    Press-Fit Drill Bushing

    0.25" ID, 1/2" OD, 1/2" Long

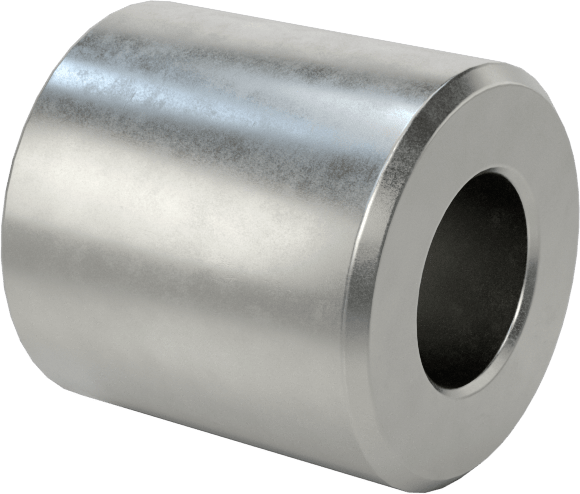

    Image of Product. Front orientation. Press-Fit Drill Bushing, 0.25" ID, 1/2" OD, 1/2" Long.

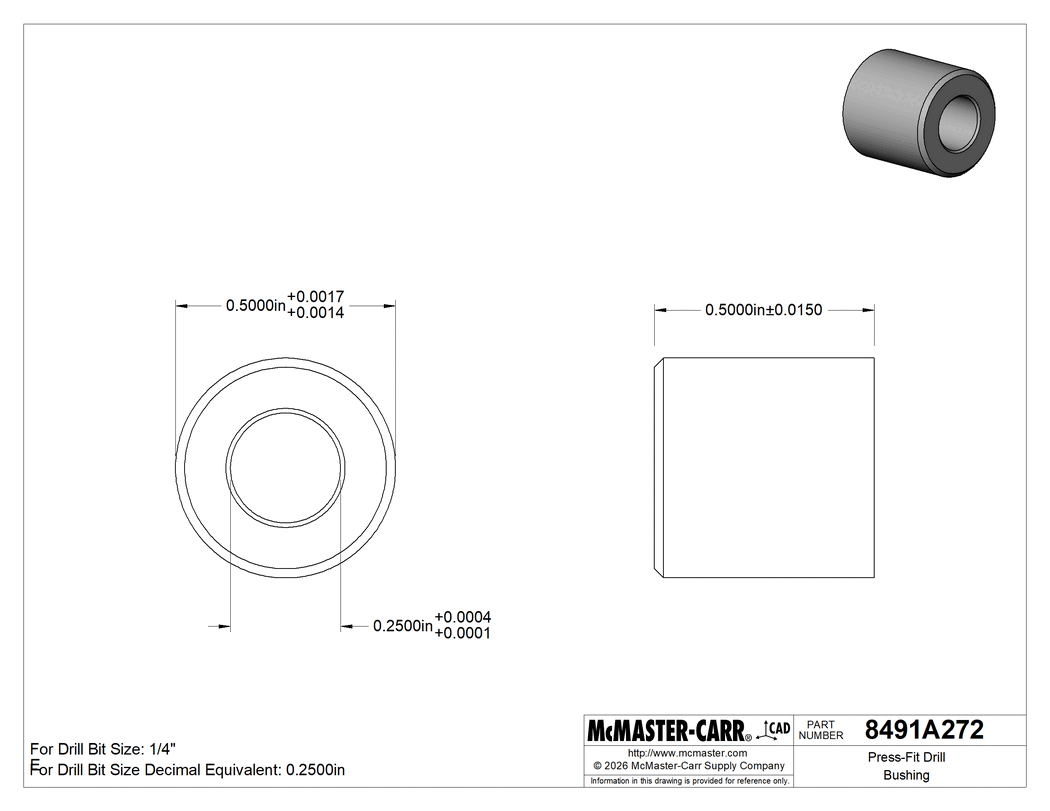

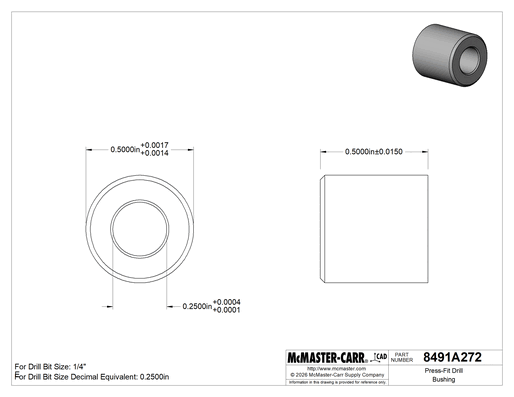

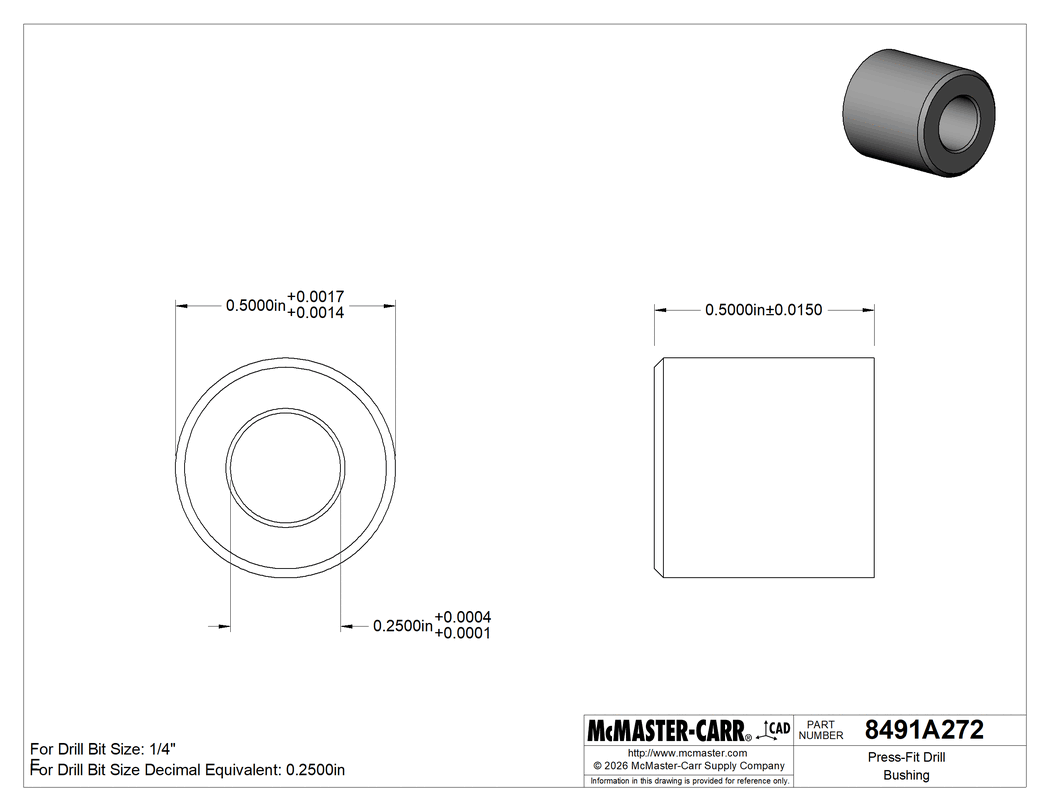

    Technical Drawing of Press-Fit Drill Bushing, 0.25" ID, 1/2" OD, 1/2" Long.
    Image of Product. Back orientation. Press-Fit Drill Bushing, 0.25" ID, 1/2" OD, 1/2" Long.

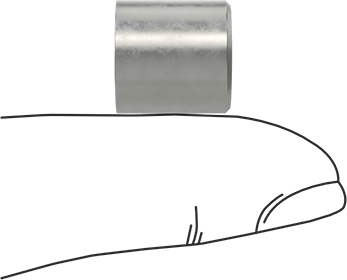

    Image of Product. Side1 orientation. Contains SizingReference. Press-Fit Drill Bushing, 0.25" ID, 1/2" OD, 1/2" Long.
    2-D PDF
    000000 each
    8491A272
    In stock
    8491A272
    1-9 each000000
    10-49 each000000
    50 or more000000
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    ID

    0.25"

    OD

    1/2"

    Length

    1/2"

    For Drill Bit Size

    1/4", E

    For Drill Bit Size Decimal Equivalent

    0.25"

    Tolerance

    ID

    0.0001" to 0.0004"

    OD

    0.0014" to 0.0017"

    Length

    -0.015" to 0.015"

    Drill Bushing Type

    P

    Material

    Steel

    Hardness

    Rockwell C61

    Drill Bushing Texture

    Smooth

    Installation Permanence

    Permanent

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    846620.8035

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Also known as jig bushings, these drill bushings fit inside fixture plate holes to precisely guide drill bits, counterbores, reamers, and other cutting tools. They improve accuracy so your drilled holes and cuts are consistent from part to part. Known for their versatility, drill bushings are also used as spacers, shims, and machinery bushings.

    Press into place with a manual or hydraulic press. Since these bushings are sized slightly larger than the hole for an extremely tight fit, they’ll stay put permanently. These are ANSI Type P bushings—also known as headless bushings—which means you don’t need to counterbore the hole to mount them flush.

    Don't see the size you need? Additional sizes are available.
