Clear Scratch- and UV-Resistant Cast Acrylic Sheet
6" x 12" x 2-1/2"
Thickness | 2 1/2" |
Thickness Tolerance | -0.181" to 0.079" |
Width | 6" |
Width Tolerance | -1/4" to 1/4" |
Length | 12" |
Length Tolerance | -1/4" to 1/4" |
Fabrication | Cast |
Temperature | -40° F to 170° F |
Tensile Strength | 10,000 psi to 11,250 psi |
Impact Strength | 0.3 ft·lbf/in to 0.4 ft·lbf/in |
Clarity | Clear |
Color | Clear |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Acetic Acid (White Vinegar), Diesel Fuel, Hydrochloric Acid, Kerosene, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Water |
Moderate | Chlorine, Coolant, Fuel Oil, Gasoline, Heating Oil, Isopropyl Alcohol, Sodium Hypochlorite (Bleach) |
Not Rated | Hydraulic Fluid, Synthetic Oil, Vegetable Oil |
Not Recommended | Acetone, Hydrogen Peroxide, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Nitric Acid, Sulfuric Acid |
Coefficient of Friction | 0.8 |
Coefficient of Thermal Expansion | 3.4 × 10^-5 /°F to 4.2 × 10^-5 /°F |
Comparable To | Acrylite, Lucite, Perspex, Plexiglas® Acrylic, Polycast |
Density | 0.043 lb/in³ |
Dielectric Strength | 400 V/mil to 500 V/mil |
Environment | Food and Beverage, Outdoor, Sanitary |
Flexibility | Semi-Rigid |
Flexural Modulus | 450,000 psi to 470,000 psi |
Food Industry Standard | FDA Compliant 21 CFR 177.1010 |
For Use Outdoors | Yes |
For Use With | Beverage, Food, Acetic Acid (White Vinegar), Chlorine, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydrochloric Acid, Isopropyl Alcohol, Kerosene, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Water |
Hardness | Rockwell M94 to Rockwell M100 |
Hardness Rating | Hard |
Light Transmission | 92% |
Material | Acrylic Plastic |
Performance | Clear, Easy Thermoform, Extra High Strength, Highly Electrically Insulating, Machinable, Scratch Resistant, Thermally Stable, UV Resistant |
Shape | Bar, Sheet |
Texture | Smooth Texture |
Tolerance Rating | Standard |
USP Class | VI |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.2% to 0.33% |
Country of Origin | Thailand |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392051.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
These cast acrylic sheets are often fabricated into tanks, see-through barrier panels, and light fixture lenses. Cast acrylic, which is comparable to Lucite and Plexiglas® acrylic, is easier to machine than extruded acrylic. The material is scratch resistant and stands up to outdoor use better than polycarbonate. It maintains clarity over time and won't weaken from exposure to UV, though the pigment in colored acrylic will fade over time when exposed to direct sunlight.

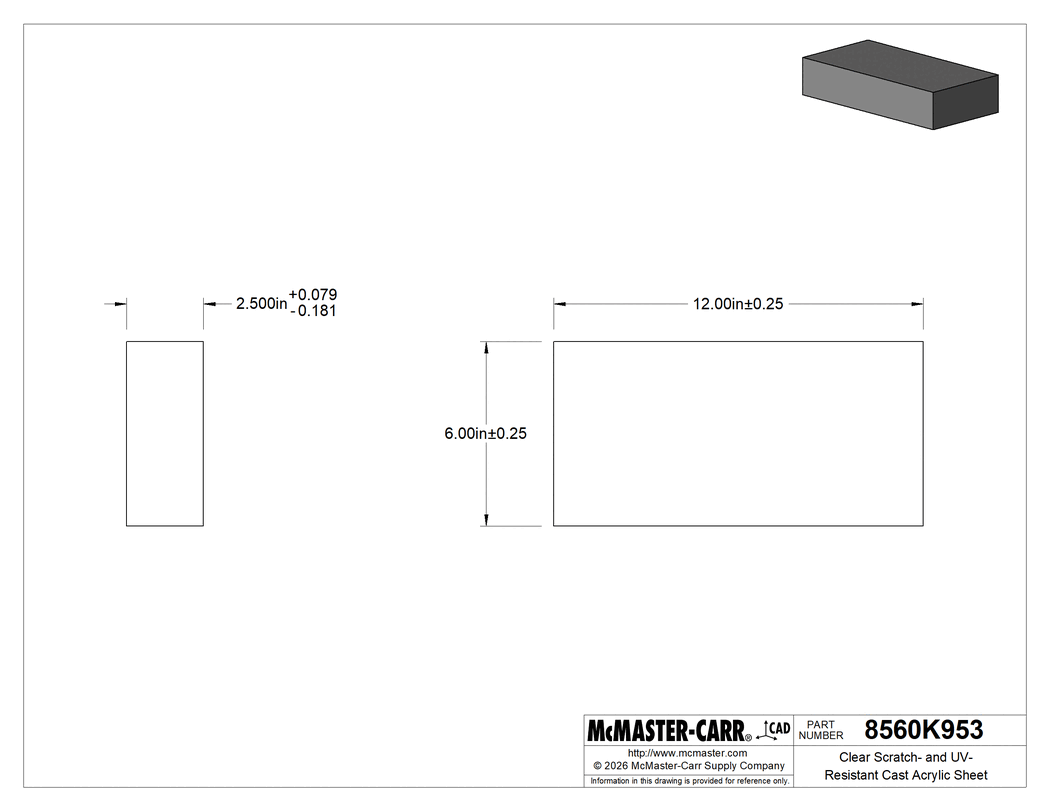

The information in this 3-D model is provided for reference only.
