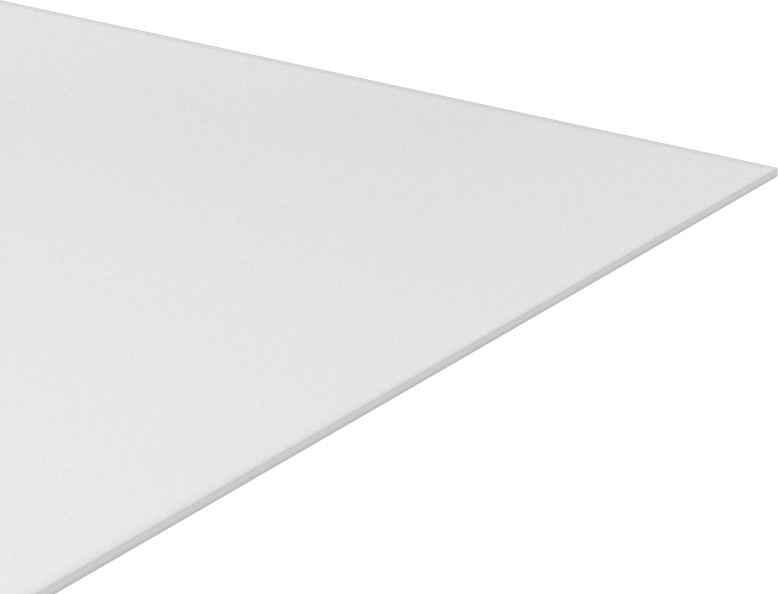

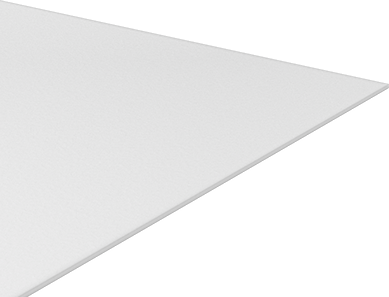

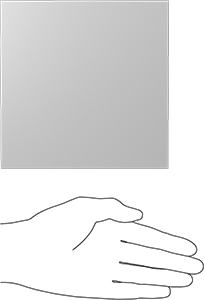

Glass-Filled Chemical-Resistant Slippery PTFE Sheet
6" x 6" x 1/32"
Thickness | 1/32" |
Thickness Tolerance | -0.00313" to 0.00313" |
Width | 6" |
Width Tolerance | -1/4" to 1/4" |
Length | 6" |
Length Tolerance | -1/4" to 1/4" |
Fabrication | Skived |
Minimum Temperature | -350° F |
Maximum Temperature | 500° F |
Clarity | Opaque |
Color | Off-White |
Flammability Rating | UL 94 V-0 |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Acetic Acid (White Vinegar), Acetone, Chlorine, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Not Recommended | Sodium Hydroxide (Caustic Soda) |
Coefficient of Friction | 0.12 to 0.15 |
Coefficient of Thermal Expansion | 3× 10^-5 /°F to 8× 10^-5 /°F |
Dielectric Strength | 235 V/mil |
Environment | Outdoor |
Filler Material | Glass |
Flexibility | Semi-Rigid |
Flexural Modulus | 190,000 psi to 240,000 psi |
For Use Outdoors | Yes |
For Use With | Acetic Acid (White Vinegar), Acetone, Chlorine, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Hardness | Durometer 55D to Durometer 66D |
Hardness Rating | Medium Soft |
Material | PTFE |
Maximum Coefficient of Friction | 0.15 |
Maximum Flexural Modulus | 240,000 psi |
Minimum Coefficient of Friction | 0.12 |
Minimum Flexural Modulus | 190,000 psi |
Percentage of Filler Material | 25% |
Performance | Chemical Resistant, Flame Retardant, Machinable, Thermally Stable, Ultra High Temperature, Ultra Low Friction, Ultra Moisture Resistant, Ultra-Low Temperature, Wear Resistant |
Texture | Smooth |
Density | 0.08 lb/in³ |
Shape | Sheet |
Tensile Strength | 1,000 psi to 2,500 psi |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.013% , 0.013% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392190.5050 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
These glass-filled PTFE sheets offer increased rigidity over standard PTFE sheets for durability in high-stress applications. They’ll also resist expanding when exposed to water and heat, so you can machine them to close tolerances. PTFE is known for its naturally slippery surface, as well as its superior resistance to chemicals and extreme temperatures.
Skived—Skived products are more likely to curl than extruded and molded products.

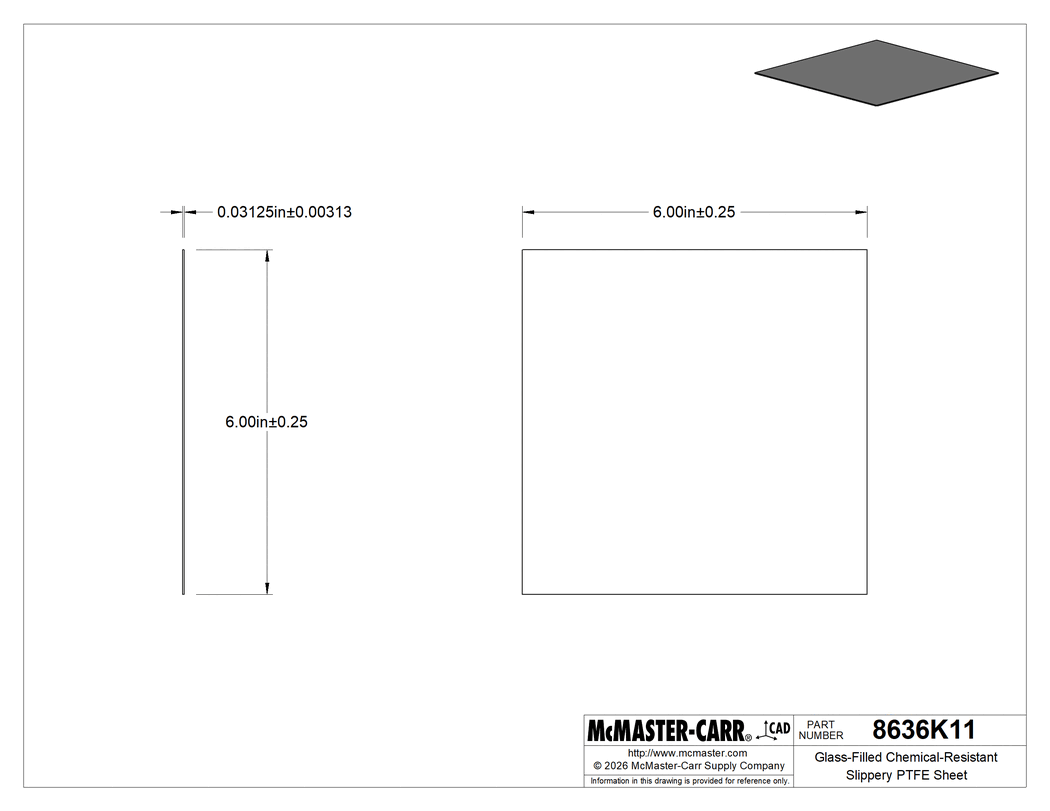

The information in this 3-D model is provided for reference only.
