    Flame-Retardant Garolite G-10/FR4 Rod

    Green, 2" Diameter

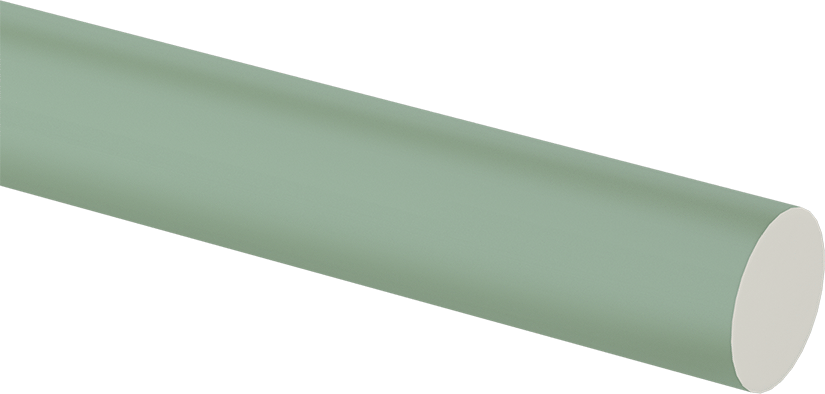

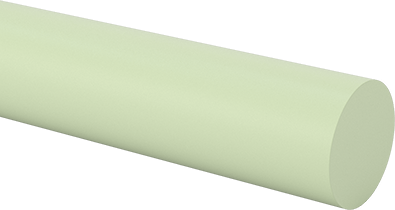

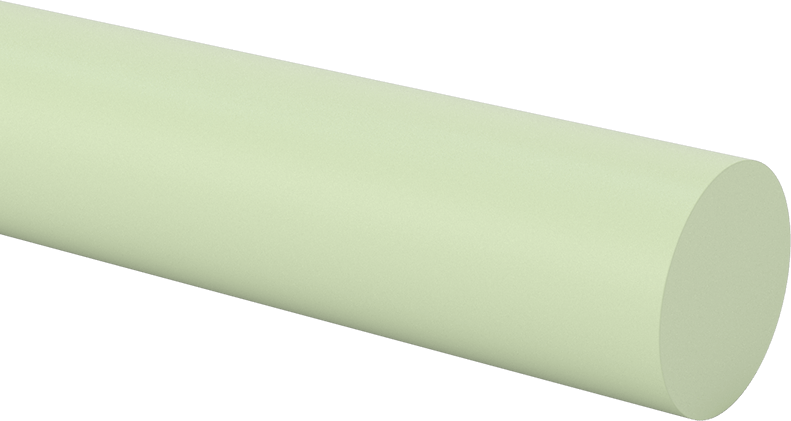

    Image of Product. Front orientation. Flame-Retardant Garolite G-10/FR4 Rod, Green, 2" Diameter.

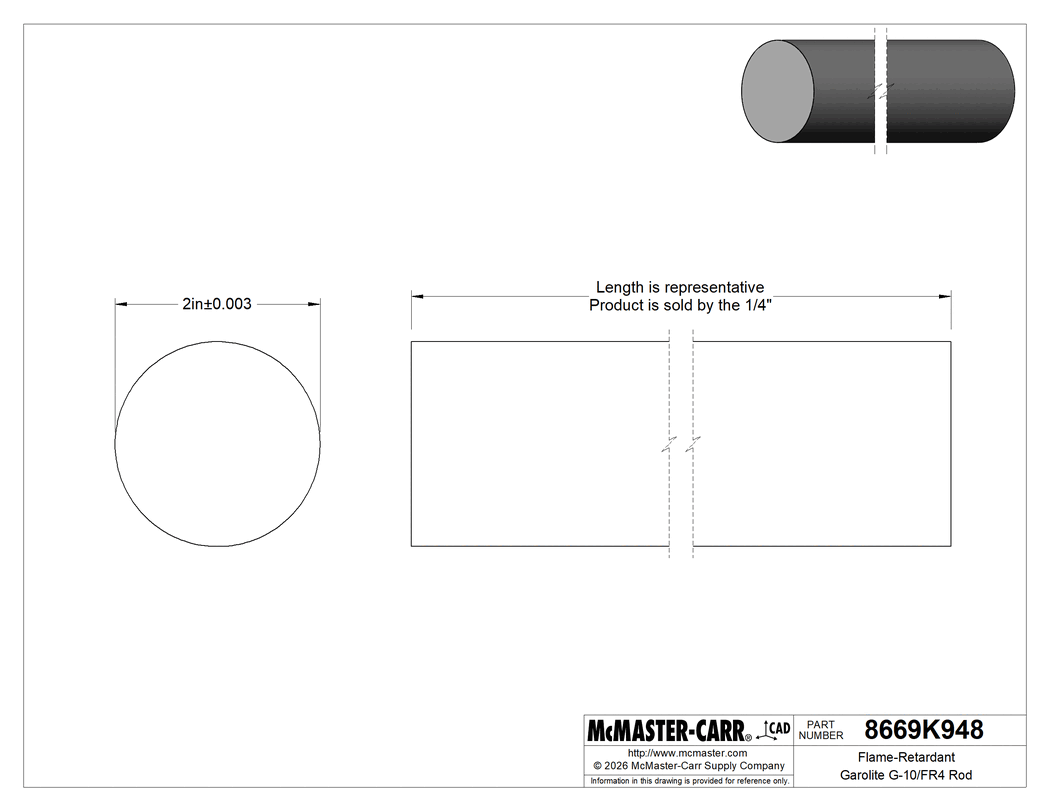

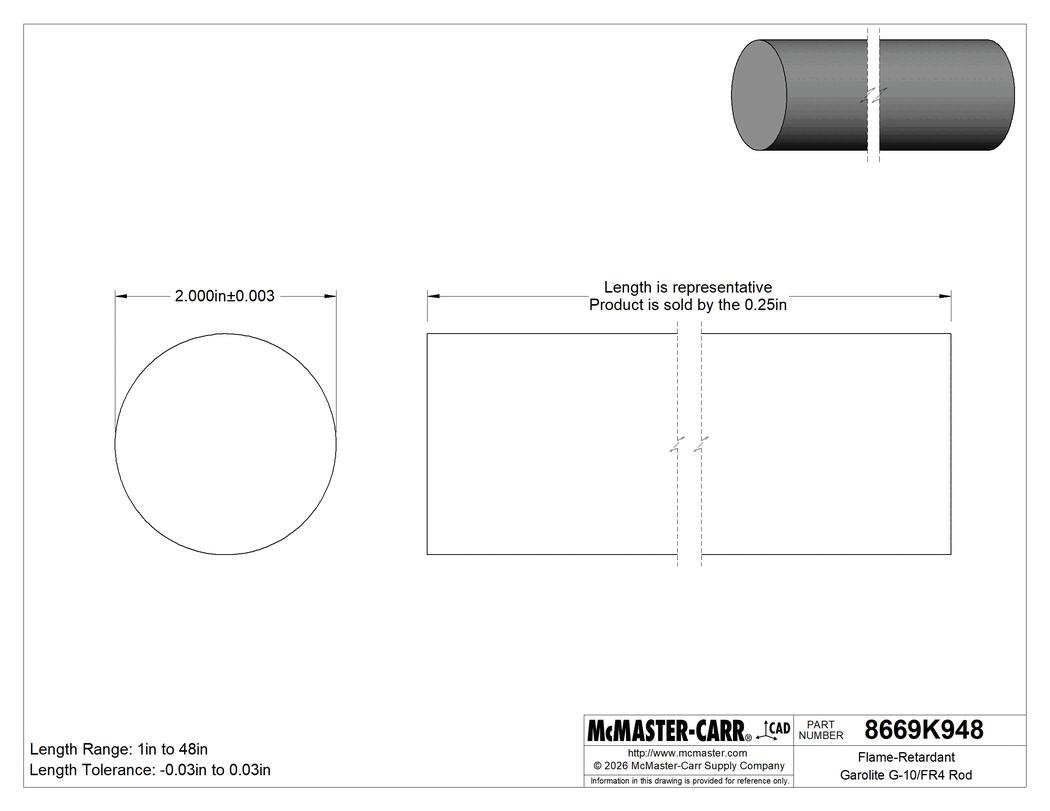

    Technical Drawing of Flame-Retardant Garolite G-10/FR4 Rod, Green, 2" Diameter.
    2-D PDF
    00000 per in.
    8669K948
    Choose a Length between 1.00" and 48.00" in 0.25" increments.
    Ships by next week
    Choose a Length between 1.00" and 48.00" in 0.25" increments.
    1.00"
    1.25"
    1.50"
    1.75"
    2.00"
    2.25"
    2.50"
    2.75"
    3.00"
    3.25"
    3.50"
    3.75"
    4.00"
    4.25"
    4.50"
    8669K948
    00000 per in.
    Each
    Ships by next week
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Performance

    Cut-to-Length, Extreme Strength, Flame Retardant, High Strength, High Temperature, Highly Absorbent, Highly Electrically Insulating, Moisture Resistant, Ultra Impact Resistant

    Shape

    Rod, Disc

    Color

    Green

    Diameter

    2"

    Diameter Tolerance

    -0.003" to 0.003"

    Temperature Range

    -100° F to 245° F

    Tensile Strength

    35,000 psi to 50,000 psi

    Impact Strength

    5.5 ft·lbf/in to 12 ft·lbf/in

    Hardness

    Rockwell M115

    Hardness Rating

    Extra Hard

    For Use Outdoors

    Yes

    Military Specification

    MIL-I-24768/27

    Flammability Rating

    UL 94 V-0

    Choose a Length

    1.00" to 48.00"

    Length Tolerance

    -0.03" to 0.03"

    Application

    Multipurpose

    Backing Type

    Plain

    Certificate Form

    Digital

    Certificate Type

    Material Certificate with Traceable Lot Number

    Clarity

    Opaque

    Compressive Strength Range

    35,000 psi to 66,000 psi

    Density

    0.1 lb/in³

    Dielectric Strength

    350 V/mil to 800 V/mil

    Environment

    Outdoor

    Flexibility

    Rigid

    Flexural Strength

    45,000 psi to 60,000 psi

    Length Increment

    1/4"

    Material

    Garolite

    Material Grade

    Garolite G-10/FR4

    Reinforcement Material

    Fiberglass Fabric

    Resin Material

    Epoxy

    Straightness Tolerance

    Not Rated

    Texture

    Smooth

    Tolerance Rating

    Standard

    Warning Message

    Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes.

    Water Absorption

    0.1% to 0.15%

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    391690.6000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Additional Specifications

    SDS

    Made of a flame-retardant epoxy resin with fiberglass fabric reinforcement, these G-10/FR4 rods are a good all-around choice. They are strong, machinable, and electrically insulating. Garolite G-10/FR4 is also called epoxy-grade industrial laminate and phenolic.

    If you don’t see the size you’re looking for, please specify a length under additional rod lengths.
