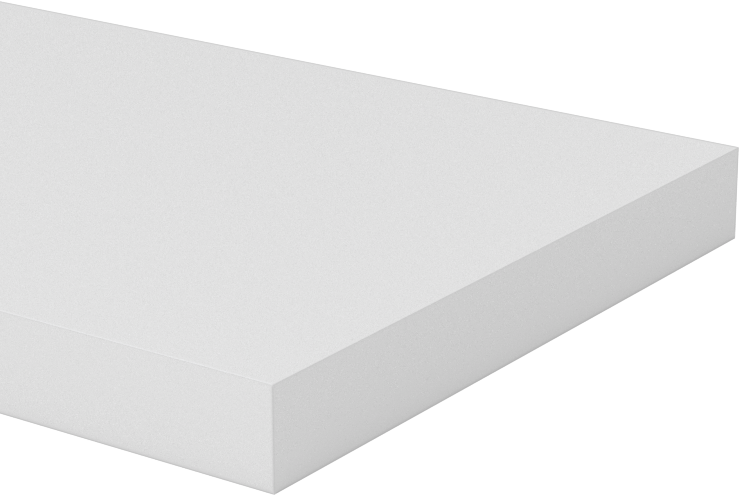

Moisture-Resistant HDPE Bar
2" Wide x 1/4" Thick x 4 Feet Long
Thickness | 1/4" |
Thickness Tolerance | -0.013" to 0.013" |
Width | 2" |
Width Tolerance | 0" to 1/16" |
Length | 4 ft. |
Fabrication | Extruded |
Minimum Temperature | Not Rated |
Maximum Temperature | 180° F |
Tensile Strength | 3,920 psi to 4,200 psi |
Impact Strength | 1.1 ft·lbf/in to 1.94 ft·lbf/in |
Clarity | Semi-Clear |
Color | White |
Flammability Rating | UL 94 HB |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Acetic Acid (White Vinegar), Coolant, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Methanol (Methyl Alcohol), Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach) |
Moderate | Chlorine, Fuel Oil, Gasoline, Kerosene, Lacquer Solvents, Nitric Acid, Sulfuric Acid |
Not Rated | Diesel Fuel, Heating Oil, Hydraulic Fluid, Synthetic Oil, Vegetable Oil, Water |
Not Recommended | Acetone, Methyl Ethyl Ketone (MEK) |
Coefficient of Friction | 0.31 |
Coefficient of Thermal Expansion | 6× 10^-5 /°F to 7.9 × 10^-5 /°F |
Comparable To | Hitec, Sanalite, Sanatec |
Density | 0.035 lb/in³ |
Dielectric Strength | 450 V/mil to 510 V/mil |
Environment | Food and Beverage |
Flexibility | Flexible |
Flexural Modulus | 120,000 psi to 225,000 psi |
Food Industry Standard | FDA Compliant 21 CFR 177.1520 |
For Use Outdoors | No |
For Use With | Beverage, Food, Acetic Acid (White Vinegar), Chlorine, Coolant, Fuel Oil, Gasoline, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid |
Hardness | Rockwell R40 to Rockwell R80 |
Hardness Rating | Medium |
Material | HDPE |
Performance | Chemical Resistant, Flame Retardant, Highly Electrically Insulating, Highly Moisture Resistant, Low Friction, Wear Resistant |
Shape | Bar |
Specifications Met | ASTM D4976 |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.05% , 0.05% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392010.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
Practically nonabsorbent, these bars won't swell when exposed to water. They’re harder and denser than LDPE, plus they’re more chemical resistant. They are often machined into plugs, seals, and containers.

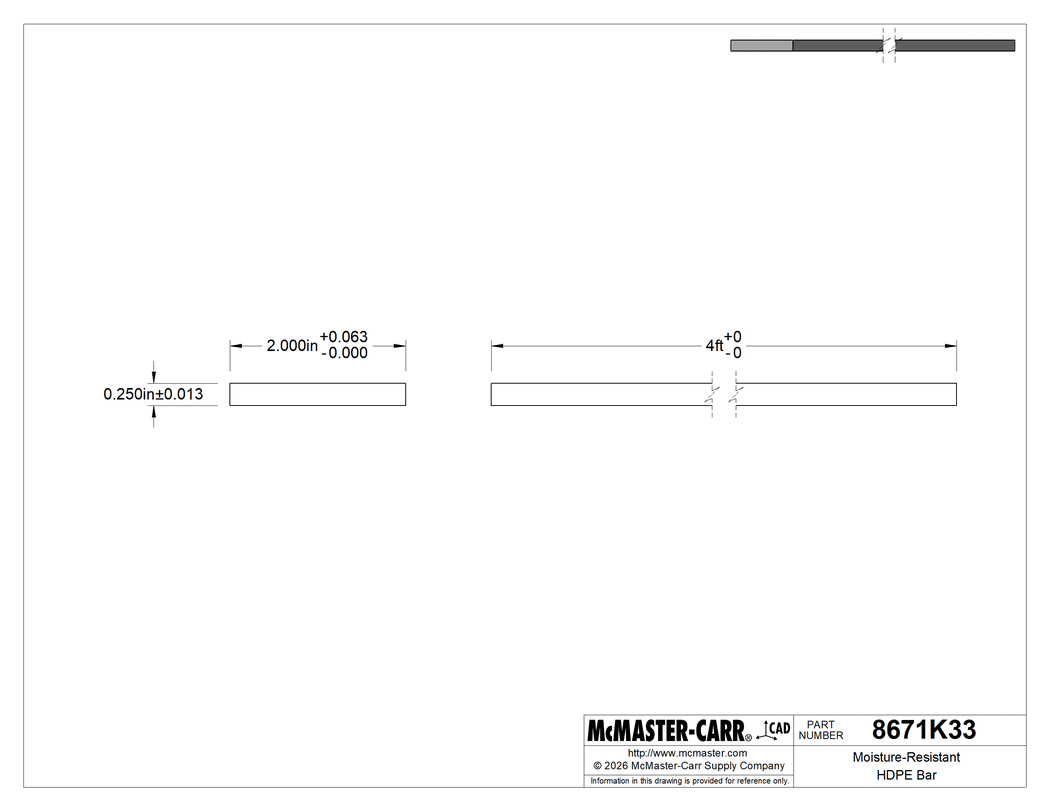

The information in this 3-D model is provided for reference only.
