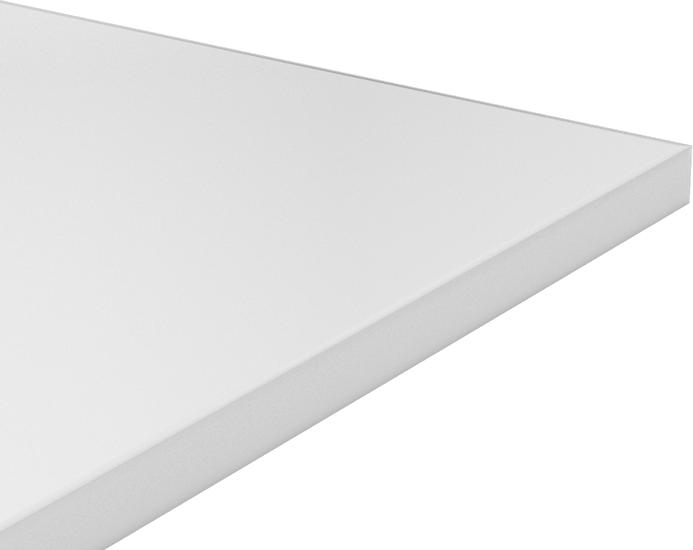

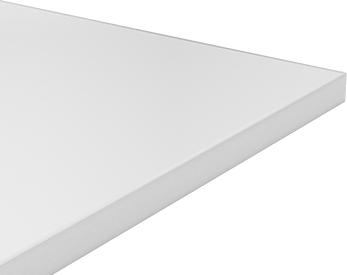

Slippery White UHMW Polyethylene Sheet
12" x 12" x 1/2"
Color | White |
Thickness | 1/2" |
Thickness Tolerance | -0.07" to 0.07" |
Width | 12" |
Width Tolerance | -1/8" to 1/8" |
Length | 12" |
Length Tolerance | -1/8" to 1/8" |
Fabrication | Extruded |
Minimum Temperature | -40° F |
Maximum Temperature | 180° F |
Tensile Strength | 4,350 psi to 5,800 psi |
Impact Strength | 16.8 ft·lbf/in |
Flammability Rating | UL 94 HB |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Acetic Acid (White Vinegar), Acetone, Coolant, Diesel Fuel, Fuel Oil, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Moderate | Chlorine |
Not Rated | Gasoline |
Not Recommended | Nitric Acid |
Clarity | Opaque |
Coefficient of Friction | 0.1 to 0.2 |
Coefficient of Thermal Expansion | 7.8 × 10^-5 /°F to 1.1 × 10^-4 /°F |
Comparable To | Duravar, Lennite, Polystone, TIVAR |
Density | 0.034 lb/in³ |
Dielectric Strength | 2,280 V/mil to 2,300 V/mil |
Environment | Food and Beverage |
Flexibility | Flexible |
Flexural Modulus | 80,000 psi to 110,000 psi |
Food Industry Standard | FDA Compliant 21 CFR 177.1520 |
For Use Outdoors | No |
For Use With | Acetic Acid (White Vinegar), Acetone, Chlorine, Coolant, Diesel Fuel, Fuel Oil, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Hardness | Durometer 65D to Durometer 67D |
Hardness Rating | Medium |
Material | UHMW Polyethylene |
Performance | Chemical Resistant, Flame Retardant, Ultra Electrically Insulating, Ultra Impact Resistant, Ultra Low Friction, Ultra Moisture Resistant, Wear Resistant |
Shape | Sheet |
Specifications Met | ASTM D4020, ASTM D6712 |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.01% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392010.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
In addition to having a low-friction surface that prevents sticking and binding, this tough, impact- and wear-resistant material handles the scuffs, scrapes, and strikes that other plastic can’t. These sheets are often used to make machine guards and chute liners. They are all FDA compliant for direct food contact.
If you don't see the size of white sheet you're looking for, check out our Made-to-Order UHMW Polyethylene Sheets.

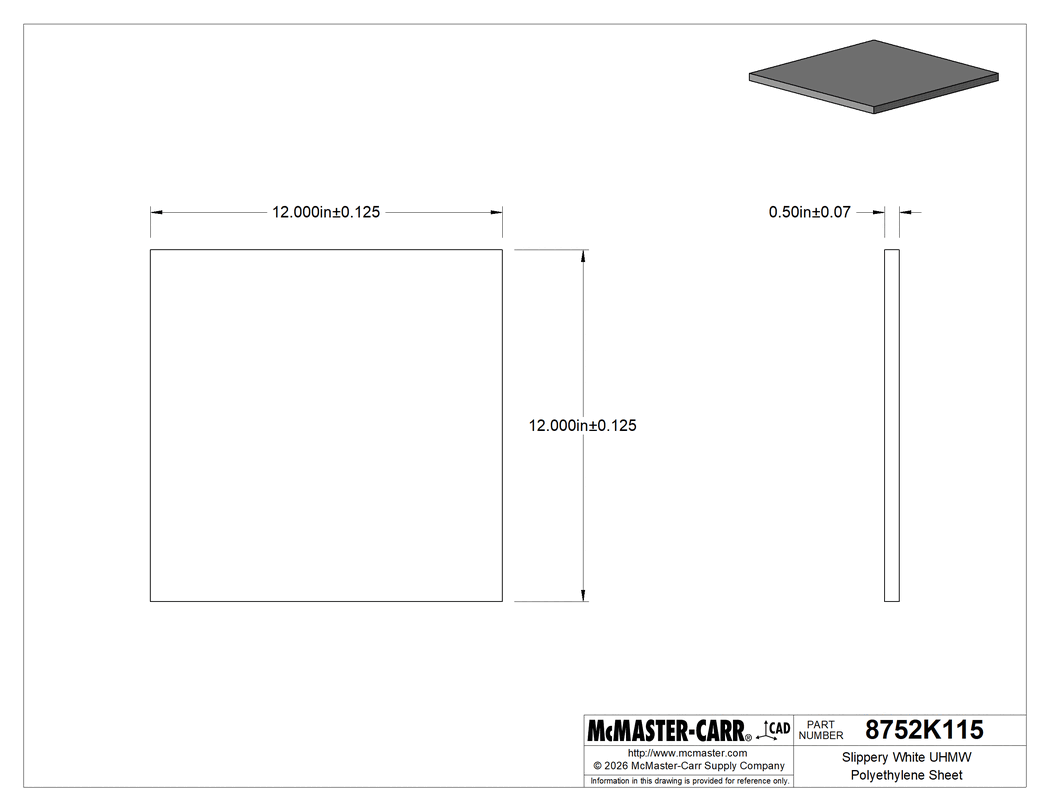

The information in this 3-D model is provided for reference only.
