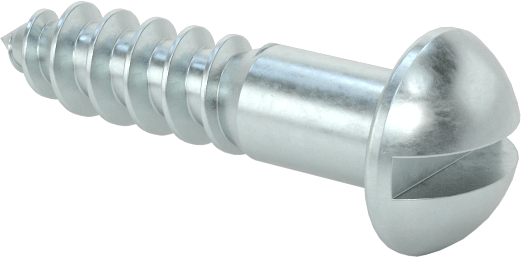

Slotted Decorative Rounded Head Screws
for Wood, Zinc-Plated Steel, Number 4 Size, 1/2" Long
Tip Type | Pointed |
Drive Style | Slotted |
Fastener Head Type | Rounded |
Rounded Head Style | Round |
For Use In | Wood |
Material | Zinc-Plated Steel |
Screw Size | No. 4 |
Length | 1/2" |
Head | |
Diameter | 0.211" |
Height | 0.086" |
Softwood Drill Bit Size | 3/64" |
Hardwood Drill Bit Size | 1/16" |
Rounded Head Profile | Standard |
Approximate Threads per Inch | 22 |
Threading | Partially Threaded |
Tapping Method | Thread Forming |
Hardwood Drill Bit Size Decimal Equivalent | 0.063" |
Minimum Thread Length | 0.333" |
Screw Size Decimal Equivalent | 0.112" |
Shank Cross Section | Round |
Softwood Drill Bit Size Decimal Equivalent | 0.047" |
System of Measurement | Inch |
Thread Direction | Right Hand |
Country of Origin | United States, Belgium, Canada, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Mexico, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731812.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
With a domed head, these screws add a finishing touch to brackets and architectural applications. With only two contact points, it's best to hand tighten the slotted drive instead of using power tools.
Drill a pilot hole slightly smaller than the screw to prevent splitting. Length is measured from the top of the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

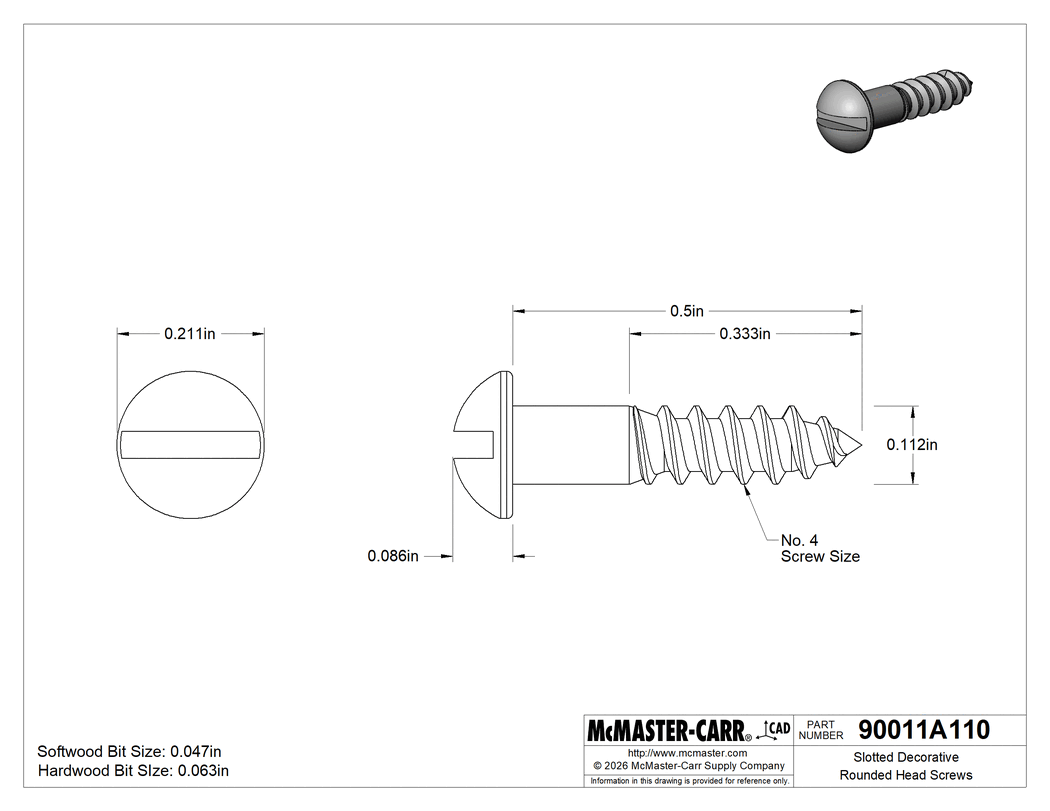

The information in this 3-D model is provided for reference only.
