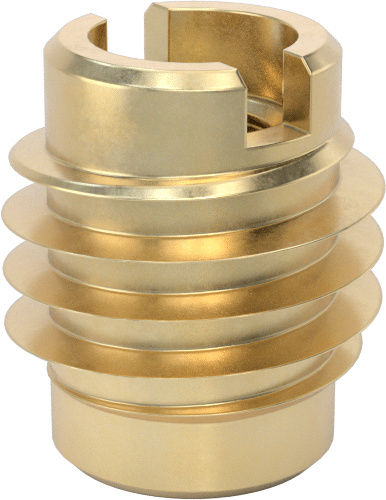

Brass Tapping Inserts for Hardwood
8-32 Thread Size
Threaded Insert Type | Tapping |
Material | Brass |
Thread Size | 8-32 |
Installed Length | 0.375" |
Drill Bit Size | 17/64" |
For Maximum Hole Diameter | 0.266" |
Drive Style | Slotted |
End Type | Open |
For Minimum Material Thickness | 3/8" |
For Use In | Hardwood |
Performance | Conductive, Corrosion Resistant, Nonmagnetic |
Profile | Standard |
System of Measurement | Inch |
Tensile Strength | 40,000 psi |
Thread Direction | Right Hand |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Coarse |
Thread Type | UNC |
Threaded Insert Securing Type | External Thread |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 741539.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Product |
The sharp threads on these inserts cut into hardwood for a secure hold. They install in one step, so they’re ideal for quickly creating a lot of threaded connections in wooden fixtures and panels. All you need is a drill and an installation bit. Also known as knife-thread inserts.
Brass—Conductive and nonmagnetic, these inserts are useful for electrical applications. They resist moisture but aren't as strong as steel inserts.

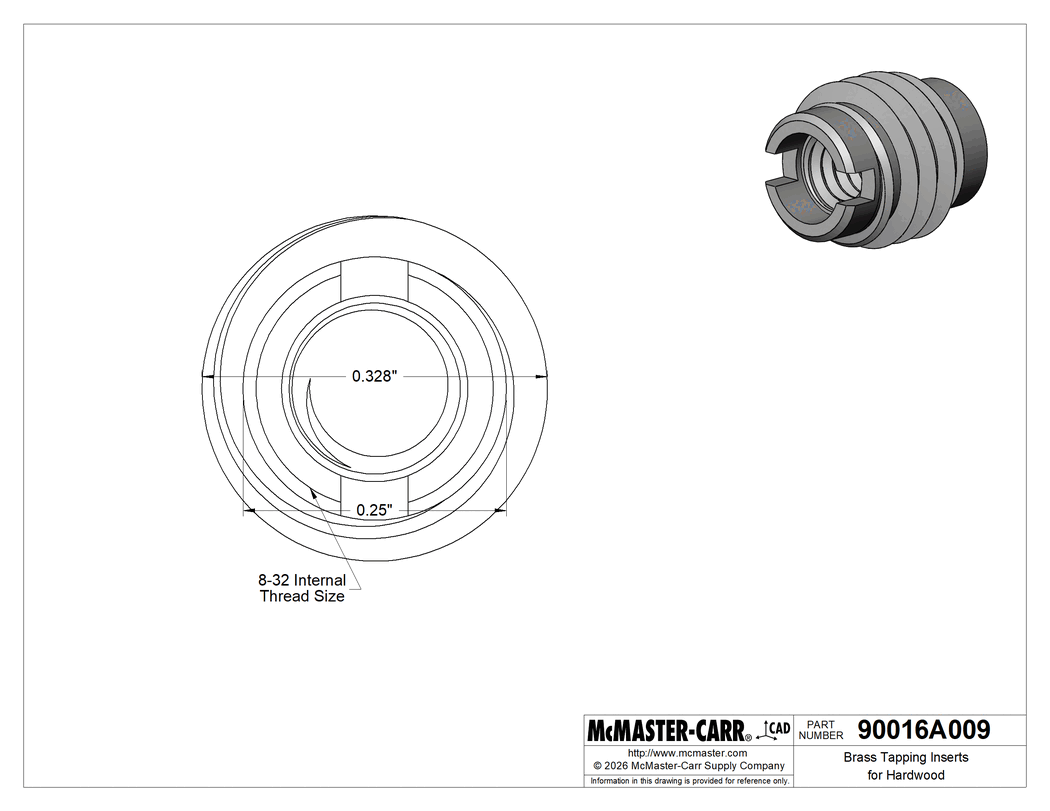

The information in this 3-D model is provided for reference only.
