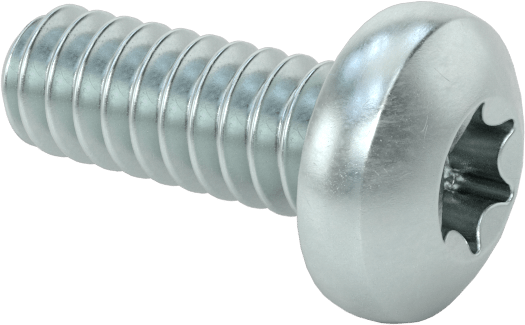

Zinc-Plated Steel Pan Head Torx Screws

6-32 Thread Size, 3/8" Long

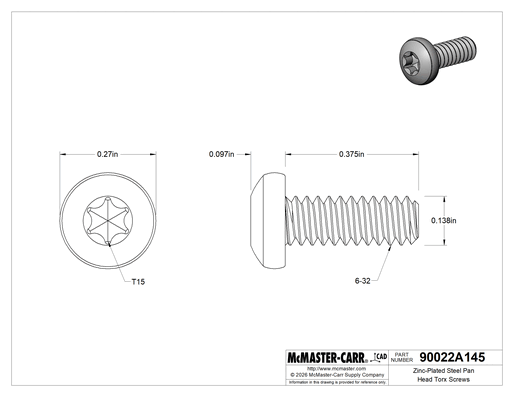

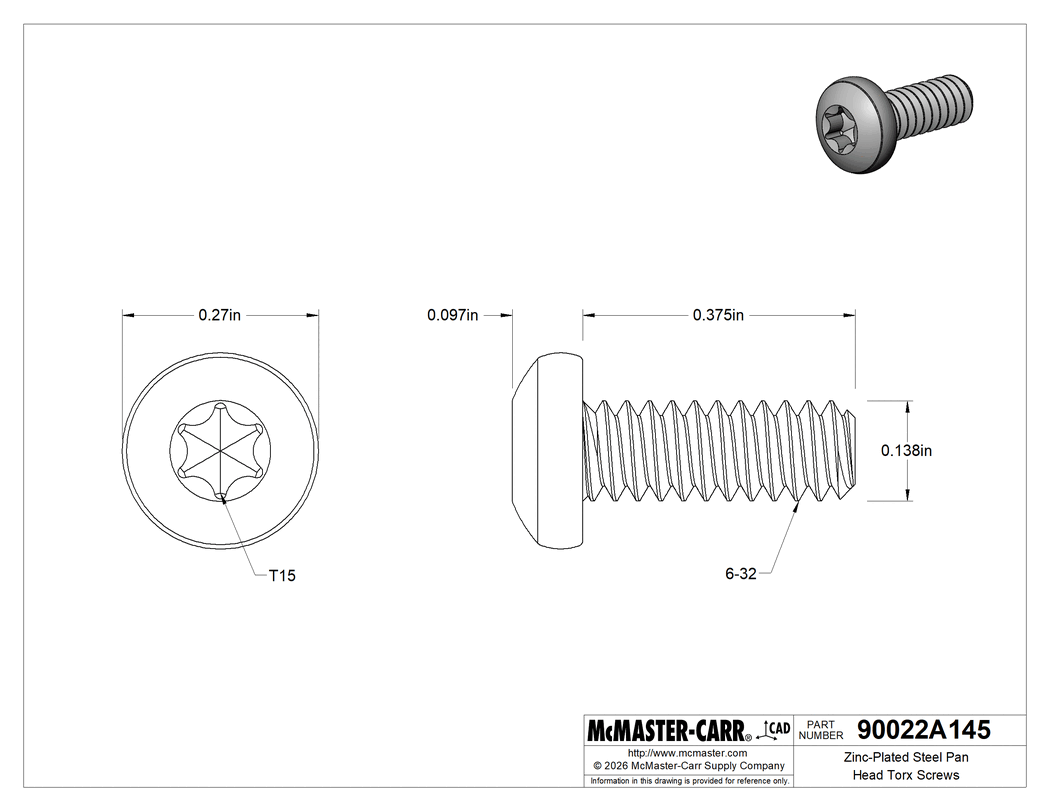

Technical Drawing of Zinc-Plated Steel Pan Head Torx Screws, 6-32 Thread Size, 3/8" Long.

Image of Product. Back orientation. Zinc-Plated Steel Pan Head Torx Screws, 6-32 Thread Size, 3/8" Long.

Image of Product. Side1 orientation. Contains SizingReference. Zinc-Plated Steel Pan Head Torx Screws, 6-32 Thread Size, 3/8" Long.

2-D PDF

00000 per pack of 100

90022A145

In stock

90022A145

00000 per pack of 100

QuantityPack of 100

In stock

Select a compatible file type: Parasolid

Learn more about our Solidworks Add-In

Thread
Size	6-32
Direction	Right Hand
Spacing	Coarse
Type	UNC
Fit	Unified Standard Class 2A
Tip Type	Flat
Fastener Head Type	Rounded
Head
Style	Pan
Profile	Standard
Height	0.097"
Diameter	0.27"
Drive
Style	Torx
Size	T15
Length	3/8"
Threading	Fully Threaded
Tensile Strength	Not Rated
Specifications Met	ASME B18.3
Hardness	Rockwell B70
Material	Zinc-Plated Steel
Screw Size Decimal Equivalent	0.138"
System of Measurement	Inch
Country of Origin	Taiwan
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

Get a grip with less slip. With a deep six-lobe opening, these screws prevent drivers from slipping and stripping drives. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.

Length is measured from under the head.

Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
