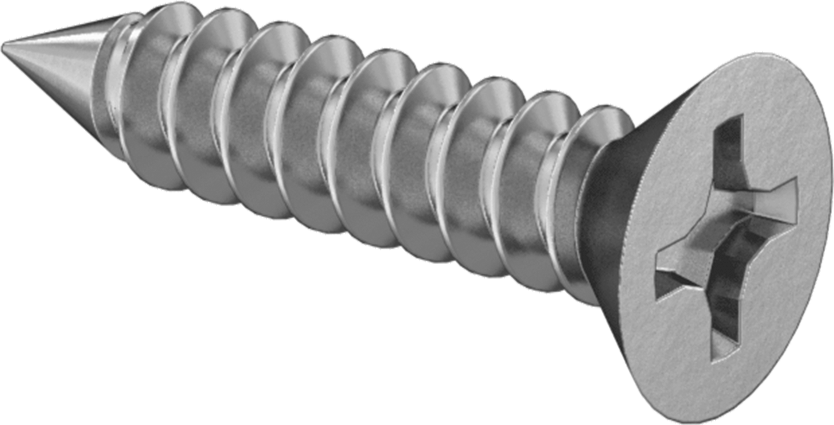

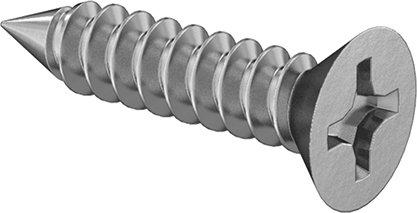

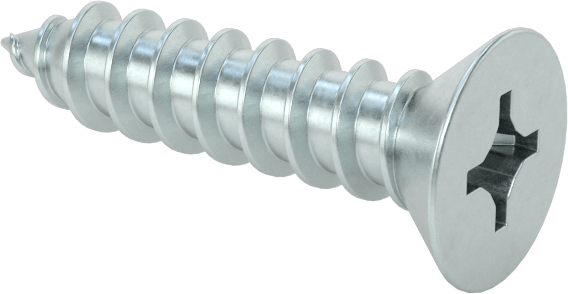

Zinc-Plated Steel Phillips Flat Head Screws
for Sheet Metal, Number 8 Size, 3/4" Long
Drive Style | Phillips |
Fastener Head Type | Flat |
Tip Type | Pointed |
Tapping Method | Thread Forming |
Material | Zinc-Plated Steel |
Screw Size | No. 8 |
Length | 3/4" |
Head | |
Diameter | 0.312" |
Height | 0.1" |
Tapping Screw Type | A, AB |
Drive Size | No. 2 |
Approximate Threads per Inch | 15 |
Countersink Angle | 82° |
Flat Head Profile | Standard |
Drill Bit Size | 29 Ga. |
Drill Bit Decimal Size Equivalent | 0.136" |
For Use In | Sheet Metal |
Maximum Drilling Thickness | 0.025" |
Performance | Self-Piercing |
Screw Size Decimal Equivalent | 0.164" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | China, Taiwan, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Fasten trim, brackets, and other objects with countersunk holes to sheet metal. The head of these screws is flat on top and beveled underneath to sit flush with surfaces. They have a pointed tip that starts a hole in sheets up to 0.025" thick, but for thicker material you’ll need to drill first. The Phillips drive handles enough torque to keep drivers from slipping.
Length is measured from the top of the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
Install

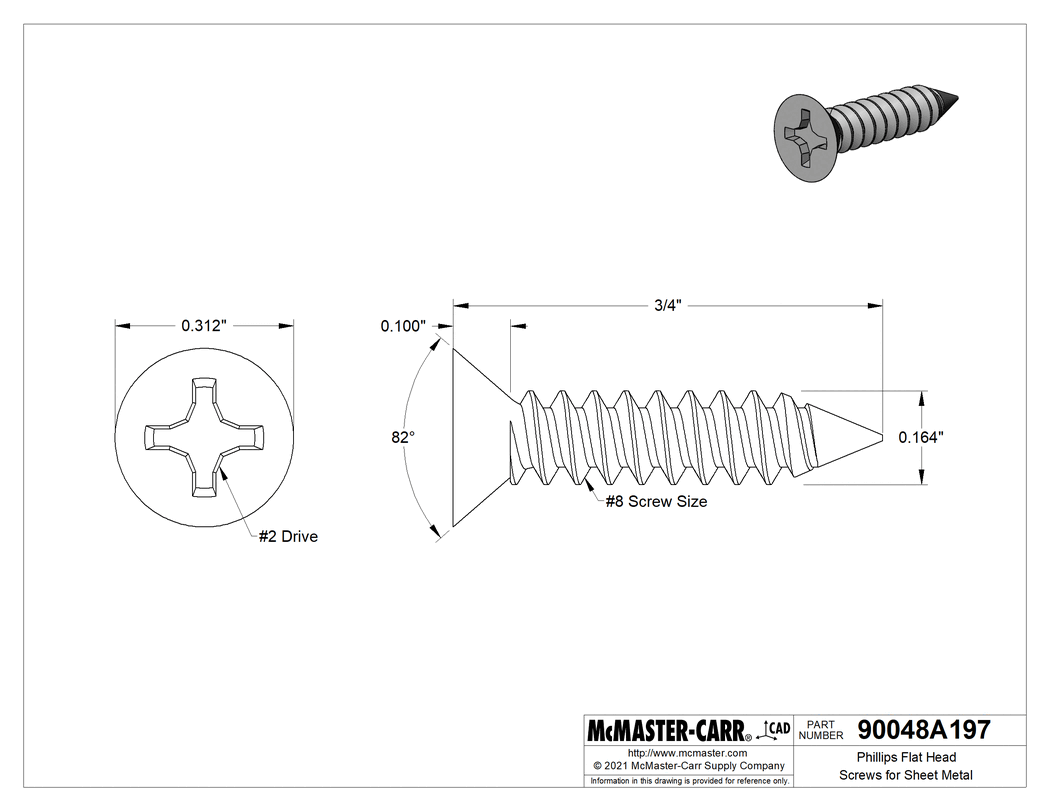

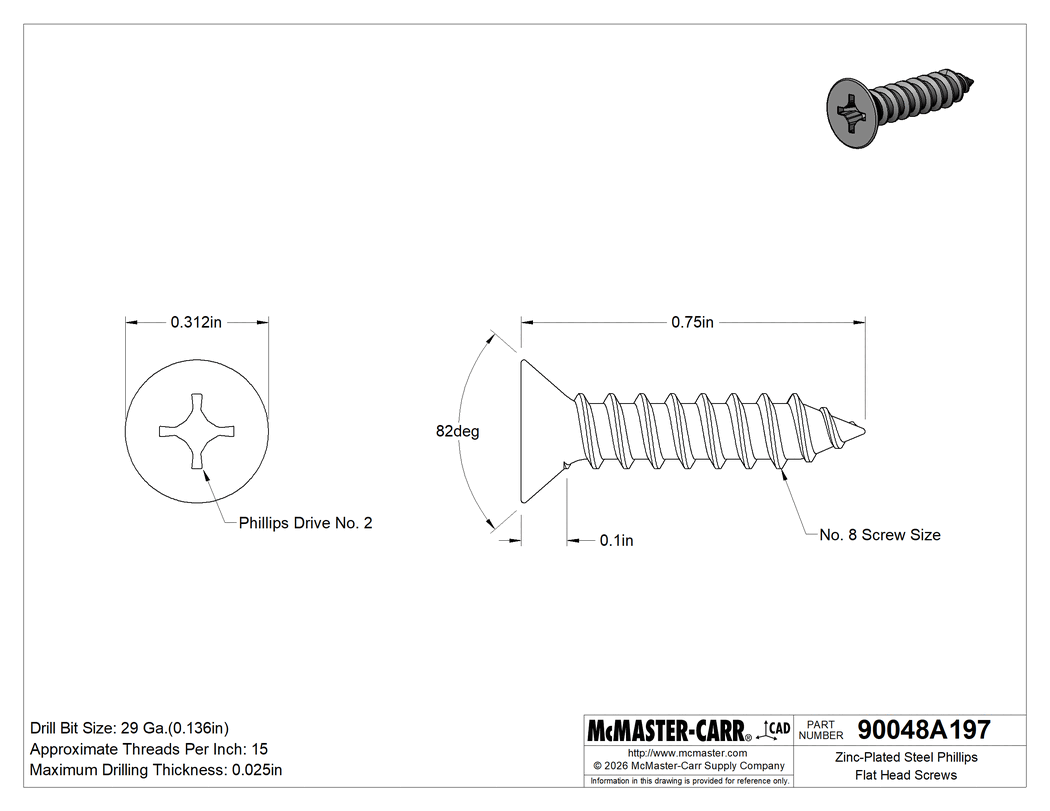

The information in this 3-D model is provided for reference only.
