    Flanged Hex Head Drilling Screw

    Zinc-Plated Steel, 1/4" Size, 2" Long

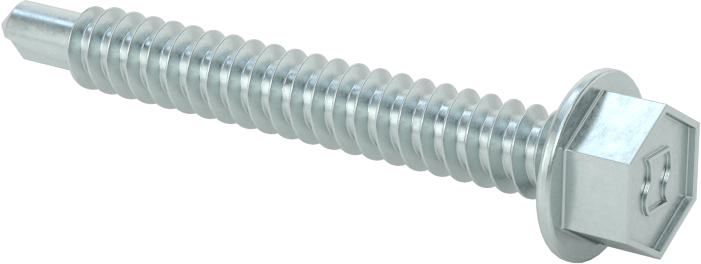

    Image of Product. Front orientation. Flanged Hex Head Drilling Screw, Zinc-Plated Steel, 1/4" Size, 2" Long.

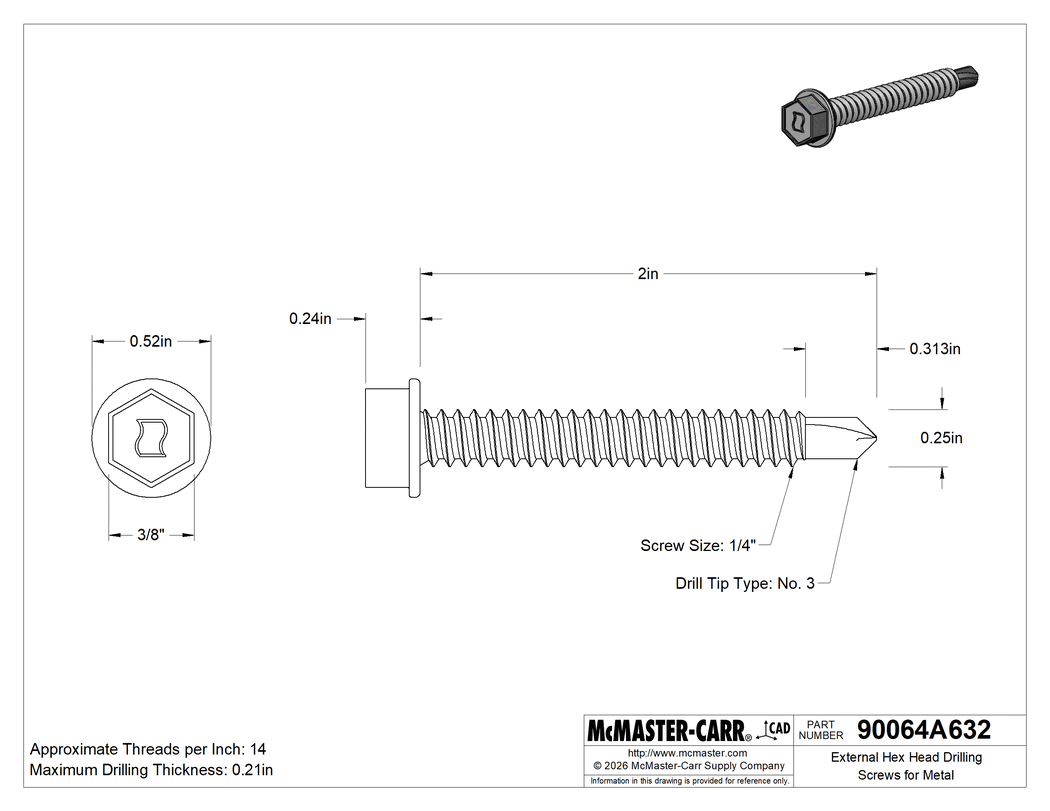

    Technical Drawing of Flanged Hex Head Drilling Screw, Zinc-Plated Steel, 1/4" Size, 2" Long.

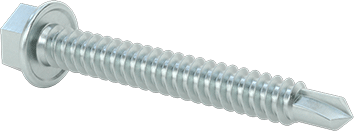

    Image of Product. Back orientation. Flanged Hex Head Drilling Screw, Zinc-Plated Steel, 1/4" Size, 2" Long.
    Image of Product. Side1 orientation. Contains SizingReference. Flanged Hex Head Drilling Screw, Zinc-Plated Steel, 1/4" Size, 2" Long.
    2-D PDF
    000000 per pack of 50
    90064A632
    In stock
    90064A632
    000000 per pack of 50
    Pack of 50
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Drive Style

    External Hex

    Fastener Head Type

    Hex/Flanged

    Drill Tip

    Point Size

    No. 3

    Length

    5/16"

    Type

    Drilling

    Tapping Method

    Thread Forming

    Material

    Zinc-Plated Steel

    Screw Size

    1/4"

    Length

    2"

    Head

    Width

    0.375"

    Height

    0.24"

    Flange Diameter

    0.520"

    Maximum Drilling Thickness

    0.210"

    Tapping Screw Type

    BSD

    Approximate Threads per Inch

    14

    For Use In

    Metal, Sheet Metal, Steel

    Screw Size Decimal Equivalent

    0.25"

    Shank Cross Section

    Round

    System of Measurement

    Inch

    Thread Direction

    Right Hand

    Threading

    Fully Threaded

    Country of Origin

    Taiwan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    731814.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Save time and effort with screws that drill and fasten in one step. The hex head gives you a firm, high-torque grip with a nutdriver or socket. Screws have a flange under the head that spreads the load to prevent crushing thin metal.

    Length is measured from under the flange. Head height includes the flange.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
