18-8 Stainless Steel Heavy-Profile Nylon-Insert Locknut
Corrosion-Resistant, 3/8"-16 Thread Size
Thread Direction | Right Hand |
Hex Nut Profile | Heavy |
Locking Type | Nylon Insert |
Finished Material | 18-8 Stainless Steel |
Thread Size | 3/8"-16 |
Width | 11/16" |
Height | 35/64" |
Insert Maximum Temperature | 250° F |
Drive Style | External Hex |
Nut Type | Hex, Locknut |
Performance | Vibration Resistant, Corrosion Resistant |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Coarse |
Thread Type | UNC |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
About 10% wider and taller than standard-profile locknuts, these handle heavier loads by distributing them over a larger area. The nylon insert grips the screw to prevent loosening from moderate vibration without damaging threads. However, the insert may become brittle if exposed to high temperatures. These locknuts are reusable a handful of times, but the holding power decreases with each use.
18-8 Stainless Steel—The choice for wet and outdoor environments, these locknuts resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.

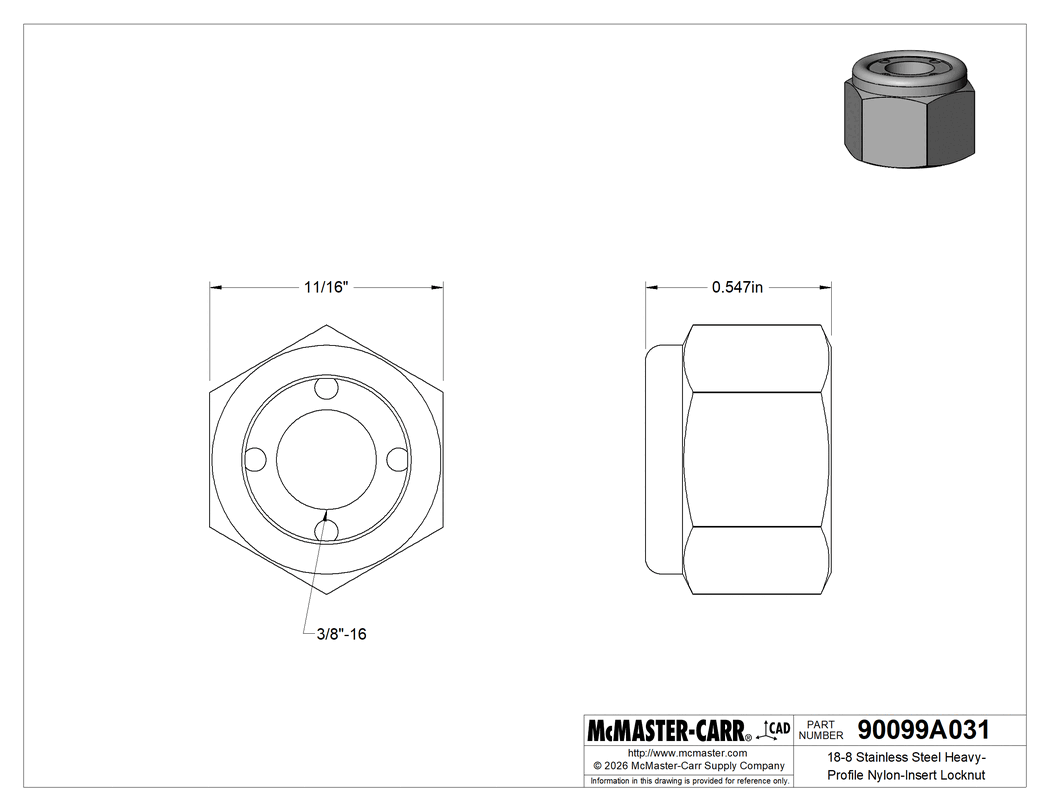

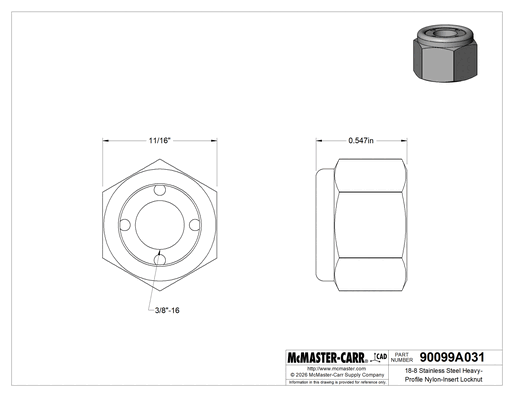

The information in this 3-D model is provided for reference only.
