    Zinc-Plated Steel SAE Washer

    Grade 5, for 5/8" Screw Size, 0.656" ID, 1.312" OD

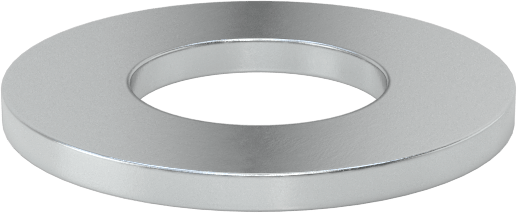

    Image of Product. Bottom orientation. Zinc-Plated Steel SAE Washer, Grade 5, for 5/8" Screw Size, 0.656" ID, 1.312" OD.

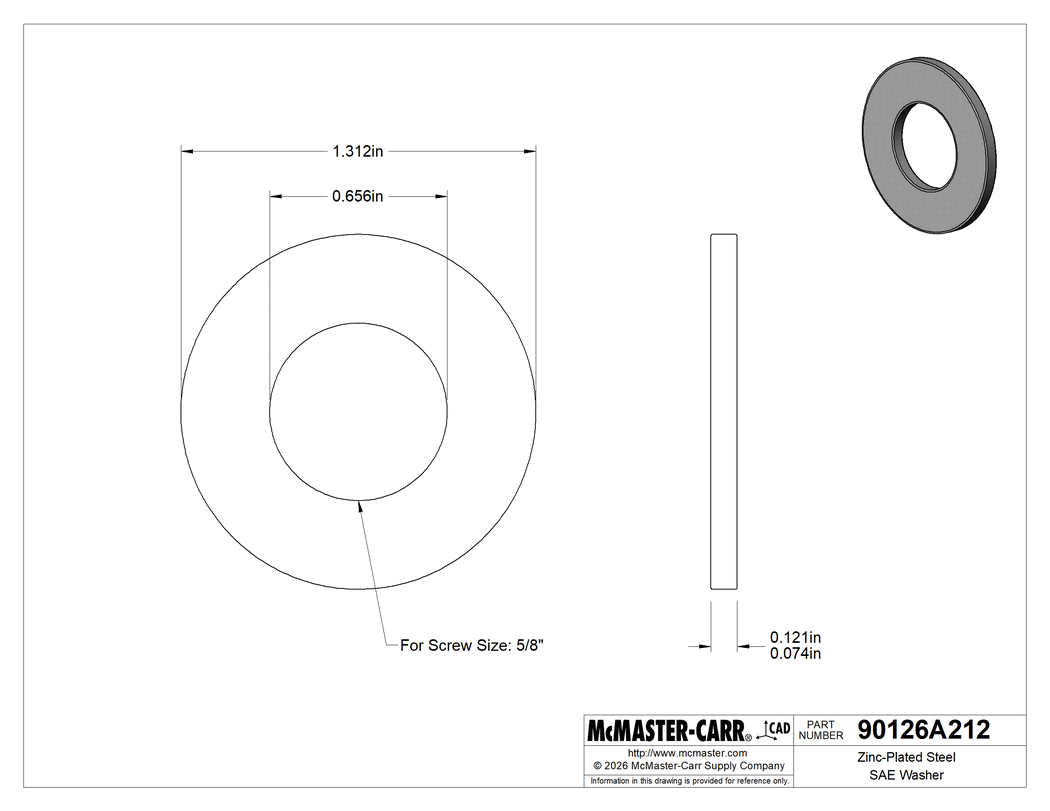

    Technical Drawing of Zinc-Plated Steel SAE Washer, Grade 5, for 5/8" Screw Size, 0.656" ID, 1.312" OD.
    Image of Product. Side1 orientation. Contains SizingReference. Zinc-Plated Steel SAE Washer, Grade 5, for 5/8" Screw Size, 0.656" ID, 1.312" OD.
    2-D PDF
    00000 per pack of 10
    90126A212
    In stock
    90126A212
    00000 per pack of 10
    Pack of 10
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Washer Designation

    SAE

    Material

    Zinc-Plated Steel

    For Screw Size

    5/8"

    ID

    0.656"

    OD

    1.312"

    Thickness

    0.074" to 0.121"

    For Fastener Strength Grade/Class

    SAE Grade 5

    Certificate Form

    Digital

    Certificate Type

    Material Certificate with Traceable Lot Number

    Fastener Strength Grade/Class

    SAE Grade 5

    Fastener Strength Rating

    Medium

    Hardness

    Not Rated

    System of Measurement

    Inch

    Washer Type

    Flat

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731822.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Originally designed for the automotive industry, these washers conform to SAE sizing standards. They generally have smaller diameters than USS washers to fit in cramped spots and are thinner to create more precise gaps. Washers distribute pressure under screws and nuts to protect your mounting surface.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

    Material Certificate—Washers include a report with a traceable lot number.

    Medium Strength Fastener—Rated Grade 5 or Class 8.8, these washers can be paired with medium-strength steel nuts and bolts without deforming. They are strong enough for most industrial applications, such as anchoring machinery and connecting pipe flanges.

    For Fastener Strength Grade/Class—If you require screws or nuts with a specific fastener strength rating, make sure your washer matches the grade or class.
