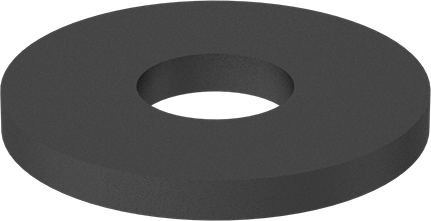

Neoprene Rubber Sealing Washers
for Number 14 Screw Size, 0.625" OD, 0.046" to 0.078" Thick
For Screw Size | No. 14 |
ID | 0.230" |
OD | 0.625" |
Thickness | 0.046" to 0.078" |
Temperature Range | |
Minimum | -20° F |
Maximum | 180° F |
Color | Black |
Application | Sealing |
Construction | One Piece |
Environment | Dusty, Outdoor, Wet |
Hardness | Durometer 55A |
Material | Neoprene |
Performance | Reusable, Weather Resistant |
System of Measurement | Inch |
Washer Type | Flat |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 401693.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Prevent leaks while distributing weight evenly under nuts and screws. These washers compress as you tighten to keep air and fluid in, and dust and contaminants out. Use them anywhere you need a tight seal, such as protecting electronics from moisture or keeping lubricants contained in machinery.
Rubber—Resist leaks better than metal sealing washers, but are more susceptible to wear and tear. Reuse these washers a handful of times, as long as the material isn't damaged.
Neoprene—If you're not sure which material best suits your needs, these versatile washers are a great solution. They offer a good balance of strength and flexibility to hold a tight seal, even in wet and outdoor conditions. These washers also withstand salt water and mild chemicals, such as detergents. However, they don't resist oil, grease, or fuel as well as Buna-N washers.
