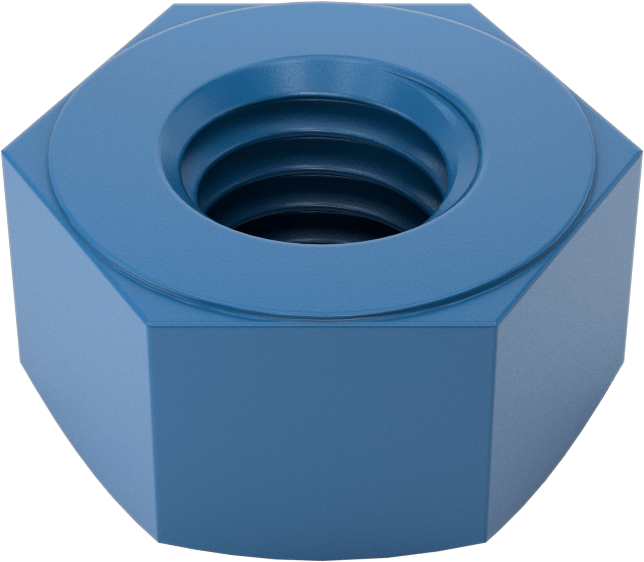

Blue PTFE-Coated Steel Heavy-Profile Hex Nut
1/2"-13 Thread Size
Hex Nut Profile | Heavy |
Fastener Strength Rating | Extreme |
Color | Blue |
Material | PTFE-Coated Steel |
Thread Size | 1/2"-13 |
Width | 7/8" |
Height | 31/64" |
Fastener Strength Grade/Class | ASTM Grade 2H |
Specifications Met | ASTM A194 |
Drive Style | External Hex |
Nut Type | Hex |
Performance | High Pressure, Seize Resistant |
System of Measurement | Inch |
Thread Direction | Right Hand |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Coarse |
Thread Type | UNC |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
About 10% wider and taller than standard-profile hex nuts, these handle heavier loads by distributing them over a larger area.
These nuts are hardened, so they maintain their strength under high pressure and temperature. Pair them with ASTM A193 screws to fasten critical components, such as valves and flanges, in pressure tanks, boilers, and heat exchangers. About 10% wider and taller than standard-profile hex nuts, these handle heavier loads by distributing them over a larger area.
Extreme-Strength Steel—These nuts are about 20% stronger than high-strength steel nuts. To avoid stripped threads during installation, make sure your screw has a comparable strength rating.
PTFE-Coated Steel—A slippery PTFE coating prevents these nuts from becoming stuck during installation. They resist rust in wet and outdoor environments, however they're not recommended for prolonged exposure since the coating can wear off.
Fasten

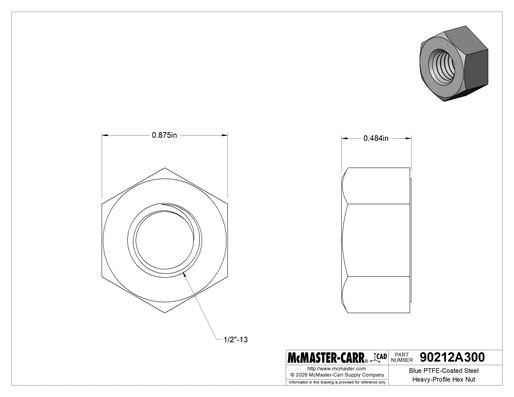

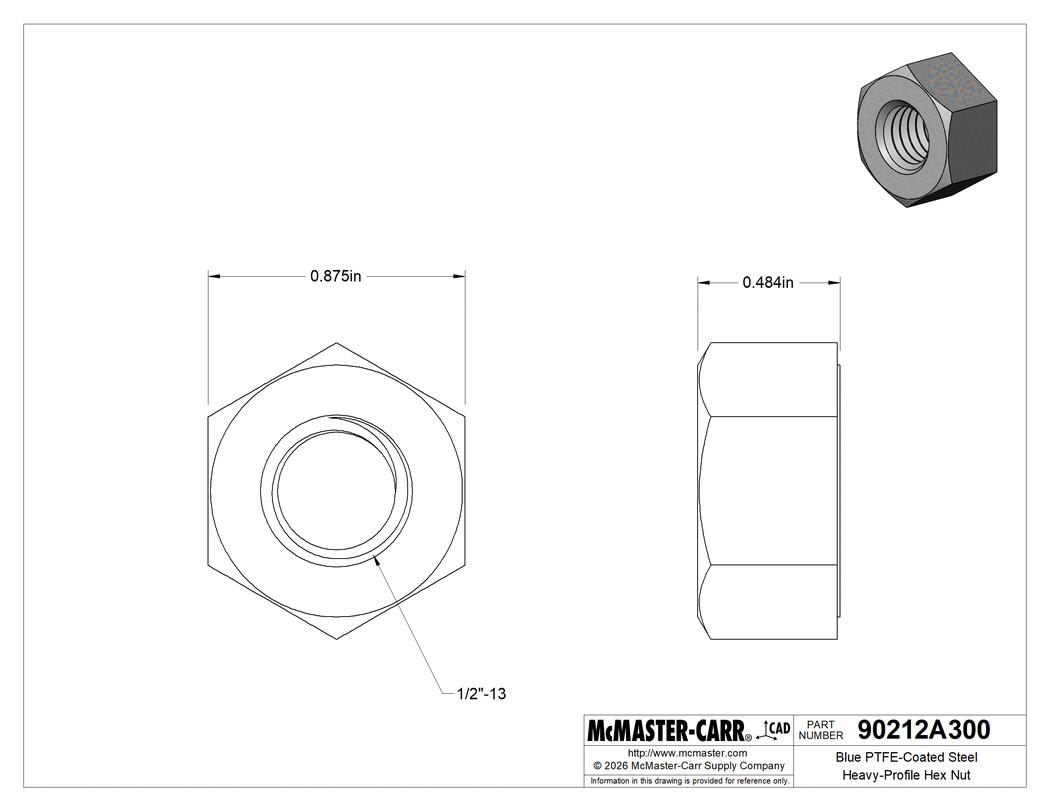

The information in this 3-D model is provided for reference only.
