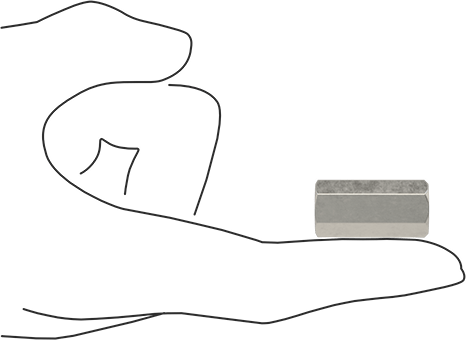

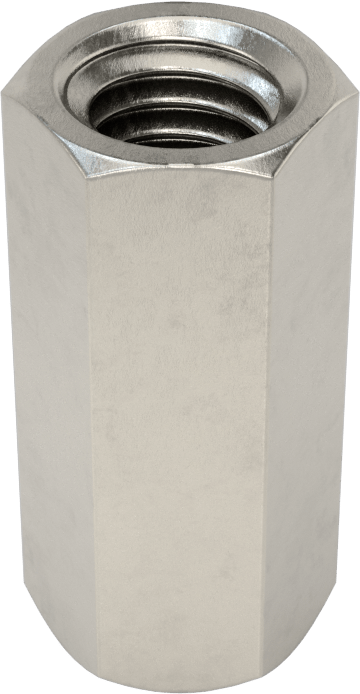

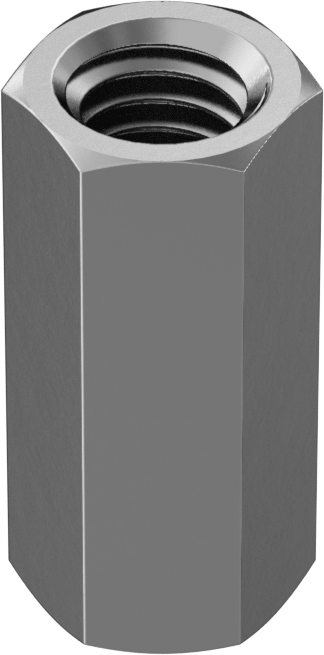

18-8 Stainless Steel Coupling Nut
3/8"-16 Thread Size, 1-1/8" Long

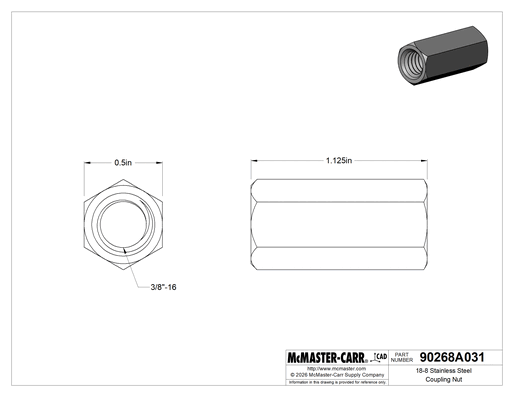

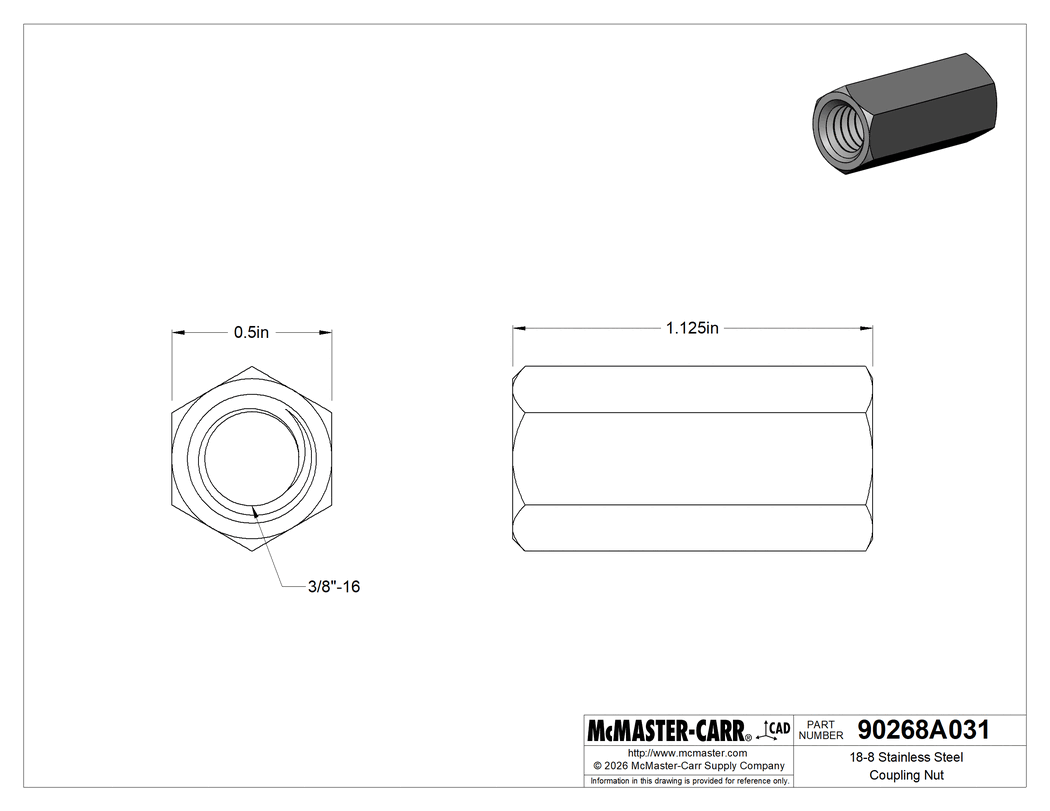

2-D PDF
00000 each
90268A031
In stock
90268A031
1-9 each00000
10-49 each00000
50 or more00000
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Thread Direction | Right Hand |
Material | 18-8 Stainless Steel |
Thread Size | 3/8"-16 |
Length | 1 1/8" |
Width | 1/2" |
Threading | Fully Threaded |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Coupling Nut Profile | Standard |
Drive Style | External Hex |
Nut Type | Hex, Coupling |
Performance | Corrosion Resistant |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2B |
Thread Spacing | Coarse |
Thread Type | UNC |
Country of Origin | China, Philippines, Taiwan, United Arab Emirates |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731816.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Also known as extension nuts, these are commonly used to connect lengths of threaded rod and join threaded parts.
18-8 Stainless Steel—The choice for wet and outdoor environments, these nuts resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.
Compatible Products for This Coupling Nut
Secure connection
Resist loosening
